2006 YOU JI YV1200ATC+C
Have one to sell?
ConditionUsed
1 available

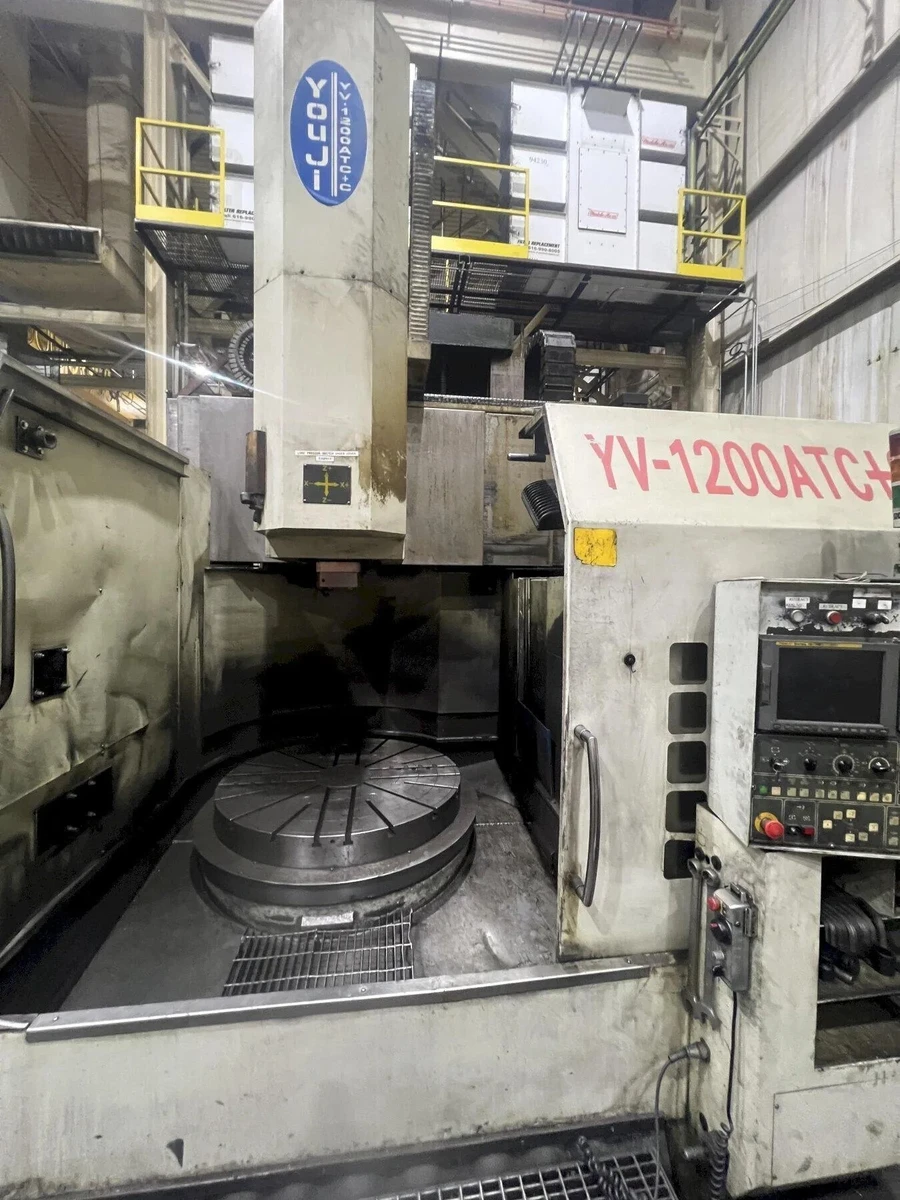

2006 Youji YV-1200ATC+C CNC VTL with Live Tooling with Fanuc 18i-TB Control, 49" Manual 4-Jaw Chuck/Table, 16 Position ATC, and Live Milling
TABLE DIAMETER...................49.21"
MAXIMUM SWING....................63"
MAXIMUM TURNING DIAMETER.........53.15"
MAXIMUM TURNING HEIGHT...........47.24"
MAXIMUM TABLE LOAD...............11,023 LBS
X-AXIS TRAVEL....................54.13"
Z-AXIS TRAVEL....................35.43"
CROSSRAIL VERTICAL TRAVEL........31.56"
SPINDLE SPEED - LOW..............2-108 RPM
SPINDLE SPEED - HIGH.............108-350 RPM
MAIN SPINDLE MOTOR...............50/60 HP
C-AXIS INDEXING..................0.001 DEGREE
LIVE TOOLING.....................YES
LIVE TOOL SPINDLE SPEED..........2,400 RPM
LIVE TOOL MOTOR..................10/15 HP
TOOL HOLDER TAPER................BT-50
AUTOMATIC TOOL CHANGER...........16 POSITIONS
ELECTRICAL.......................220V / 3 PH / 60 HZ
MACHINE WEIGHT...................50,706 LBS

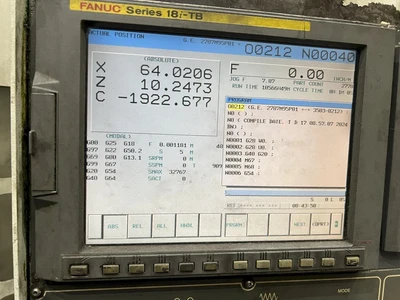

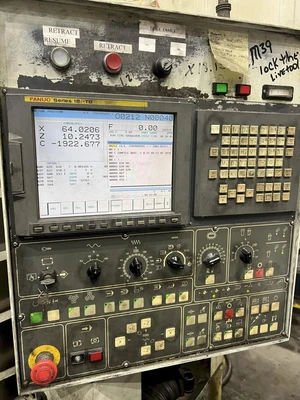

Fanuc 18i-TB CNC Control

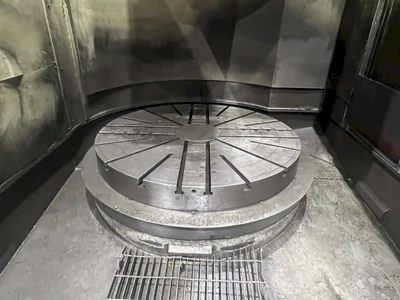

49" Manual 4-Jaw Table/Chuck
16 Position ATC
Live Milling Capacilities
Misc. Tooling Included
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2006 Youji YV-1200ATC+C CNC VTL with Live Tooling with Fanuc 18i-TB Control, 49" Manual 4-Jaw Chuck/Table, 16 Position ATC, and Live Milling
Imperial
| Table Dia | 49.1" |
| Swing | 63" |
| Work Ht-U/R | 47.24" |
| Power | 60 hp |
| RPM | 350 RPM |
| Control | CNC (Fanuc 18i-TB) |
| Weight | 50,706 LBS |
TABLE DIAMETER...................49.21"
MAXIMUM SWING....................63"
MAXIMUM TURNING DIAMETER.........53.15"
MAXIMUM TURNING HEIGHT...........47.24"
MAXIMUM TABLE LOAD...............11,023 LBS
X-AXIS TRAVEL....................54.13"
Z-AXIS TRAVEL....................35.43"
CROSSRAIL VERTICAL TRAVEL........31.56"
SPINDLE SPEED - LOW..............2-108 RPM
SPINDLE SPEED - HIGH.............108-350 RPM
MAIN SPINDLE MOTOR...............50/60 HP
C-AXIS INDEXING..................0.001 DEGREE
LIVE TOOLING.....................YES
LIVE TOOL SPINDLE SPEED..........2,400 RPM
LIVE TOOL MOTOR..................10/15 HP
TOOL HOLDER TAPER................BT-50
AUTOMATIC TOOL CHANGER...........16 POSITIONS
ELECTRICAL.......................220V / 3 PH / 60 HZ
MACHINE WEIGHT...................50,706 LBS
Fanuc 18i-TB CNC Control
49" Manual 4-Jaw Table/Chuck
16 Position ATC
Live Milling Capacilities
Misc. Tooling Included
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
