2017 MAZAK HYPER QUADREX 250MSY
Have one to sell?
ConditionUsed
1 available

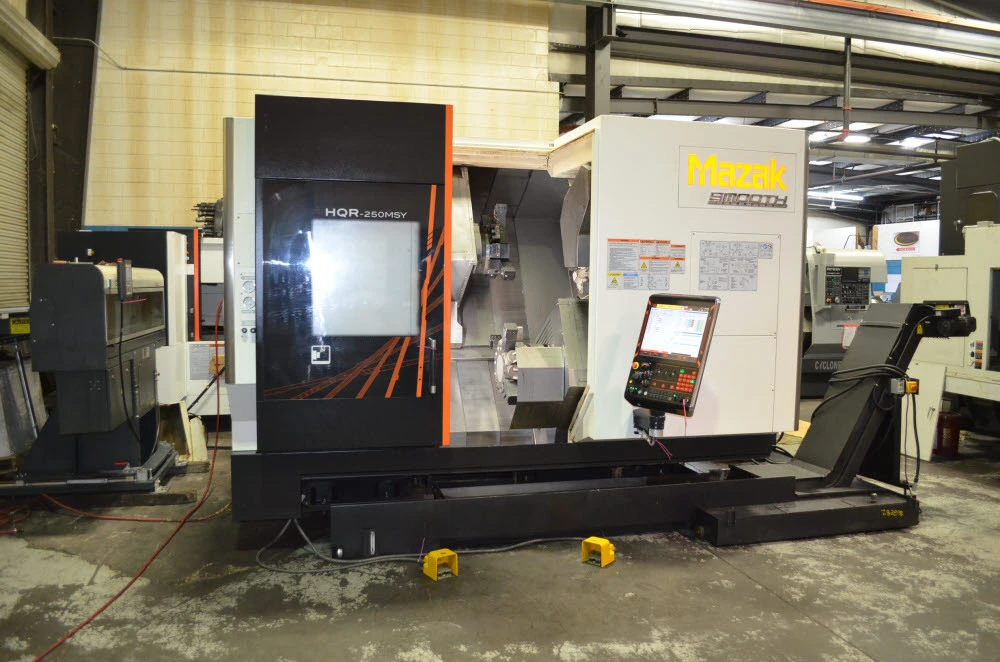

Mazak HyperQuadrex 250MSY Multi Axis Turning Center
Maximum Swing Over Upper Turret............. 14.57"
Maximum Swing Over Lower Turret............. 12.6"
Maximum Machining Diameter: Chucking........ 13.54"(Upper)
Maximum Machining Diameter: Chucking........ 8.7"(Lower)
Maximum Machining Length.................... 33.9"
Maximum Distance Between Chuck Jaws......... 33.86"
MAIN SPINDLE SPECIFICATIONS (L): Preparation ONLY for BB210 10” 3-Jaw or Collet Chuck
Spindle Nose................................ A2-8
Spindle Bore................................ 3.58"
Maximum Bar Work............................ 3.15"
NOTE: Maximum bar work and maximum spindle speed depends upon optional chuck package.
Spindle Speed............................... 35-4,000 RPM
Spindle Index (Programmable)................ 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.).......... 30/35 HP (AC)
Spindle Torque (30 Min.).................... 369 ft-lbs.

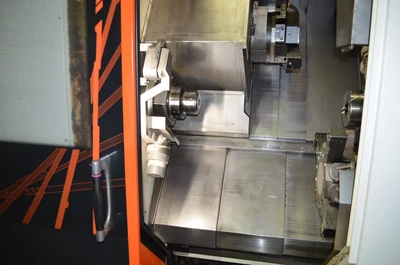

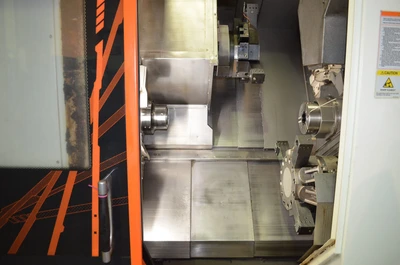

SECOND SPINDLE SPECIFICATIONS (R) 8” BB08 Chuck Package with Kitagawa Y1225RE47 Non-thru hole cylinder
Spindle Nose................................ A2-6
Spindle Bore................................ 2.99"
Spindle Speed............................... 35-5,000 RPM
Spindle Index (Programmable)................ 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.).......... 20/30 HP (AC)
Spindle Torque (25% ED)..................... 344 ft-lbs.

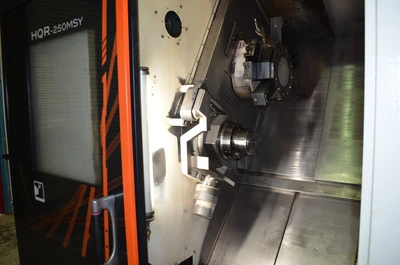

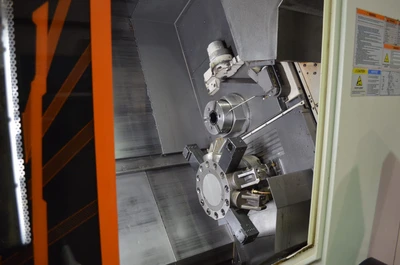

UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.............................. 12 pos. Drum VDI
Tool Shank Height........................... 1"
Tool Size (Boring Bar Max. Dia.)............ 1.5"
Total Number of Tools....................... 12
Tool Selection Method....................... Bi-Directional
Tool Index Time (1 Step).................... 0.2 sec.
Rotary Tool Spindle Speed................... 35-6,000 RPM
Rotary Tool Spindle Horsepower/(10 min)..... 7.5 HP
Rotary Tool Torque (3 min.)................. 25.8 ft-lbs
Maximum End Mill............................ 0.75" Dia.
Maximum Drill............................... 0.75" Dia.
Maximum Tap................................. M20 x 2.5
AXIS TRAVELS:
X1-Axis..................................... 8.2"
Y1-Axis..................................... +/-2.0"
Z1-Axis..................................... 29.875"
X2-Axis Lower............................... 5.5625"
Y2-Axis Lower............................... +0.75"/-2.0"
Z2-Axis Lower............................... 32.125"
W-Axis...................................... 34.075"
AXIS RAPID RATES:
X1-Axis..................................... 1181 IPM
Y1-Axis..................................... 1024 IPM
Z1-Axis..................................... 1417 IPM
X2-Axis Lower............................... 945 IPM
Y2-Axis Lower............................... 787 IPM
Z2-Axis Lower............................... 1417 IPM
W-Axis...................................... 1181 IPM
C1/C2-Axis.................................. 400 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL)........................... 142.72" x 110.67"
Machine Height.............................. 98.54"
Total Power Required (Machine Only)......... 71.3 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will be Greater.
Air Requirements............................ 72.5 PSI / 17.7 CFM
Machine Weight.............................. 28,439 lbs.

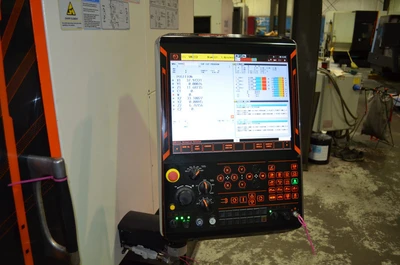

MAZATROL SMOOTH G CNC Control
19" COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
USER MACRO (COMMON VARIABLES:600 PAIRS)
MAZAK TAPPING/BORING TORNADO (G130)
EIA/ISO CODE INPUT FUNCTION (STANDARD)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
THREAD CUTTING FUNCTION (G33)
POLAR COORDINATES INPUT (G122)(EIA)
B)CYLINDRICAL (G07) & POLAR COORDINATE (G12)(EIA)
MILLING-SPINDLE SYNCHRONOUS TAPPING
MAZACC-2D SOFTWARE(SHAPE COMPENSATION)(G61.1)
RAPID OVERLAP
SEAMLESS CORNER CONTROL
VARIABLE ACCELERATION CONTROL
INCH/METRIC CONVERSION
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
LAN PORT
USB I/F (1-PORT)
BACKGROUND TOOL PATH CHECK
INTELLIGENT SAFETY SHIELD (MANUAL OPERATION)
Y-AXIS CONTROL (UPPER & LOWER TURRET)
MAIN & SUB SPINDLE SYNCHRONIZATION
RELOCATION DEVICE
CHUCK AIR BLAST (SECOND SPINDLE)
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
TOOL EYE (AUTOMATIC,1ST/2ND SPINDLES)
Parts Catcher with Side Exit Conveyor
Chip Conveyor

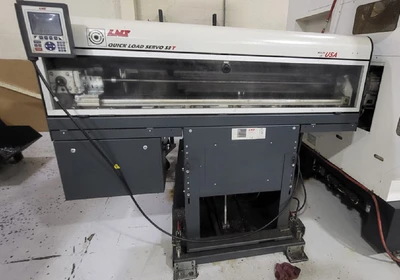

LNS Quick Load Servo S3T Barfeed
(5) Live Holders

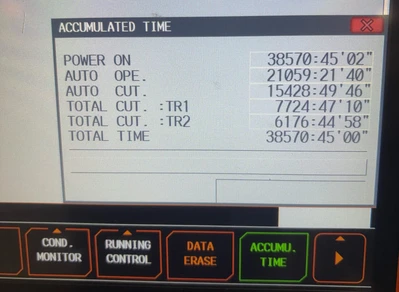

HOURS:
Power on Time.............38,570
Auto Ope..................21,059
Auto Cut..................15,428
Turret 1 Cutting Time.....7,724
Turret 2 Cutting Time.....6,176
Total Time................38,570
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Mazak HyperQuadrex 250MSY Multi Axis Turning Center
Imperial
| Swing | 14.567" |
| Machining Length | 13.543" |
| Chuck Size | 9.8425" |
| Bar Capacity | 2.5591" |
| Power | 34.9 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 8.2677" |
Maximum Swing Over Upper Turret............. 14.57"
Maximum Swing Over Lower Turret............. 12.6"
Maximum Machining Diameter: Chucking........ 13.54"(Upper)
Maximum Machining Diameter: Chucking........ 8.7"(Lower)
Maximum Machining Length.................... 33.9"
Maximum Distance Between Chuck Jaws......... 33.86"
MAIN SPINDLE SPECIFICATIONS (L): Preparation ONLY for BB210 10” 3-Jaw or Collet Chuck
Spindle Nose................................ A2-8
Spindle Bore................................ 3.58"
Maximum Bar Work............................ 3.15"
NOTE: Maximum bar work and maximum spindle speed depends upon optional chuck package.
Spindle Speed............................... 35-4,000 RPM
Spindle Index (Programmable)................ 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.).......... 30/35 HP (AC)
Spindle Torque (30 Min.).................... 369 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R) 8” BB08 Chuck Package with Kitagawa Y1225RE47 Non-thru hole cylinder
Spindle Nose................................ A2-6
Spindle Bore................................ 2.99"
Spindle Speed............................... 35-5,000 RPM
Spindle Index (Programmable)................ 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.).......... 20/30 HP (AC)
Spindle Torque (25% ED)..................... 344 ft-lbs.
UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.............................. 12 pos. Drum VDI
Tool Shank Height........................... 1"
Tool Size (Boring Bar Max. Dia.)............ 1.5"
Total Number of Tools....................... 12
Tool Selection Method....................... Bi-Directional
Tool Index Time (1 Step).................... 0.2 sec.
Rotary Tool Spindle Speed................... 35-6,000 RPM
Rotary Tool Spindle Horsepower/(10 min)..... 7.5 HP
Rotary Tool Torque (3 min.)................. 25.8 ft-lbs
Maximum End Mill............................ 0.75" Dia.
Maximum Drill............................... 0.75" Dia.
Maximum Tap................................. M20 x 2.5
AXIS TRAVELS:
X1-Axis..................................... 8.2"
Y1-Axis..................................... +/-2.0"
Z1-Axis..................................... 29.875"
X2-Axis Lower............................... 5.5625"
Y2-Axis Lower............................... +0.75"/-2.0"
Z2-Axis Lower............................... 32.125"
W-Axis...................................... 34.075"
AXIS RAPID RATES:
X1-Axis..................................... 1181 IPM
Y1-Axis..................................... 1024 IPM
Z1-Axis..................................... 1417 IPM
X2-Axis Lower............................... 945 IPM
Y2-Axis Lower............................... 787 IPM
Z2-Axis Lower............................... 1417 IPM
W-Axis...................................... 1181 IPM
C1/C2-Axis.................................. 400 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL)........................... 142.72" x 110.67"
Machine Height.............................. 98.54"
Total Power Required (Machine Only)......... 71.3 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will be Greater.
Air Requirements............................ 72.5 PSI / 17.7 CFM
Machine Weight.............................. 28,439 lbs.
MAZATROL SMOOTH G CNC Control
19" COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
USER MACRO (COMMON VARIABLES:600 PAIRS)
MAZAK TAPPING/BORING TORNADO (G130)
EIA/ISO CODE INPUT FUNCTION (STANDARD)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
THREAD CUTTING FUNCTION (G33)
POLAR COORDINATES INPUT (G122)(EIA)
B)CYLINDRICAL (G07) & POLAR COORDINATE (G12)(EIA)
MILLING-SPINDLE SYNCHRONOUS TAPPING
MAZACC-2D SOFTWARE(SHAPE COMPENSATION)(G61.1)
RAPID OVERLAP
SEAMLESS CORNER CONTROL
VARIABLE ACCELERATION CONTROL
INCH/METRIC CONVERSION
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
LAN PORT
USB I/F (1-PORT)
BACKGROUND TOOL PATH CHECK
INTELLIGENT SAFETY SHIELD (MANUAL OPERATION)
Y-AXIS CONTROL (UPPER & LOWER TURRET)
MAIN & SUB SPINDLE SYNCHRONIZATION
RELOCATION DEVICE
CHUCK AIR BLAST (SECOND SPINDLE)
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
TOOL EYE (AUTOMATIC,1ST/2ND SPINDLES)
Parts Catcher with Side Exit Conveyor
Chip Conveyor
LNS Quick Load Servo S3T Barfeed
(5) Live Holders
HOURS:
Power on Time.............38,570
Auto Ope..................21,059
Auto Cut..................15,428
Turret 1 Cutting Time.....7,724
Turret 2 Cutting Time.....6,176
Total Time................38,570
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
