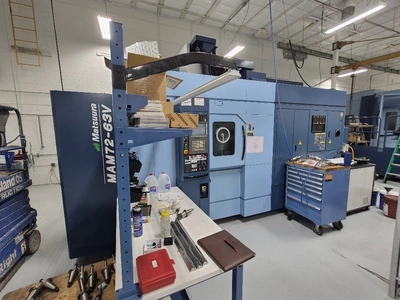

Matsuura MAM72-63V 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

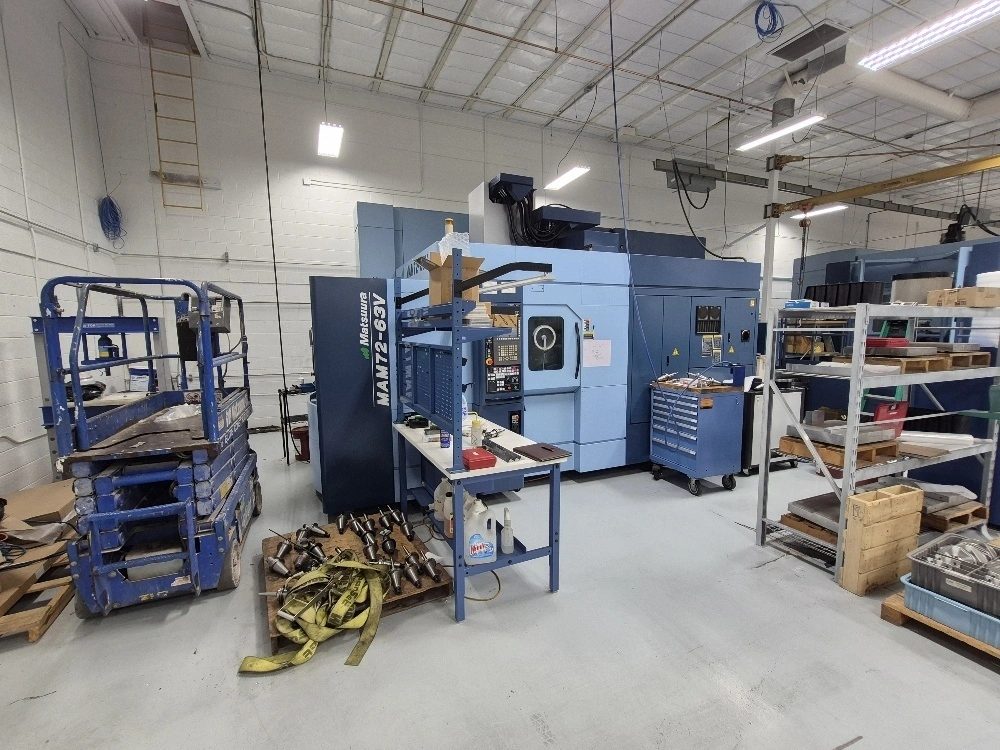

2012 Matsuura MAM72-63V 5-Axis Vertical Machining Center with G-tech 30i Control, 2 Pallets, 10,000 RPM, CAT-50 Spindle, 150 ATC, Renishaw Probe, CoolJet HP Coolant, Chiller, and Low Hours.

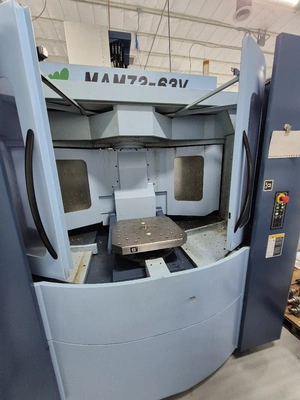

Number of Pallets......................2
Pallet Surface.........................19.68" x 19.68"
Max Workpiece Diameter.................28.34"
Max Workpiece Height...................17.71"
Max Weight on Table....................770 lbs
X-Axis Travel..........................29.92"
Y-Axis Travel..........................33.26"
Z-Axis Travel..........................25.98"

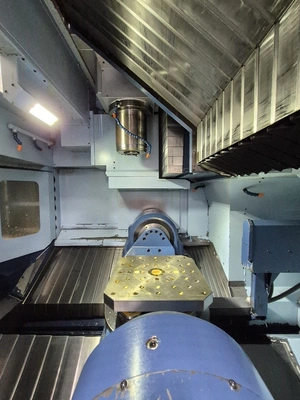

A-Axis Travel..........................40° (+120°/– 120°) ( Table Tilt )
C-Axis Travel..........................360° ( Table Rotate )
Spindle Motor..........................30 HP
Spindle Taper..........................CAT-50
Spindle Speed..........................10,000 RPM
Rapid Traverse Rates X, Y, Z...........1968 IPM
Number of Tools........................150 ATC (135)
Max Tool Diameter......................3.77"
Max Tool Length........................13.77"
Max Tool Weight........................22 lbs

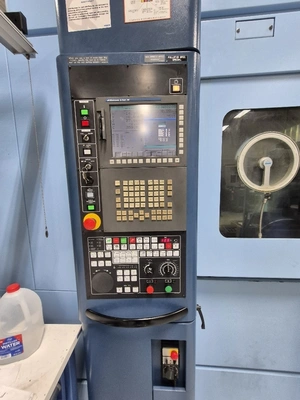

G-Tech 30i CNC Control
2-Pallets
10,000 RPM, CAT-50 Spindle

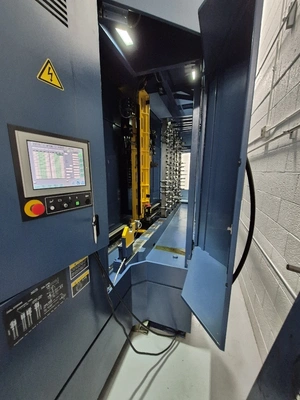

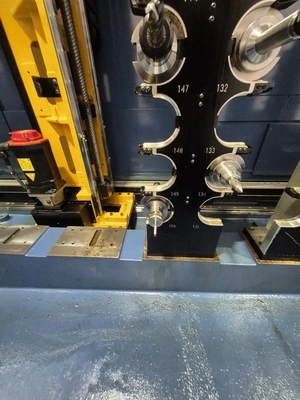

150 Station ATC
Renishaw Probe
Cooljet HP Coolant

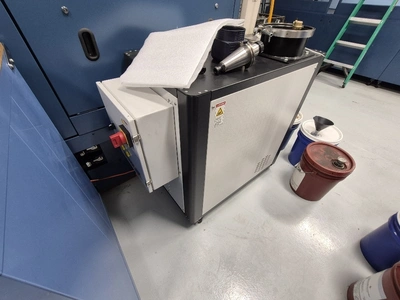

Oilmatic C1500 Chiller

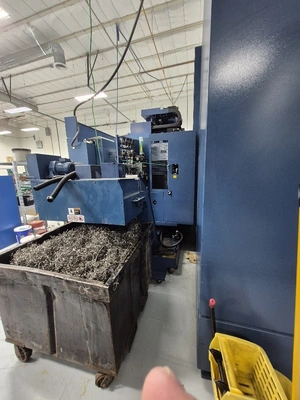

LNS Turbo HB Chip Conveyor

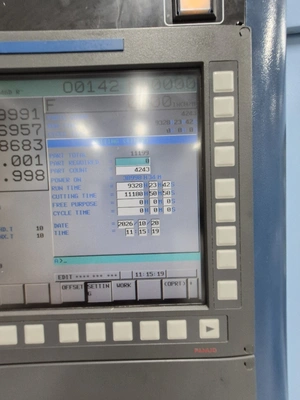

HOURS:
Power on Time............38,998
Run Time.................9,328
Cutting Time.............11,180
**15 POSITIONS (1 RACK) IN ATC NOT OPERATIONAL**
**PICTURED TOOLING NOT INCLUDED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2012 Matsuura MAM72-63V 5-Axis Vertical Machining Center with G-tech 30i Control, 2 Pallets, 10,000 RPM, CAT-50 Spindle, 150 ATC, Renishaw Probe, CoolJet HP Coolant, Chiller, and Low Hours.
Imperial
| X | 29.92" |
| Y | 33.26" |
| Z | 25.98" |
| # Axis | 5 |
| Power | 0 hp |
| RPM | 10,000 RPM |
| # ATC | 150 |
| Taper | CAT-50 |
| Control | CNC (Fanuc Matsuura Gtech 30i CNC Control) |
Number of Pallets......................2
Pallet Surface.........................19.68" x 19.68"
Max Workpiece Diameter.................28.34"
Max Workpiece Height...................17.71"
Max Weight on Table....................770 lbs
X-Axis Travel..........................29.92"
Y-Axis Travel..........................33.26"
Z-Axis Travel..........................25.98"
A-Axis Travel..........................40° (+120°/– 120°) ( Table Tilt )
C-Axis Travel..........................360° ( Table Rotate )
Spindle Motor..........................30 HP
Spindle Taper..........................CAT-50
Spindle Speed..........................10,000 RPM
Rapid Traverse Rates X, Y, Z...........1968 IPM
Number of Tools........................150 ATC (135)
Max Tool Diameter......................3.77"
Max Tool Length........................13.77"
Max Tool Weight........................22 lbs
G-Tech 30i CNC Control
2-Pallets
10,000 RPM, CAT-50 Spindle
150 Station ATC
Renishaw Probe
Cooljet HP Coolant
Oilmatic C1500 Chiller
LNS Turbo HB Chip Conveyor
HOURS:
Power on Time............38,998
Run Time.................9,328
Cutting Time.............11,180
**15 POSITIONS (1 RACK) IN ATC NOT OPERATIONAL**
**PICTURED TOOLING NOT INCLUDED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
