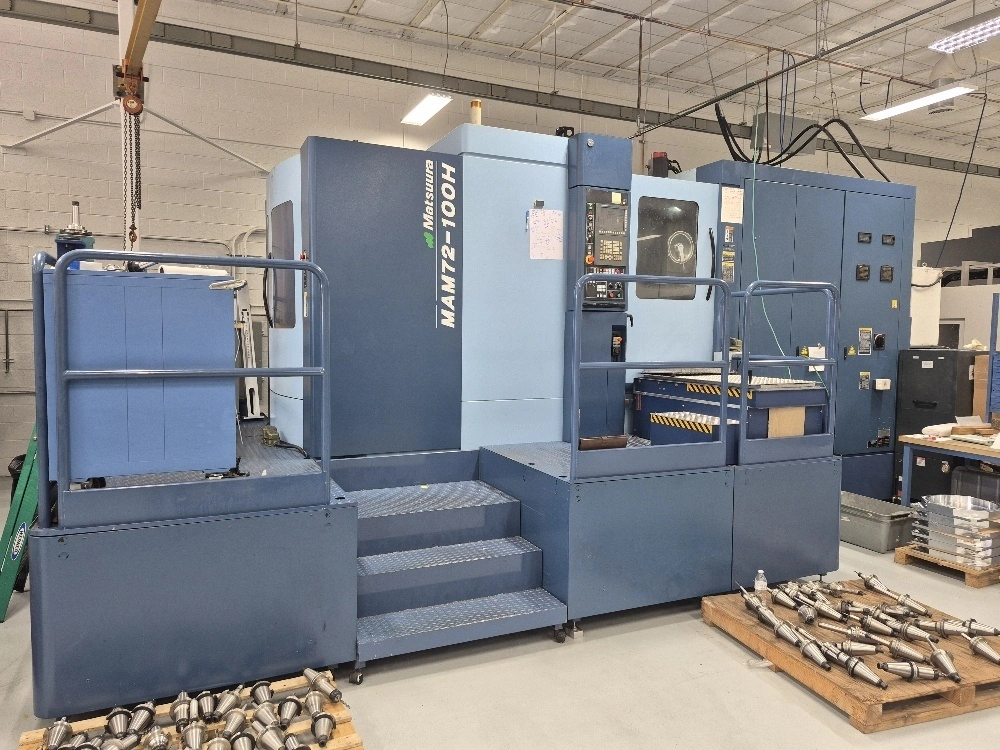

Matsuura MAM72-100H 5-Axis Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2012 Matsuura MAM72-100H 5-Axis Horizontal Machining Center with G-Tech 30i Control, 2 Pallets, 12,000 RPM, CAT-50 Spindle, Renishaw Probe, Mist Collection, 240 ATC, Cooljet HP Coolant, (2) Chillers, and Low Hours.
Working Surface.....................24.80" × 24.80"
Max. Loading Capacity...............1719 LBS
Max. Work Size......................Ø40.15" × 30.31" with Restrictions
X-Axis Travel.......................41.33"
Y-Axis Travel.......................36.22"
Z-Axis Travel.......................37.79"
A-Axis Travel.......................-120 - +30 Degree

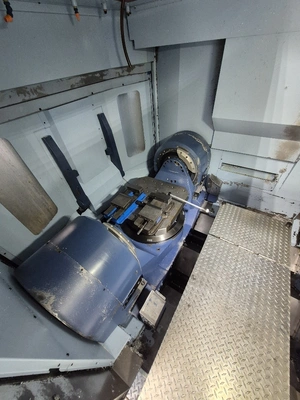

B-Axis Travel.......................360 Degree
Spindle Drive Motor.................40 HP
Spindle Taper.......................CAT-50
Spindle Speed Range.................45 - 12,000 RPM
Max. Spindle Torque.................451 NM
Rapid Traverse Rate (X / Y / Z).....2362.20 / 2362.20 / 1968.50 IPM
Rapid Traverse Rate (A / B).........50 / 75 RPM
Feedrate (X / Y / Z)................2362.20 / 2362.20 / 1968.50 IPM
Feedrate (A / B)....................50 / 75 RPM
Number of Tools.....................240 ATC
Max Tool Diameter...................4.33" - 12.59"
Max Tool Length.....................23.62"
Max Tool Mass.......................44 LBS
Tool Change Time....................2.2 - 3.1 Seconds
Electrical Power Capacity...........108 KVA
Machine Weight......................48,400 LBS

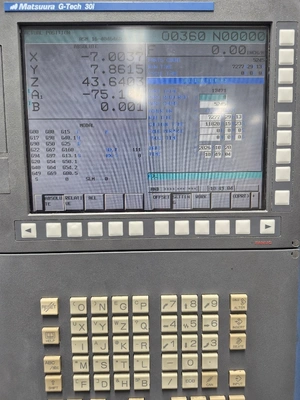

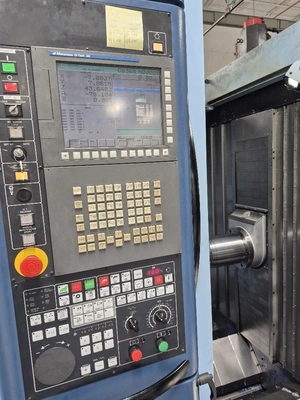

G-Tech 30i Control

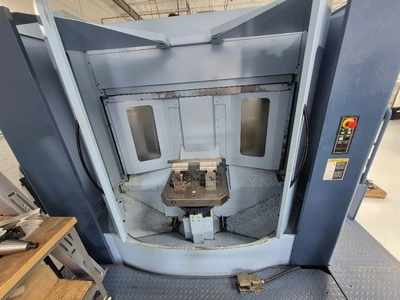

2-Pallet Changer

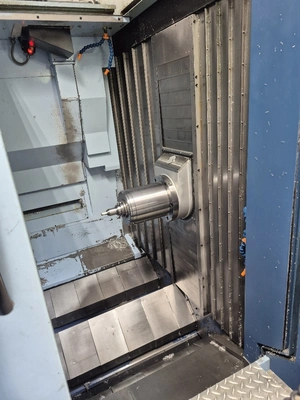

12,000 RPM, CAT-50 Spindle
Renishaw Probe
Laser Tool Setter

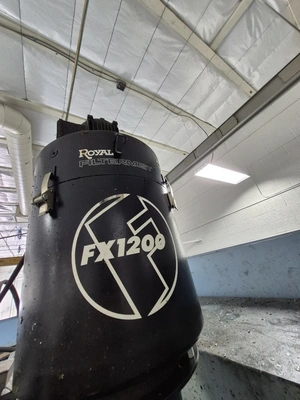

Royal Filtermist FX1200

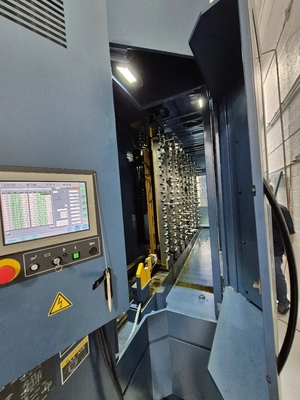

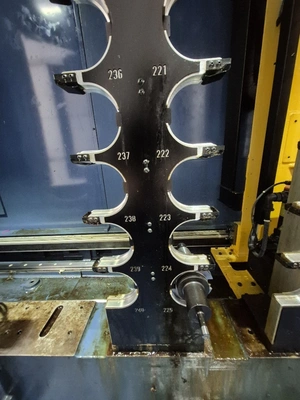

240 Station ATC

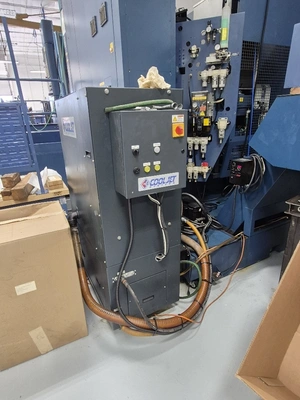

CoolJet Systems 3800WFP-230 HP Pump (2017)

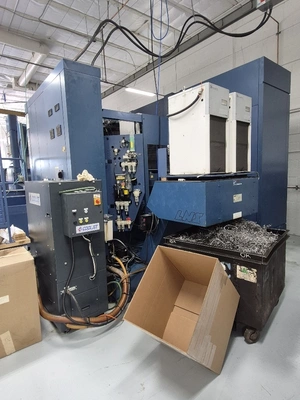

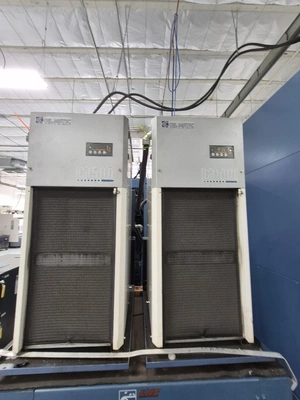

(2) Oilmatic C1500 Chillers

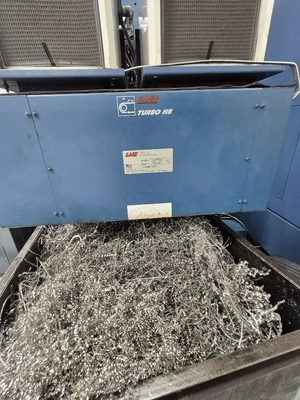

LNS Turbo HB Chip Conveyor
HOURS:
Power on Time..............41,588
Run Time...................7,277
Cutting Time...............11,820
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2012 Matsuura MAM72-100H 5-Axis Horizontal Machining Center with G-Tech 30i Control, 2 Pallets, 12,000 RPM, CAT-50 Spindle, Renishaw Probe, Mist Collection, 240 ATC, Cooljet HP Coolant, (2) Chillers, and Low Hours.
Imperial
| X | 41.33" |
| Y | 36.22" |
| Z | 37.39" |
| Power | 40 hp |
| RPM | 12,000 RPM |
| # ATC | 240 |
| Taper | CAT-50 |
| Pallet-W | 24.803" |
| Pallet-L | 24.803" |
| # Axis | 5 |
| Control | CNC (Matsuura G-Tech 30i) |
| Weight | 48,400 LBS |
Working Surface.....................24.80" × 24.80"
Max. Loading Capacity...............1719 LBS
Max. Work Size......................Ø40.15" × 30.31" with Restrictions
X-Axis Travel.......................41.33"
Y-Axis Travel.......................36.22"
Z-Axis Travel.......................37.79"
A-Axis Travel.......................-120 - +30 Degree
B-Axis Travel.......................360 Degree
Spindle Drive Motor.................40 HP
Spindle Taper.......................CAT-50
Spindle Speed Range.................45 - 12,000 RPM
Max. Spindle Torque.................451 NM
Rapid Traverse Rate (X / Y / Z).....2362.20 / 2362.20 / 1968.50 IPM
Rapid Traverse Rate (A / B).........50 / 75 RPM
Feedrate (X / Y / Z)................2362.20 / 2362.20 / 1968.50 IPM
Feedrate (A / B)....................50 / 75 RPM
Number of Tools.....................240 ATC
Max Tool Diameter...................4.33" - 12.59"
Max Tool Length.....................23.62"
Max Tool Mass.......................44 LBS
Tool Change Time....................2.2 - 3.1 Seconds
Electrical Power Capacity...........108 KVA
Machine Weight......................48,400 LBS
G-Tech 30i Control
2-Pallet Changer
12,000 RPM, CAT-50 Spindle
Renishaw Probe
Laser Tool Setter
Royal Filtermist FX1200
240 Station ATC
CoolJet Systems 3800WFP-230 HP Pump (2017)
(2) Oilmatic C1500 Chillers
LNS Turbo HB Chip Conveyor
HOURS:
Power on Time..............41,588
Run Time...................7,277
Cutting Time...............11,820
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
