2002 MAZAK INTEGREX 300II-SY
Have one to sell?
ConditionUsed
1 available

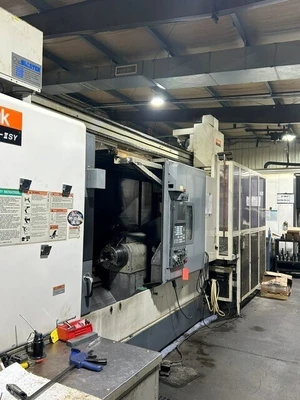

2002 Mazak Integrex 300II-SY Multi Axis CNC Turning Center with Fusion 640MT Control, 10,000 RPM Milling Head, 80 ATC, Gantry Loader, Full C-Axis on Both Spindles, Y-Axis, Parts Catcher, and More.
Max Turning Diameter...............24"
Max Turning Length.................42.5"
Max Bar Capacity...................2.55"
Swing Over Bed.....................24"
Distance Between Centers...........47"
X-Axis Travel......................22.80"
Y-Axis Travel......................+/-4.53"
Z-Axis Travel......................44.75"
B-Axis Travel......................-30° to +195°
C-Axis.............................0.001 Degree
X-Rapid Traverse Rate..............1181 IPM
Y-Rapid Traverse Rate..............591 IPM
Z-Rapid Traverse Rate..............1181 IPM
Main Spindle Nose..................A2-8
Main Spindle Bore..................3"
Main Spindle Speed.................35 – 3500 RPM
Main Spindle Motor.................40 HP
Sub Spindle Nose...................A2-8
Sub Spindle Bore...................3"
Sub Spindle Speed..................35 – 3500 RPM
Sub Spindle Motor..................30 HP
Number of Tools....................80 ATC
Tool Type..........................Capto C6
Spindle Speed......................15-10,000 RPM
Spindle Motor......................25 HP
Spindle 90° Index Time.............0.5 sec
Machine Weight.....................23,100 lbs

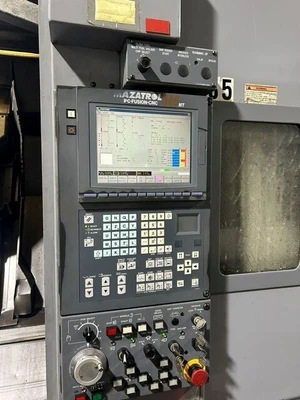

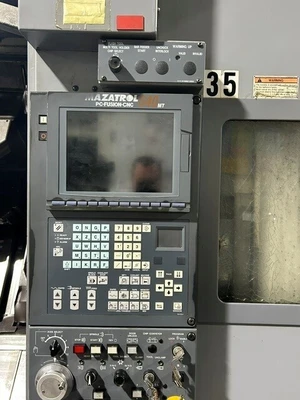

Mazatrol Fusion 640MT CNC Control

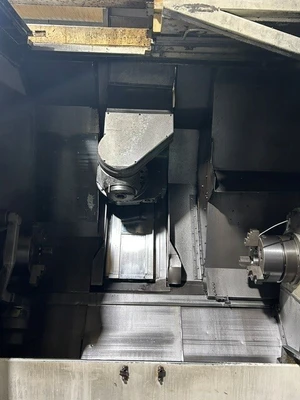

10,000 RPM Pendulum Milling Head

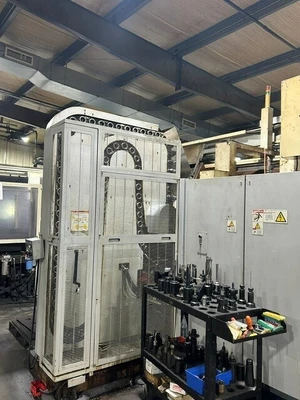

80 Station Tool Magazine
Sub Spindle
Full C-Axis on Both Spindles
Y-Axis Capability
Tool Presetter
Part Cather
Rigid Tapping
Coolant System
Chip Conveyor

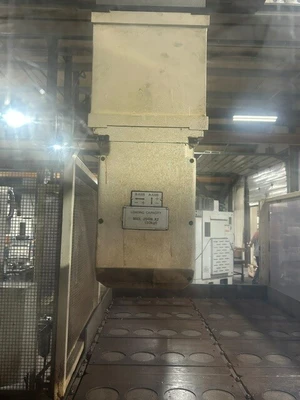

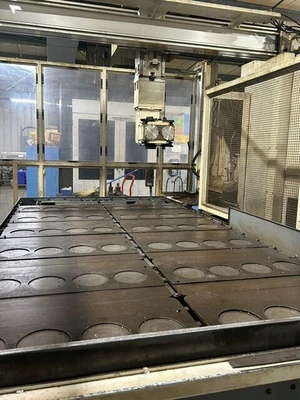

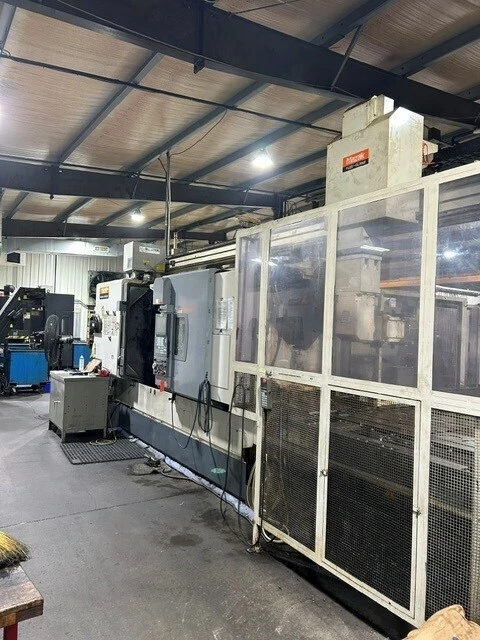

Gantry Loader and Stacking Table
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2002 Mazak Integrex 300II-SY Multi Axis CNC Turning Center with Fusion 640MT Control, 10,000 RPM Milling Head, 80 ATC, Gantry Loader, Full C-Axis on Both Spindles, Y-Axis, Parts Catcher, and More.
Imperial
| Swing | 24" |
| Machining Length | 42.5" |
| Chuck Size | 10" |
| Bar Capacity | 2.55" |
| Power | 40 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 24" |
| Tailstock | 'No' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'Yes' |
| Control | CNC (Mazak PC Fusion 640MT) |
| Weight | 23,100 Lvs |
Max Turning Diameter...............24"
Max Turning Length.................42.5"
Max Bar Capacity...................2.55"
Swing Over Bed.....................24"
Distance Between Centers...........47"
X-Axis Travel......................22.80"
Y-Axis Travel......................+/-4.53"
Z-Axis Travel......................44.75"
B-Axis Travel......................-30° to +195°
C-Axis.............................0.001 Degree
X-Rapid Traverse Rate..............1181 IPM
Y-Rapid Traverse Rate..............591 IPM
Z-Rapid Traverse Rate..............1181 IPM
Main Spindle Nose..................A2-8
Main Spindle Bore..................3"
Main Spindle Speed.................35 – 3500 RPM
Main Spindle Motor.................40 HP
Sub Spindle Nose...................A2-8
Sub Spindle Bore...................3"
Sub Spindle Speed..................35 – 3500 RPM
Sub Spindle Motor..................30 HP
Number of Tools....................80 ATC
Tool Type..........................Capto C6
Spindle Speed......................15-10,000 RPM
Spindle Motor......................25 HP
Spindle 90° Index Time.............0.5 sec
Machine Weight.....................23,100 lbs
Mazatrol Fusion 640MT CNC Control
10,000 RPM Pendulum Milling Head
80 Station Tool Magazine
Sub Spindle
Full C-Axis on Both Spindles
Y-Axis Capability
Tool Presetter
Part Cather
Rigid Tapping
Coolant System
Chip Conveyor
Gantry Loader and Stacking Table
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
