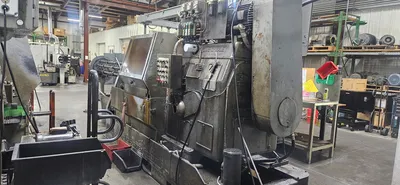

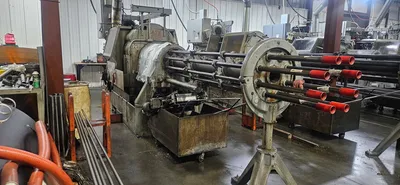

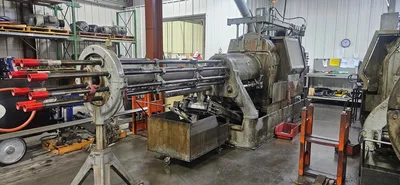

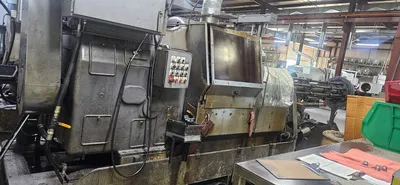

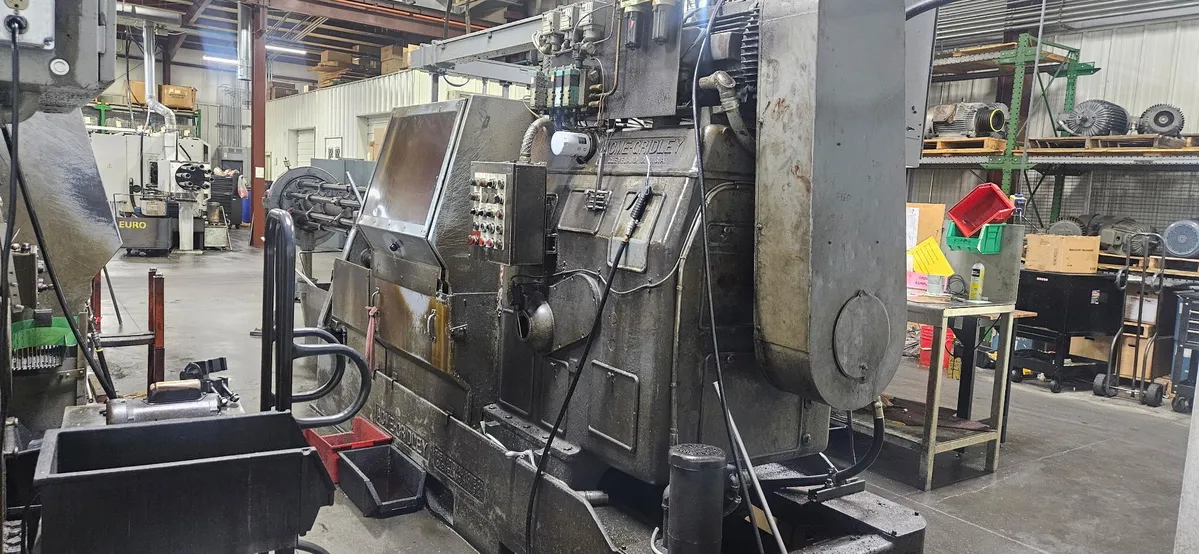

Acme Gridley 1-1/4" RB-8 Multi-Spindle Screw Machine

Maximum Stock Capacity - Round................1-1/4"
Maximum Stock Capacity - Square...............7/8"
Maximum Stock Capacity - Hexagon..............1-3/32"
Combined Pusher & Tube - Round................1-5/16"
Maximum Sock Feed Length......................7"
End Tool Slide Travel.........................7"
Upper Cross Slides Travel.....................2-1/2"
Intermediate Cross Slides Travel..............1-1/4"
Lower Cross Slides Travel.....................2-1/2"
Main Motor Horsepower.........................30
Spindle Speed Minimum RPM.....................283
Spindle Speed Maximum RPM Standard............2365
Spindle Speed Maximum RPM Spindle Stopper.....2175
Idle Time Seconds - Single Index..............2.00
Idle Time Seconds - Double Index..............2.87
Idle Time Seconds - Spindle Stopping..........2.40
Idle Time Seconds - Double Index & Stopping...3.50
Idle Time Seconds - Spindle Positioning.......3.00
Lubrication Reservoir Capacity................20 Gallons
Lubrication Pump Flow Rate....................3 GPM
Coolant Reservoir Capacity....................200 Gallons
Coolant Pump Flow Rate........................60 GPM
Width of Machine..............................4'-0"
Length of Machine.............................12'-5"
Length of Machine with Stock Reel and Stand...20'-1"
Weight of Machine - Pounds....................27,000
