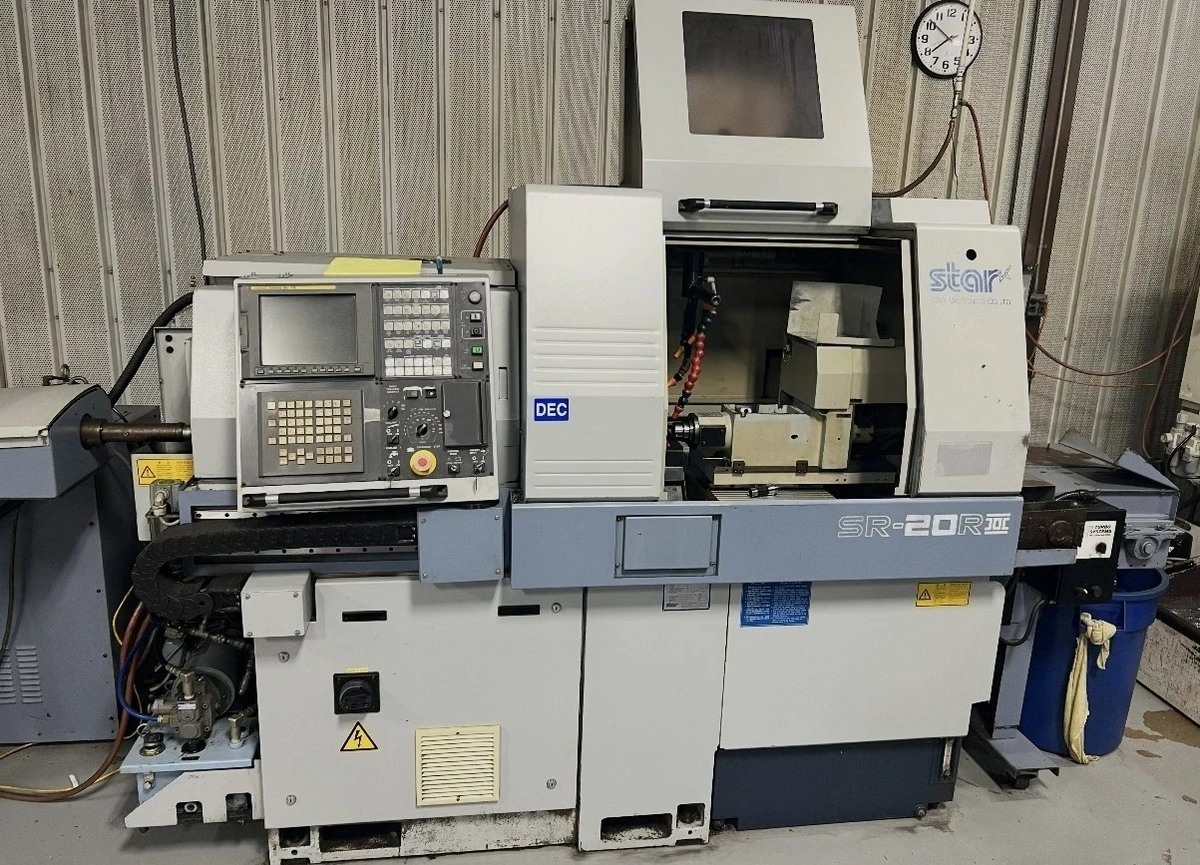

2005 STAR SR-20RII

Control: Fanuc 18i-TB
Number of Axes: 6 (7)
X1, Y1, Z1, C1, X2, Z2, C2 (opt)
Max. Diameter: 3/4"
Max. Headstock Stroke: 8.07" standard
6.68" w/ gripping unit
Max. Spindle Speed: 10,000 rpm
Main Spindle Indexing: C-Axis (0.001 degree)
Main Spindle Motor: 2.2kw/3.7kw
Number of Tool Stations:
Gang Type: 6 Turning Tools
5 Power-driven Tools
4-spindle Sleeve Holder: 4 Front working Tools
4 Back working Tools
Max. Drilling Capacity: 10mm (4 spindle sleeve holder)
8mm (power driven attachment)
Max. Tapping Capacity: M8x1.25 4-spindle sleeve hldr
M6x1.0 power driven attachment
Coolant Tank Capacity: 145 L
Sub-spindle
Max. Diameter: 3/4"
Max. Part Length Pick-off: 3.14"
Max. Part Protection Length: 1.18"
Max. Spindle Speed: 8,000 rpm
Spindle Indexing: 15 Degree (C-Axis optional)
Motor: 1.5kw/2.2kw
Tooling: 4 stationary or power-driven
Max. Drilling Capacity: 8mm stationary tools
5 mm power driven tools
Max. Tapping Capacity: M8x1.25 stationary tools
M4x0.7 power-driven attachment
Dimensions, approx. (w x d x h): 7.25' x 3.5' x 5.6'
Weight (approx): 5000 lbs
