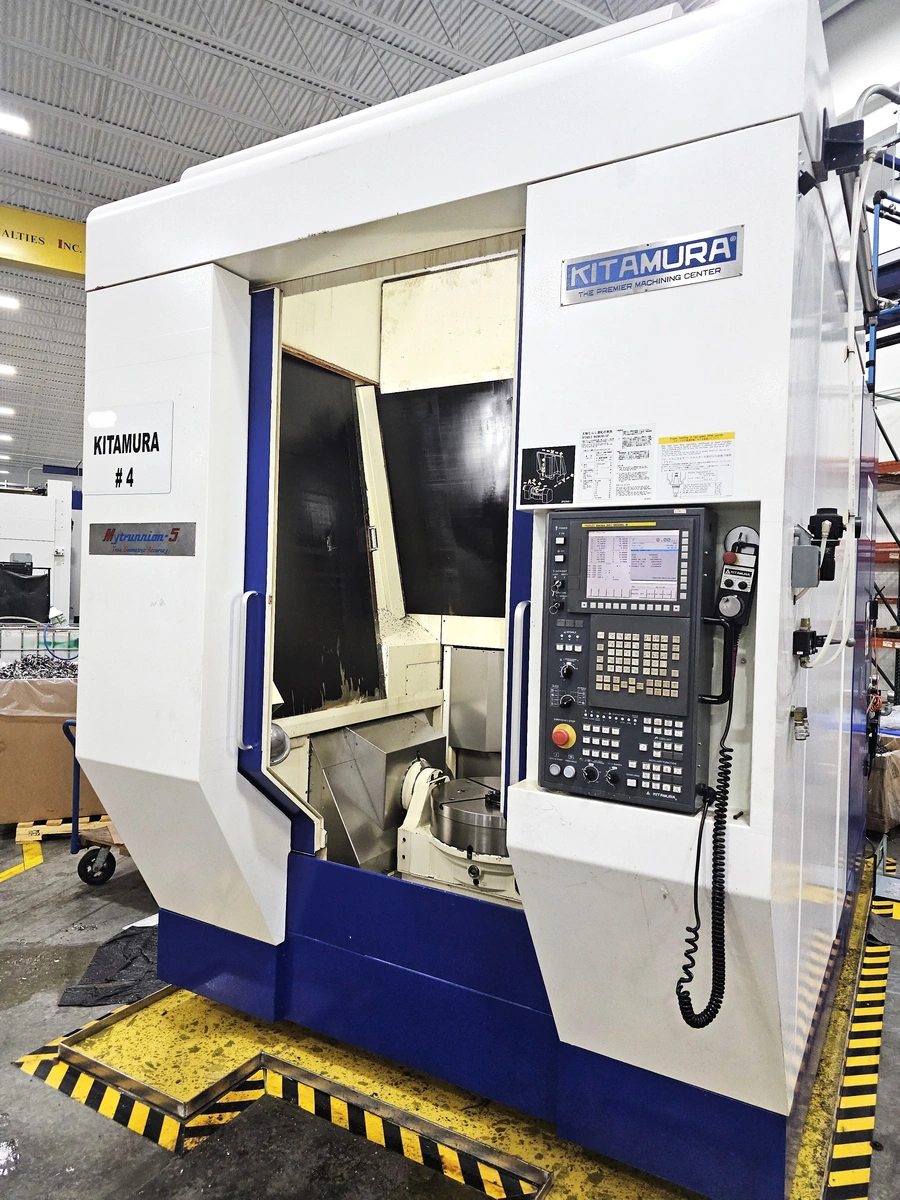

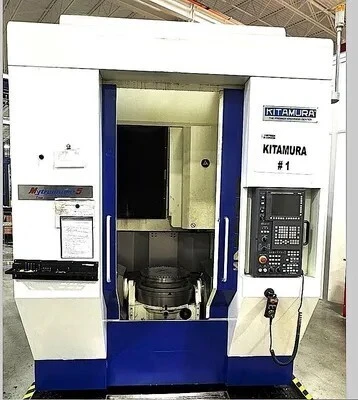

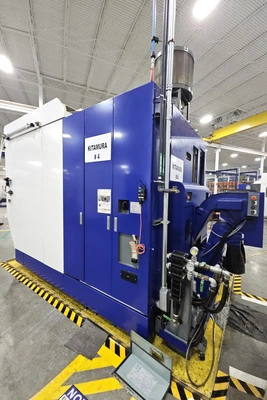

Kitamura MyTrunnion 5G - 5-Axis Simultaneous Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
2017 Kitamura MyTrunnion 5G - 5-Axis Simultaneous Vertical Machining Center with 20,000 RPM, CAT-40 Spindle, TSC, 50 ATC.

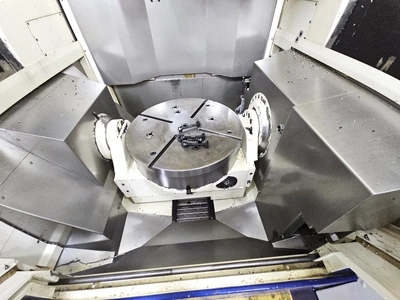

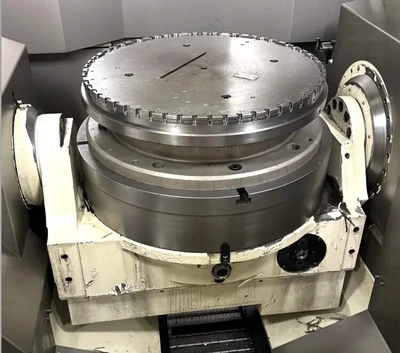

Trunnion Table Diameter...........................24.8"
T-Slot............................................0.7" X 3 Slots
Max Weight on Table...............................880 LBS
Table to Spindle Nose.............................3.9" – 23.6"
X-Axis Travel.....................................32.3"
Y-Axis Travel.....................................29.3"
Z-Axis Travel.....................................19.6"
A-Axis Travel.....................................150°
C-Axis Travel.....................................360°
Spindle Motor.....................................30 HP
Spindle Taper.....................................CAT-40
Spindle Speed Range (4-Step Gear Driven)..........20,000 RPM
Rapids (X,Y,Z)....................................1968, 1968, 984 IPM
Rapid A-Axis......................................2000 Degree Per Minute
Rapid C-Axis......................................6000 Degree Per Minute
Cutting Feed Rate.................................984 IPM
Number of Tool Positions..........................50 Tools
Max Tool Size.....................................5.91" x 11.8"
Max Tool Weight...................................22 LBS
Tool Change Time..................................1.7 Second
Electrical........................................220V/3PH/60HZ
Machine Weight....................................30,000 LBS

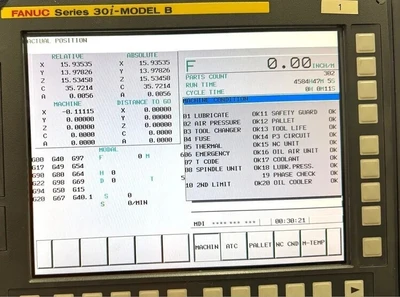

Fanuc 30i-B CNC Control
128 MB Memory
PCMCIA Card Slot
Simultaneous 5-Axis Cutting
24" 4-Jaw Rotary Chuck
20,000 RPM, CAT-40 Spindle
Coolant Through Spindle
50 Station ATC
Heavy Duty Taper Milling
All Box Way Construction & Rigidity
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Work light
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2017 Kitamura MyTrunnion 5G - 5-Axis Simultaneous Vertical Machining Center with 20,000 RPM, CAT-40 Spindle, TSC, 50 ATC.
Imperial
| X | 32" |
| Y | 29.3" |
| Z | 19.7" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 20,000 RPM |
| # ATC | 50 |
| Taper | CAT-40 |
| Control | CNC (Fanuc 30i-B) |
| Weight | 30,000 LBS |
Trunnion Table Diameter...........................24.8"
T-Slot............................................0.7" X 3 Slots
Max Weight on Table...............................880 LBS
Table to Spindle Nose.............................3.9" – 23.6"
X-Axis Travel.....................................32.3"
Y-Axis Travel.....................................29.3"
Z-Axis Travel.....................................19.6"
A-Axis Travel.....................................150°
C-Axis Travel.....................................360°
Spindle Motor.....................................30 HP
Spindle Taper.....................................CAT-40
Spindle Speed Range (4-Step Gear Driven)..........20,000 RPM
Rapids (X,Y,Z)....................................1968, 1968, 984 IPM
Rapid A-Axis......................................2000 Degree Per Minute
Rapid C-Axis......................................6000 Degree Per Minute
Cutting Feed Rate.................................984 IPM
Number of Tool Positions..........................50 Tools
Max Tool Size.....................................5.91" x 11.8"
Max Tool Weight...................................22 LBS
Tool Change Time..................................1.7 Second
Electrical........................................220V/3PH/60HZ
Machine Weight....................................30,000 LBS
Fanuc 30i-B CNC Control
128 MB Memory
PCMCIA Card Slot
Simultaneous 5-Axis Cutting
24" 4-Jaw Rotary Chuck
20,000 RPM, CAT-40 Spindle
Coolant Through Spindle
50 Station ATC
Heavy Duty Taper Milling
All Box Way Construction & Rigidity
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Work light
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
