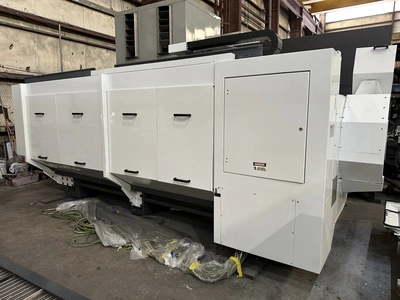

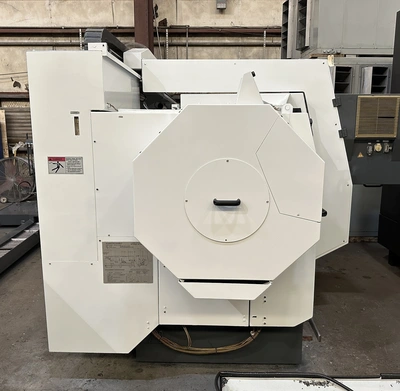

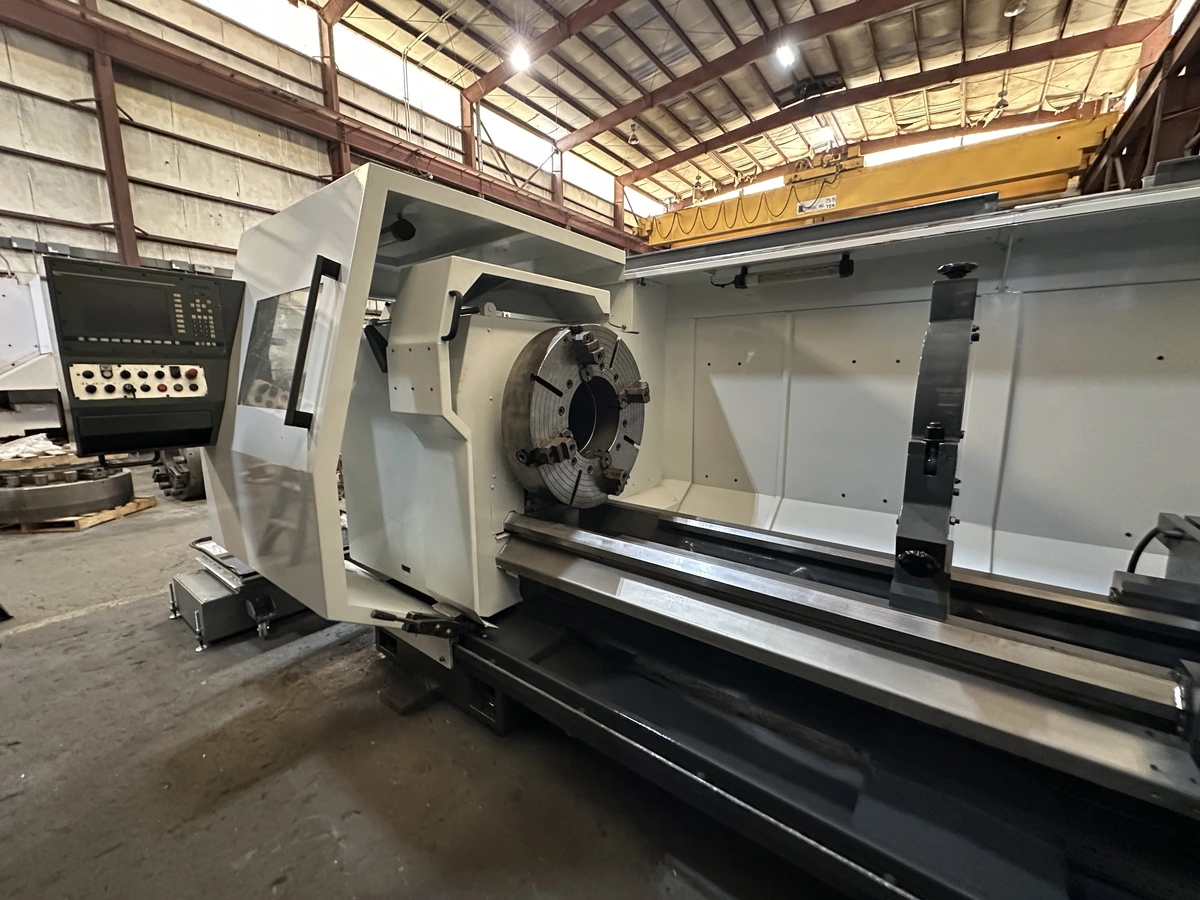

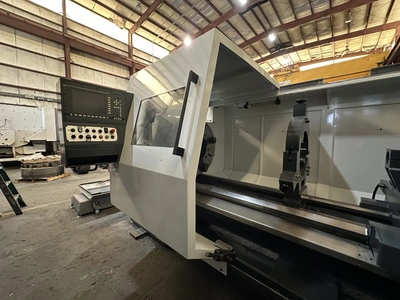

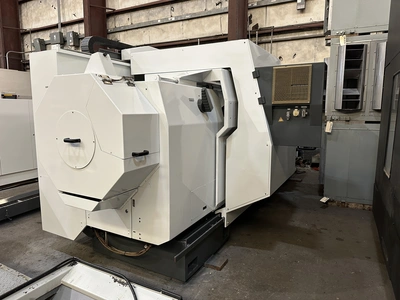

2007 Weiler E90/3000 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
2007 Weiler E90/3000 CNC Turning Center with Weiler D3 CNC control, 14" Spindle Hole, 32" Front & Rear Chucks, Oversize Steadyrest, Tailstock, and Chip Conveyor.
Maximum Swing................36"
Max. Turning Diameter........20.8"
Distance Between Centers.....120"
X-Axis Travel................24.6"
Z-Axis Travel................118"
Chuck Size...................32"
Bar Capacity.................14"
Spindle Motor................60 HP
Spindle Nose.................D1-20
Spindle Speed................500 RPM
Rapid Traverse Rate..........597 IPM
Tail Stock Taper.............MT 6
Quill Diameter...............5.51"
Approx. Machine Weight.......21,000 LBS

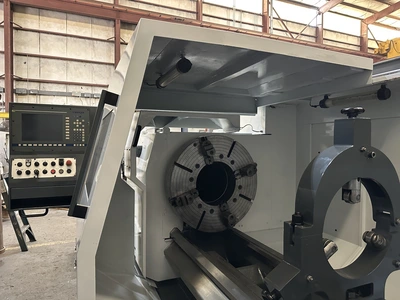

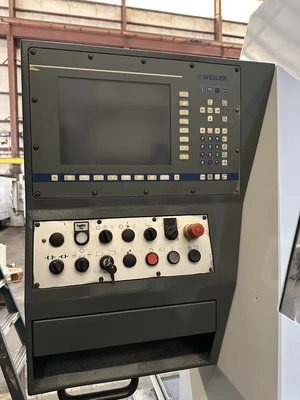

Weiler D3 Generation CNC Control

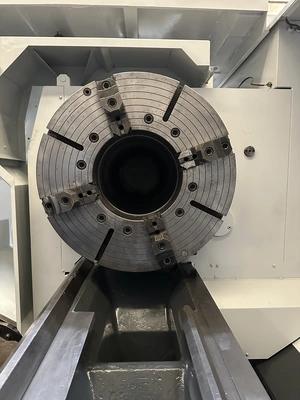

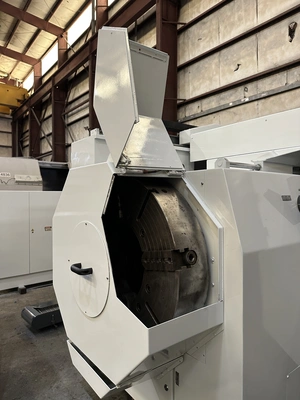

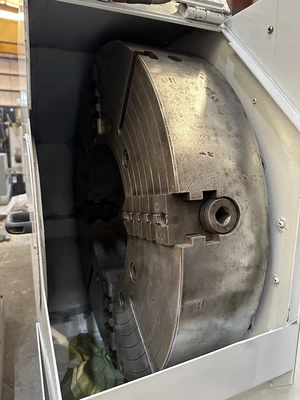

Front and Rear 32" Four-Jaw Chucks

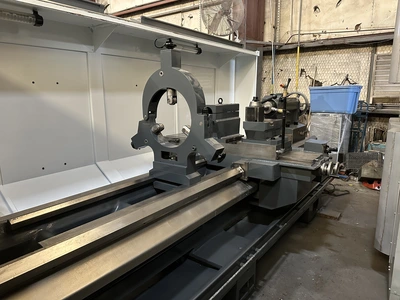

Steady Rest

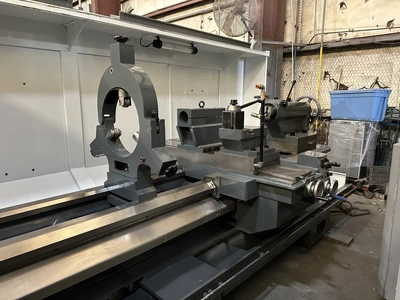

Oversized Steady Rest
Boring Bar Attachment

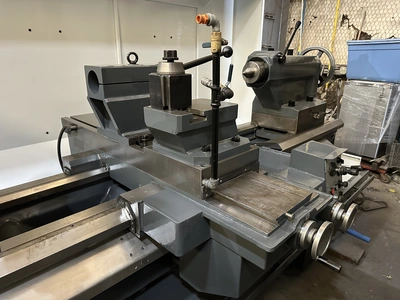

Quick Change Tool Post

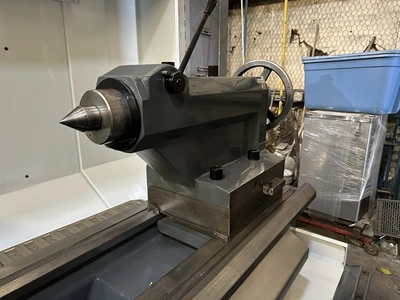

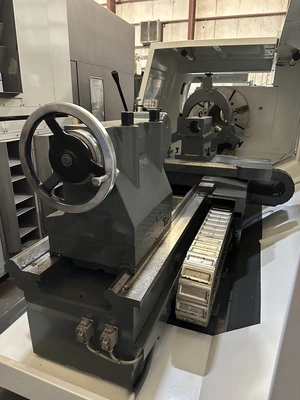

Tailstock

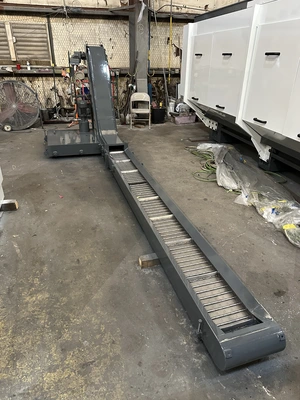

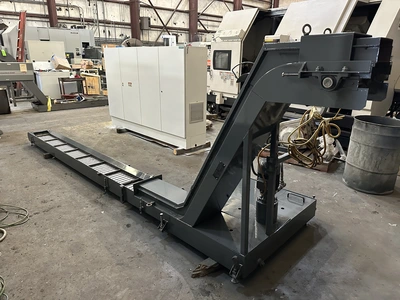

Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2007 Weiler E90/3000 CNC Turning Center with Weiler D3 CNC control, 14" Spindle Hole, 32" Front & Rear Chucks, Oversize Steadyrest, Tailstock, and Chip Conveyor.
Imperial
| Swing | 35.4" |
| Machining Length | 120" |
| # Axis | 2 |
| Chuck Size | 32" |
| Bar Capacity | 14" |
| Power | 60 hp |
| Max RPM | 500 RPM |
| Turning Dia | 20.8" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Weiler D3) |
| Weight | 21,000 LBS |
Maximum Swing................36"
Max. Turning Diameter........20.8"
Distance Between Centers.....120"
X-Axis Travel................24.6"
Z-Axis Travel................118"
Chuck Size...................32"
Bar Capacity.................14"
Spindle Motor................60 HP
Spindle Nose.................D1-20
Spindle Speed................500 RPM
Rapid Traverse Rate..........597 IPM
Tail Stock Taper.............MT 6
Quill Diameter...............5.51"
Approx. Machine Weight.......21,000 LBS
Weiler D3 Generation CNC Control
Front and Rear 32" Four-Jaw Chucks
Steady Rest
Oversized Steady Rest
Boring Bar Attachment
Quick Change Tool Post
Tailstock
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
