2011 NAKAMURA-TOME SUPER NTM3
Have one to sell?
ConditionUsed
1 available

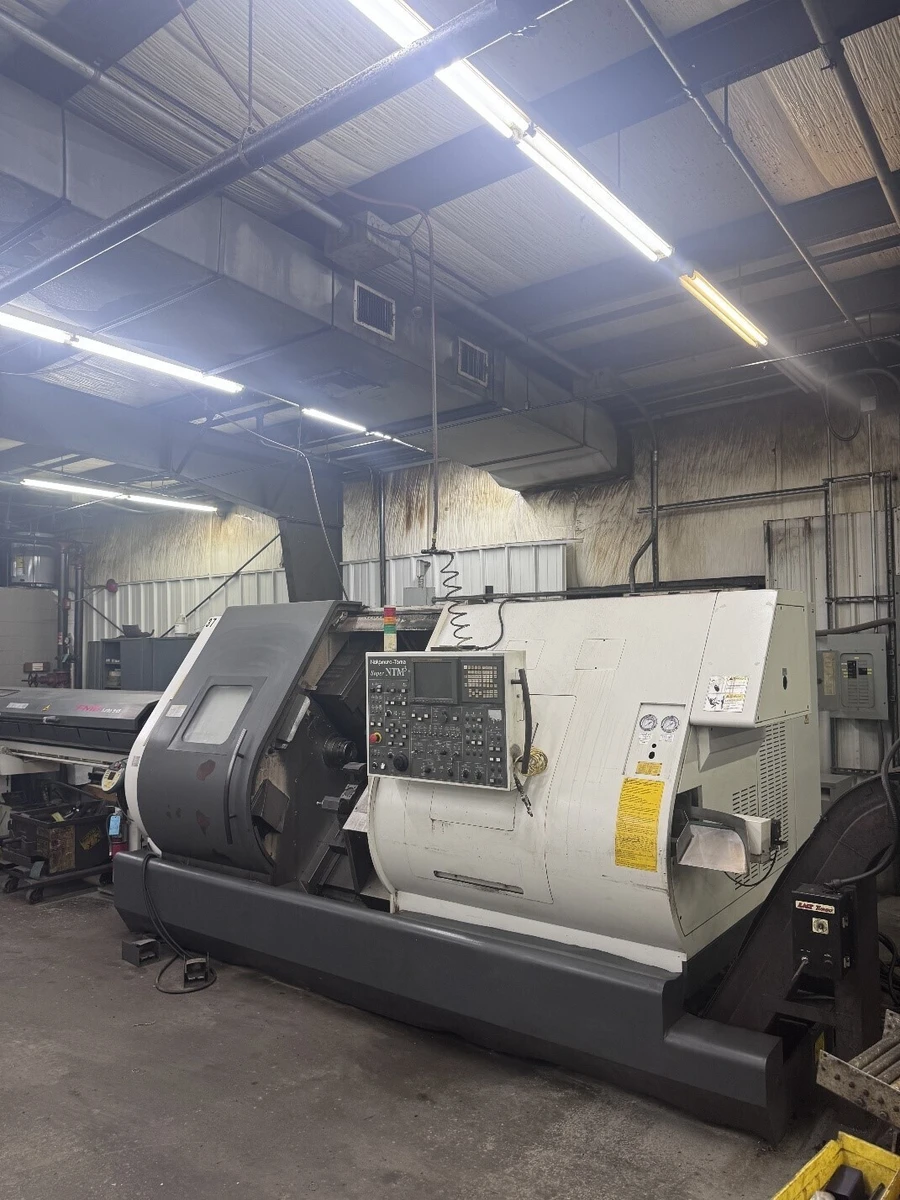

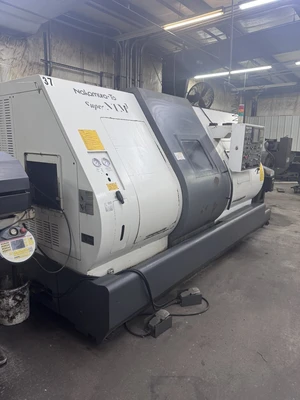

2011 NAKAMURA-TOME SUPER NTM3 with Fanuc 16i-TB Control, Three Turrets, Sub-Spindle, Y-Axis on both Upper Turrets, Milling, FMB Barfeed, and Parts Conveyor.
Max. Turning Diameter........................7.48"
Max. Turning Length Upper Turret.............8.07"
Max. Turning Length Lower Turret.............25.2"
Slide Travel X1/X2/X3........................6.594"
Slide Travel Z1/Z2/Z3........................9.842"/9.842"/26.968"
Slide Travel Y1/Y2...........................4.015" (+2.401/-1.614")
Bar Capacity Main Spindle....................2.6"
Bar Capacity Sub-Spindle.....................2.05"
Main Spindle Motor...........................20/14.75 HP
Sub-Spindle Drive............................14.75/10 HP
Spindle Nose.................................A2-6
Spindle Speed................................5,000 RPM
Number of Turrets............................3
Milling Spindle Speed........................6,000 RPM

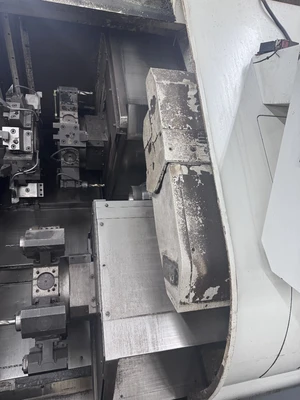

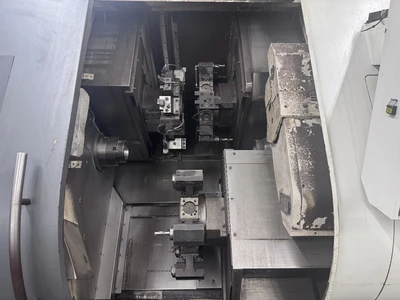

Upper Turrets................................Two 24-station turrets with Y-axis
Lower Turret.................................24-station tool turret
Machine Footprint............................155" x 90" x 83"
Machine Weight...............................26,400 LBS
Fanuc Series 16i-TB CNC Control
Dual Spindle
Tri-Turret Design
Y-Axis on Both Upper Turrets

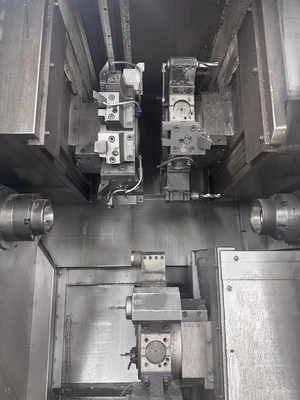

(2) 24-Station Upper Turrets, 24 Station Lower Tool Turret
Work Piece Take-Off Conveyor

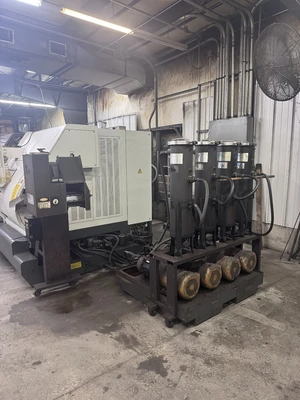

High Pressure Coolant System

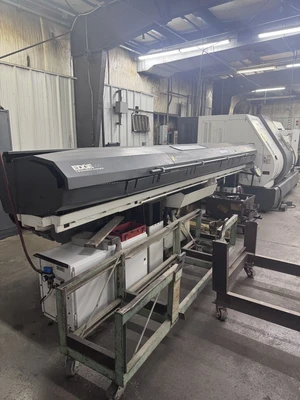

FMB Turbo Barfeeder
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2011 NAKAMURA-TOME SUPER NTM3 with Fanuc 16i-TB Control, Three Turrets, Sub-Spindle, Y-Axis on both Upper Turrets, Milling, FMB Barfeed, and Parts Conveyor.
Imperial
| Machining Length | 25.2" |
| Bar Capacity | 2.6" |
| Power | 20 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 7.48" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (Fanuc CNC Control) |
| Dimensions | 155" x 90" x 83" |
| Weight | 26,400 LBS |
Max. Turning Diameter........................7.48"
Max. Turning Length Upper Turret.............8.07"
Max. Turning Length Lower Turret.............25.2"
Slide Travel X1/X2/X3........................6.594"
Slide Travel Z1/Z2/Z3........................9.842"/9.842"/26.968"
Slide Travel Y1/Y2...........................4.015" (+2.401/-1.614")
Bar Capacity Main Spindle....................2.6"
Bar Capacity Sub-Spindle.....................2.05"
Main Spindle Motor...........................20/14.75 HP
Sub-Spindle Drive............................14.75/10 HP
Spindle Nose.................................A2-6
Spindle Speed................................5,000 RPM
Number of Turrets............................3
Milling Spindle Speed........................6,000 RPM
Upper Turrets................................Two 24-station turrets with Y-axis
Lower Turret.................................24-station tool turret
Machine Footprint............................155" x 90" x 83"
Machine Weight...............................26,400 LBS
Fanuc Series 16i-TB CNC Control
Dual Spindle
Tri-Turret Design
Y-Axis on Both Upper Turrets
(2) 24-Station Upper Turrets, 24 Station Lower Tool Turret
Work Piece Take-Off Conveyor
High Pressure Coolant System
FMB Turbo Barfeeder
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
