2012 MAZAK VTC-250-D-50
Have one to sell?
ConditionUsed
1 available

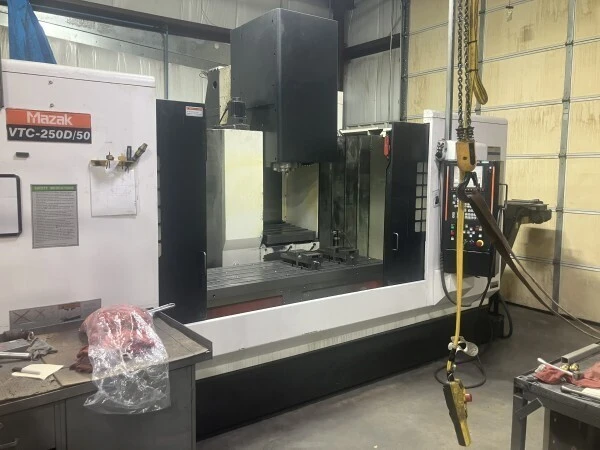

2012 Mazak VTC-250D/50 with Fusion 640MN Control, 6,000 RPM, CAT-50 Spindle, 24 ATC, Probe, 4th Axis Table, and Chip Conveyor. Machine only has 1,251 Cutting Hours.
TABLE SIZE.......................82.68" x 25"
TABLE LOAD CAPACITY..............3000 LBS
X-AXIS TRAVEL....................69.3"
Y-AXIS STROKE....................25"
Z-AXIS STROKE....................26"
SPINDLE NOSE TO TABLE TOP........9" - 33.07"
SPINDLE CENTERLINE TO COLUMN.....26"
SPINDLE MOTOR....................30 HP
SPINDLE TAPER....................CAT-50
SPINDLE SPEED....................6000 RPM
TOOL MAGAZINE CAPACITY...........24
MAX TOOL DIAMETER................4.13"
WITH ADJACENT POCKETS EMPTY......8.27"
MAX. TOOL LENGTH.................13.78"
MAX. TOOL WEIGHT.................33.33"
RAPID TRAVERSE RATE..............1181 IPM
FLOOR SPACE REQUIREMENTS.........183.27" x 132"
MACHINE HEIGHT...................133.5"
MACHINE WEIGHT...................26,000 LBS

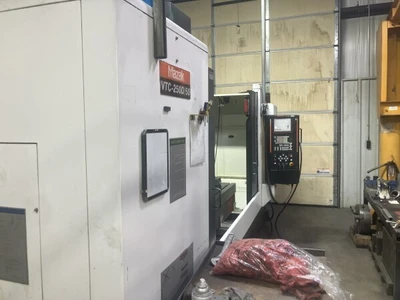

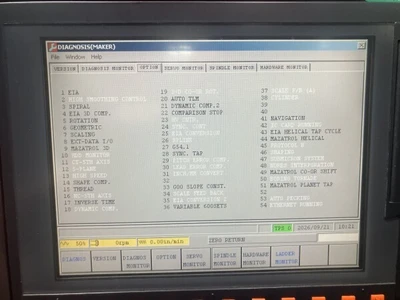

Mazatrol 640MN CNC Control
6,000 RPM, CAT-50 Spindle
Through Spindle Coolant
24 Station ATC
Probe

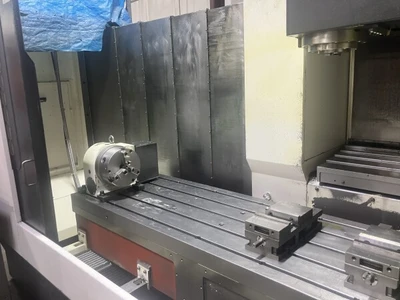

4th Axis Rotary Table

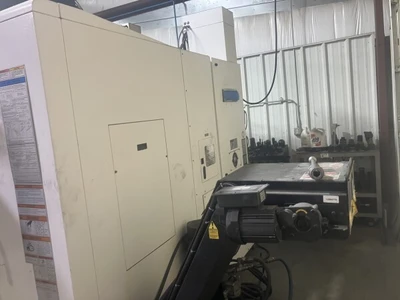

Chip Conveyor

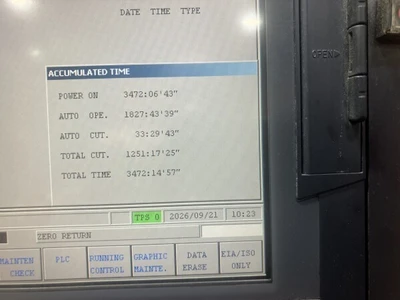

HOURS:
Power on Time.............3,472
Auto Ope..................1,827
Auto Cut..................33
Total Cut.................1,251
Total Time................3,472
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2012 Mazak VTC-250D/50 with Fusion 640MN Control, 6,000 RPM, CAT-50 Spindle, 24 ATC, Probe, 4th Axis Table, and Chip Conveyor. Machine only has 1,251 Cutting Hours.
Imperial
| X | 69.3" |
| Y | 25" |
| Z | 26" |
| Power | 30 hp |
| RPM | 6,000 RPM |
| # ATC | 24 |
| Taper | CAT-50 |
| Control | CNC (Fusion 640MN) |
| Dimensions | 183.27" x 132" x 133.5" |
| Weight | 26,000 LBS |
TABLE SIZE.......................82.68" x 25"
TABLE LOAD CAPACITY..............3000 LBS
X-AXIS TRAVEL....................69.3"
Y-AXIS STROKE....................25"
Z-AXIS STROKE....................26"
SPINDLE NOSE TO TABLE TOP........9" - 33.07"
SPINDLE CENTERLINE TO COLUMN.....26"
SPINDLE MOTOR....................30 HP
SPINDLE TAPER....................CAT-50
SPINDLE SPEED....................6000 RPM
TOOL MAGAZINE CAPACITY...........24
MAX TOOL DIAMETER................4.13"
WITH ADJACENT POCKETS EMPTY......8.27"
MAX. TOOL LENGTH.................13.78"
MAX. TOOL WEIGHT.................33.33"
RAPID TRAVERSE RATE..............1181 IPM
FLOOR SPACE REQUIREMENTS.........183.27" x 132"
MACHINE HEIGHT...................133.5"
MACHINE WEIGHT...................26,000 LBS
Mazatrol 640MN CNC Control
6,000 RPM, CAT-50 Spindle
Through Spindle Coolant
24 Station ATC
Probe
4th Axis Rotary Table
Chip Conveyor
HOURS:
Power on Time.............3,472
Auto Ope..................1,827
Auto Cut..................33
Total Cut.................1,251
Total Time................3,472
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
