2018 DOOSAN PUMA TT1800SY
Have one to sell?
ConditionUsed
1 available

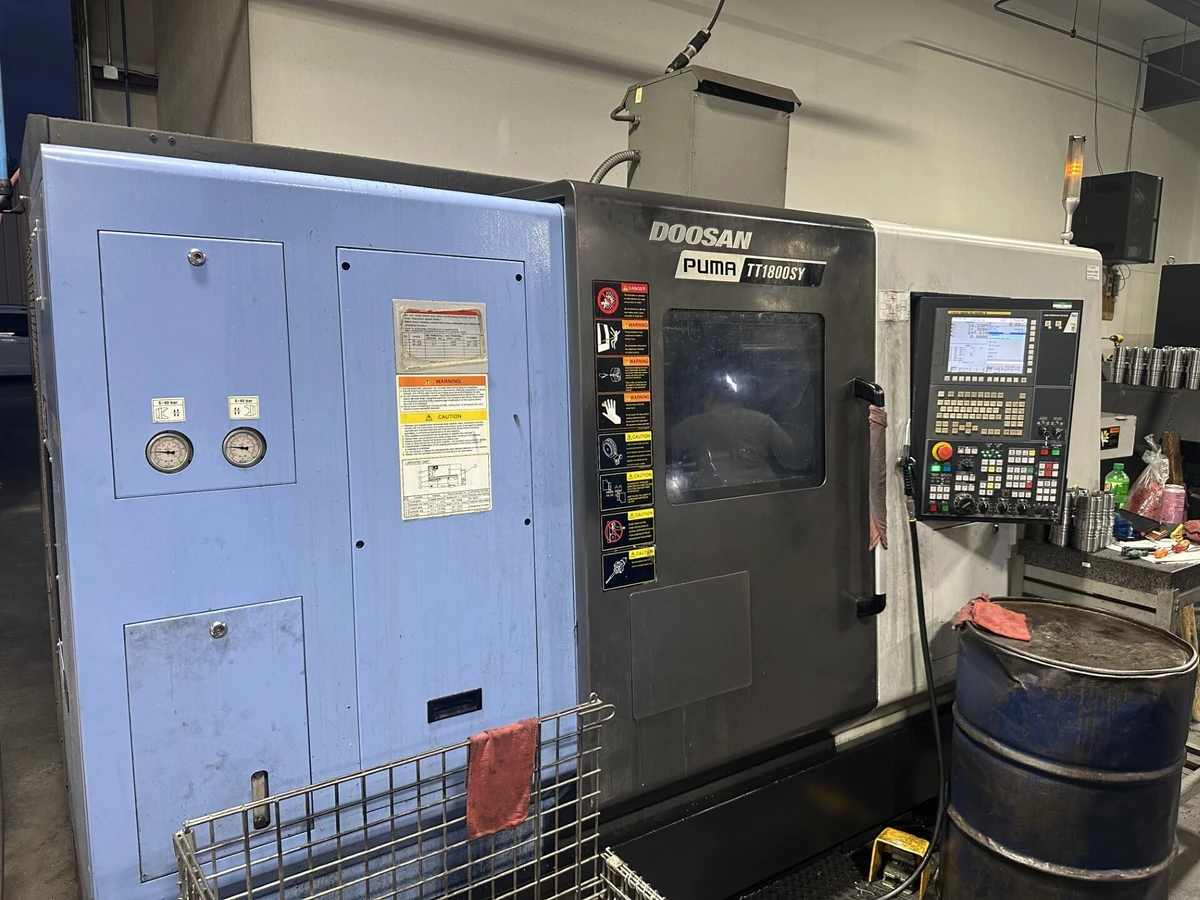

Doosan Puma TT1800SY CNC Turning Center with Fanuc 31i-B Control, Parts Ejector, Transformer, and Chip Conveyor. Machine has approx. 6,000 Cutting Hours
Number of Axis........................8
Swing.................................9.05"
Turning Diameter......................9.1"
Center Distance.......................30"
Bar Capacity..........................2.7"
X-Axis Travel.........................6.5"
X2-Travel.............................7.5"
Z-Axis Travel.........................27.6"
Z2-Travel.............................28.3"
Y-Axis Travel.........................3.9"
C1/C2 Axis Index......................0.001°
A-Axis Travel.........................30.3"
Spindle Nose..........................A2-6
Spindle Speed.........................5,000 RPM
Main Motor............................30 HP
Sub Spindle Speed.....................5,000 RPM
Sub Spindle Motor.....................30 HP
Live Tooling Speed....................5,000 RPM
Live Milling Motor....................7.5 HP
Number Of Turrets.....................2
Turret Capacity.......................24 Upper | 24 Lower
Machine Dimensions....................156" x 82" x 85"
Machine Weight........................20,000 LBS
Fanuc 31i-Model B CNC Control
Sub-Spindle
Dual Turrets
Live Tooling
Y-Axis
Parts Ejector
Chip Conveyor
Transformer

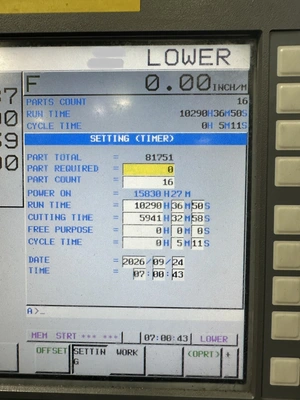

HOURS:
Power on Time..............15,830
Running Time...............10,290
Cutting Time...............5,941
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Doosan Puma TT1800SY CNC Turning Center with Fanuc 31i-B Control, Parts Ejector, Transformer, and Chip Conveyor. Machine has approx. 6,000 Cutting Hours
Imperial
| Swing | 9.05" |
| Bar Capacity | 2.7" |
| Power | 30 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 9.1" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (Fanuc 31i-B) |
| Dimensions | 156" x 82" x 85" |
| Weight | 20,000 LBS |
Number of Axis........................8
Swing.................................9.05"
Turning Diameter......................9.1"
Center Distance.......................30"
Bar Capacity..........................2.7"
X-Axis Travel.........................6.5"
X2-Travel.............................7.5"
Z-Axis Travel.........................27.6"
Z2-Travel.............................28.3"
Y-Axis Travel.........................3.9"
C1/C2 Axis Index......................0.001°
A-Axis Travel.........................30.3"
Spindle Nose..........................A2-6
Spindle Speed.........................5,000 RPM
Main Motor............................30 HP
Sub Spindle Speed.....................5,000 RPM
Sub Spindle Motor.....................30 HP
Live Tooling Speed....................5,000 RPM
Live Milling Motor....................7.5 HP
Number Of Turrets.....................2
Turret Capacity.......................24 Upper | 24 Lower
Machine Dimensions....................156" x 82" x 85"
Machine Weight........................20,000 LBS
Fanuc 31i-Model B CNC Control
Sub-Spindle
Dual Turrets
Live Tooling
Y-Axis
Parts Ejector
Chip Conveyor
Transformer
HOURS:
Power on Time..............15,830
Running Time...............10,290
Cutting Time...............5,941
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
