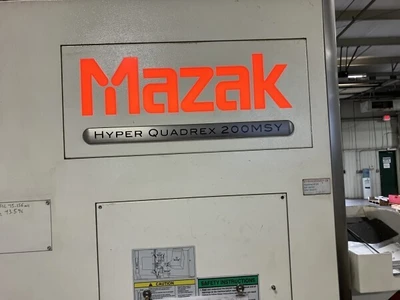

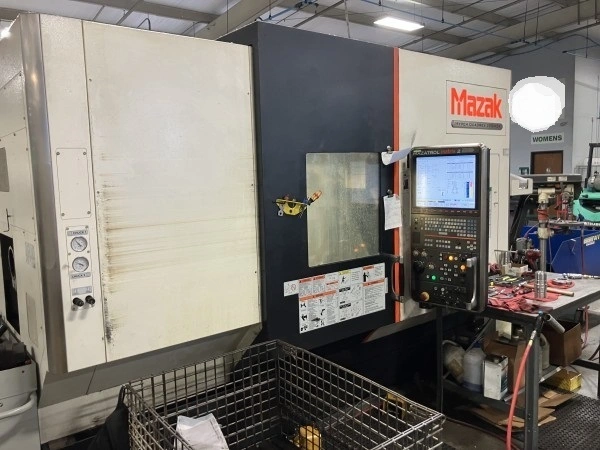

2015 MAZAK HYPER QUADREX 200MSY
Have one to sell?
ConditionUsed
1 available

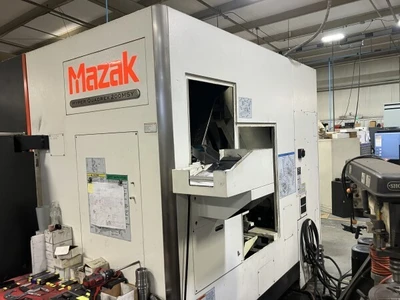

2015 MAZAK HYPER QUADREX 200MSY with Matrix 2 Control, Parts Conveyor, High Pressure Coolant, and Chip Conveyor.
Maximum Swing Over Carriage....................14.57"
Maximum Turning Diameter.......................13.54"
Maximum Machining Length.......................33.86"
Distance Between Spindles......................33.86"
Maximum Bar Capacity Main......................3"
X Axis Travel Upper / Lower Turret.............8.2" / 5.56"
Y Axis Travel Upper / Lower Turret.............4" / 2.75"
Z Axis Travel Upper / Lower Turret.............29.87" / 32.12"
C Axis Rotation - Both.........................0.001 Degree
Spindle Nose / Spindle Bore....................A2-6" / 3.46"
Spindle Speed - both...........................5,000 RPM
Spindle Motor - Both...........................30 HP
Live Spindle Drive Motor / Speeds..............7.5 HP / 6,000 RPM
Number of Turret Positions (All Live)..........12 Positions/12 Positions
Machine Dimensions.............................137.6" x 110.7" x 98"
Machine Weight.................................26,620 lbs.

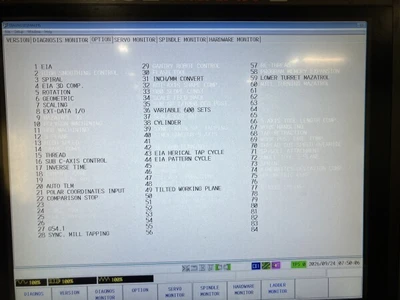

Mazatrol Matrix 2 CNC Control
Twin Opposed Spindles
Upper & Lower Turrets
C Axis Spindle Rotation Both Spindles
Y-Axis Milling Capability on Both Turrets
Parts Exit Conveyor
High Pressure Coolant
Chip Conveyor

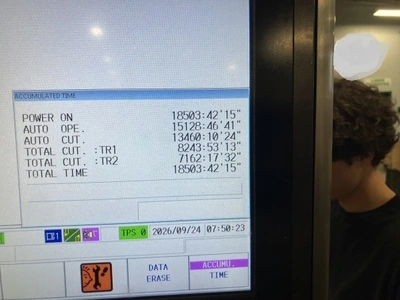

HOURS:
Power On Hours...........18,503
Auto Operation Hours.....15,128
Auto Cut Hours...........13,460
Total Cut 1st Turret.....8,243
Total Cut 2nd Turret.....7,162
Total Time...............18,503
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2015 MAZAK HYPER QUADREX 200MSY with Matrix 2 Control, Parts Conveyor, High Pressure Coolant, and Chip Conveyor.
Imperial
| Swing | 14.56" |
| Machining Length | 33.86" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 13.54" |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (Matrix 2) |
| Dimensions | 137.6" x 110.7" x 98" |
| Weight | 26,620 LBS |
Maximum Swing Over Carriage....................14.57"
Maximum Turning Diameter.......................13.54"
Maximum Machining Length.......................33.86"
Distance Between Spindles......................33.86"
Maximum Bar Capacity Main......................3"
X Axis Travel Upper / Lower Turret.............8.2" / 5.56"
Y Axis Travel Upper / Lower Turret.............4" / 2.75"
Z Axis Travel Upper / Lower Turret.............29.87" / 32.12"
C Axis Rotation - Both.........................0.001 Degree
Spindle Nose / Spindle Bore....................A2-6" / 3.46"
Spindle Speed - both...........................5,000 RPM
Spindle Motor - Both...........................30 HP
Live Spindle Drive Motor / Speeds..............7.5 HP / 6,000 RPM
Number of Turret Positions (All Live)..........12 Positions/12 Positions
Machine Dimensions.............................137.6" x 110.7" x 98"
Machine Weight.................................26,620 lbs.
Mazatrol Matrix 2 CNC Control
Twin Opposed Spindles
Upper & Lower Turrets
C Axis Spindle Rotation Both Spindles
Y-Axis Milling Capability on Both Turrets
Parts Exit Conveyor
High Pressure Coolant
Chip Conveyor
HOURS:
Power On Hours...........18,503
Auto Operation Hours.....15,128
Auto Cut Hours...........13,460
Total Cut 1st Turret.....8,243
Total Cut 2nd Turret.....7,162
Total Time...............18,503
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
