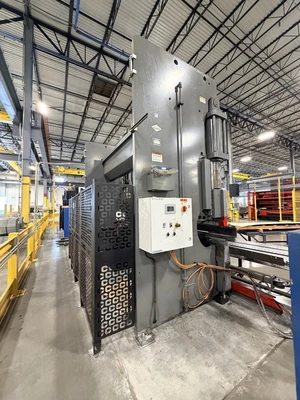

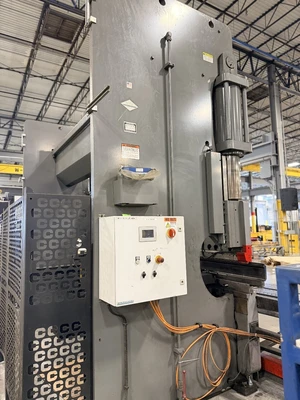

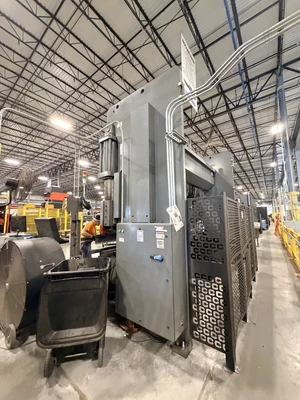

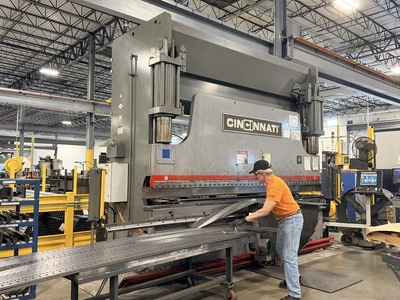

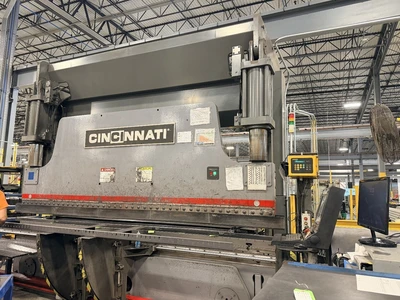

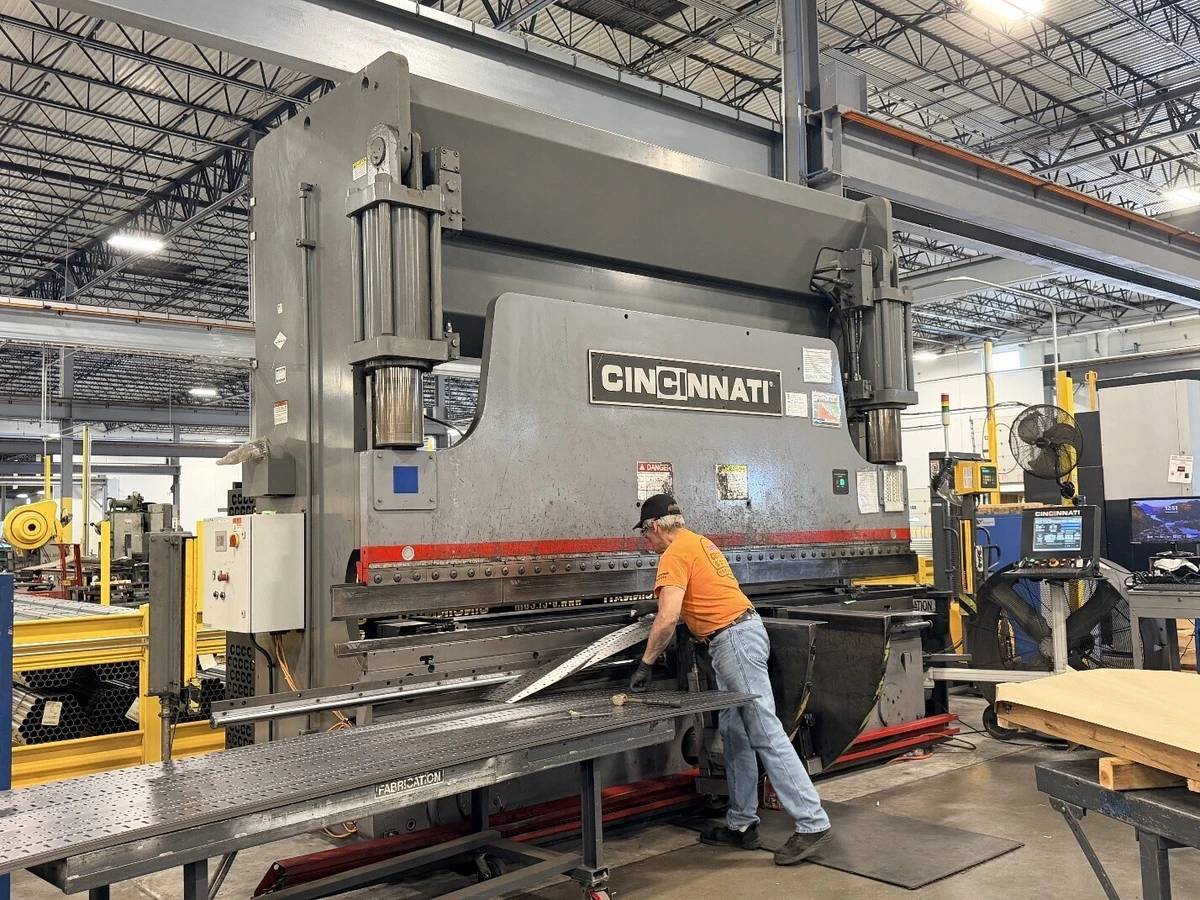

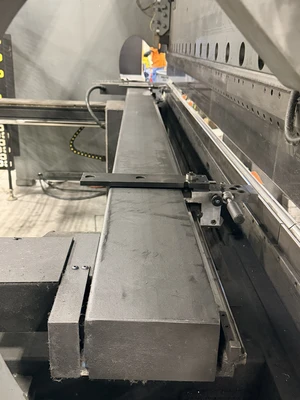

2017 CINCINNATI 230PF+12 Press Brake

Bending Capacity.......................1/2" x 8'
Total Overall Die Surface..............14'
Clear Distance Between Housings........12'6-1/4"
Bed Height above FLoor.................36"
Bed Top Width..........................5-1/2"
Main Motor.............................15 HP
Max Speed at Full Tonnage..............26 IPM
Max Tonnage at Full Form Speed.........172
Standard Stroke Length.................10"
Maximum Stroke.........................22"

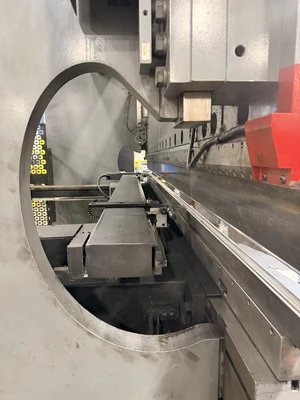

Throat Clearance from Center of Dies...8"
Die Space Open Height..................17"
Die Space Closed Height................7"
Ram Speed High Approach................155 IPM
Ram Seed Variable Forming..............1 - 35 IPM
Return Speed...........................175 IPM
Machine Weight.........................33,500 LBS
Auto Crown Additional Weight...........8,900 LBS
Overall Height Above Floor.............126.25"
