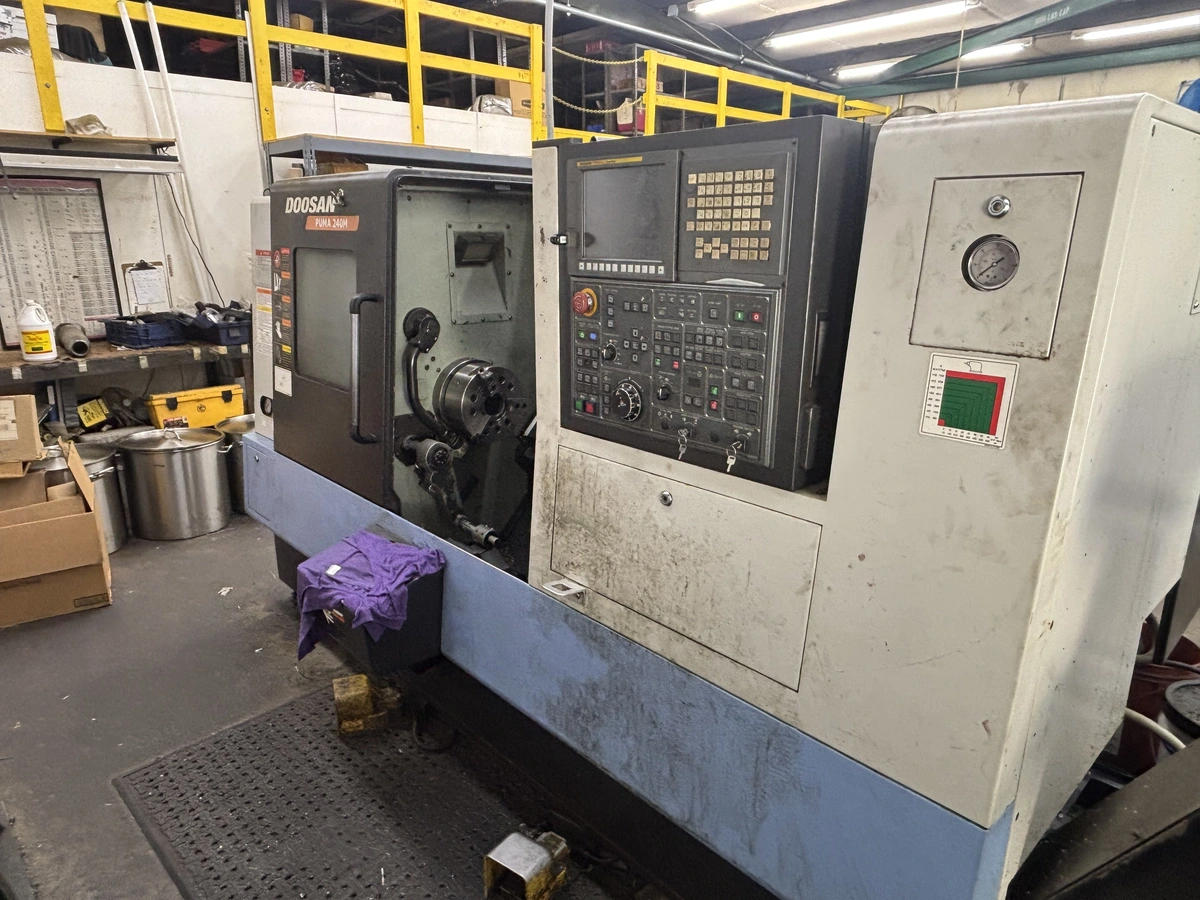

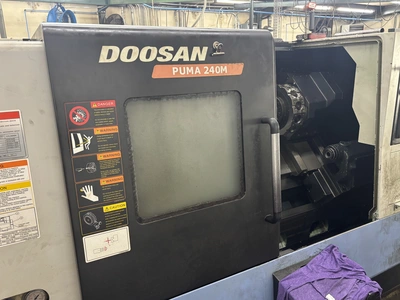

2013 Doosan Puma 240MC

Swing Over Bed..............21.7"
Max Turning Diameter........15.4"
Max Machining Length........22.2"
X-Axis Travel...............9.5"
Z-Axis Travel...............22.83"
C-Axis Indexing.............0.001°
Main Motor..................25 HP
Spindle Nose................A2-8
Spindle Bore................3.56"
Bar Capacity................3"
Spindle Speed...............3,500 RPM

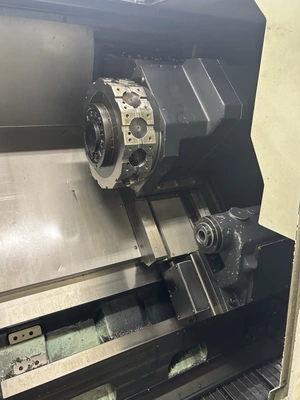

Number of Tools.............12 Station Turret
Live Tool Motor.............7.5 HP
Live Tool Speed.............5,000 RPM
Electrics...................220V/3PH/60HZ
Machine Dimensions..........125" x 67" 72"
Machine Weight..............10,500 LBS
