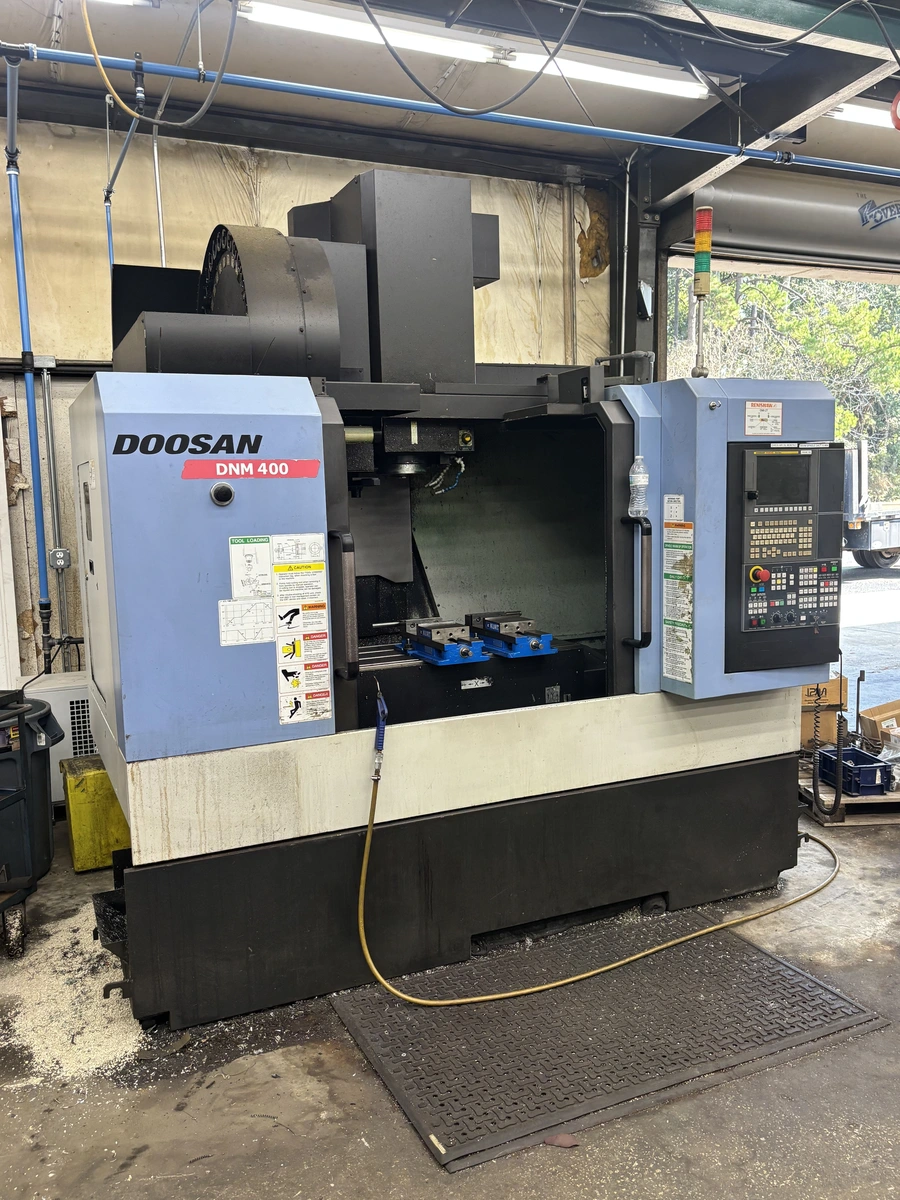

2013 Doosan DNM 400
Have one to sell?
ConditionUsed
1 available
2013 Doosan DNM 400 with Renishaw Probe.
TABLE SIZE........................36.22" x 17.13"
X-AXIS TRAVEL.....................30"
Y-AXIS TRAVEL.....................17.13"
Z-AXIS TRAVEL.....................20.08"
SPINDLE SPEED.....................8,000 RPM
SPINDLE MOTOR.....................27 HP
SPINDLE TAPER.....................CAT-40
TOOL CAPACITY (ATC)...............30
RAPID TRAVERSE (X,Y)..............1,417 IPM
RAPID TRAVERSE (Z)................1,181 IPM
ELECTRICS.........................220V/3PH/60HZ
APPROX MACHINE DIMENSIONS.........82.4" x 113.8" x 106"
APPROX MACHINE WEIGHT.............12,100 LBS

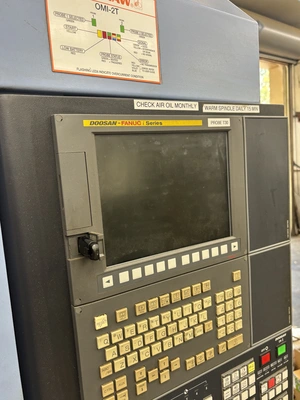

Fanuc i-Series CNC Control
Renishaw Probe
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
