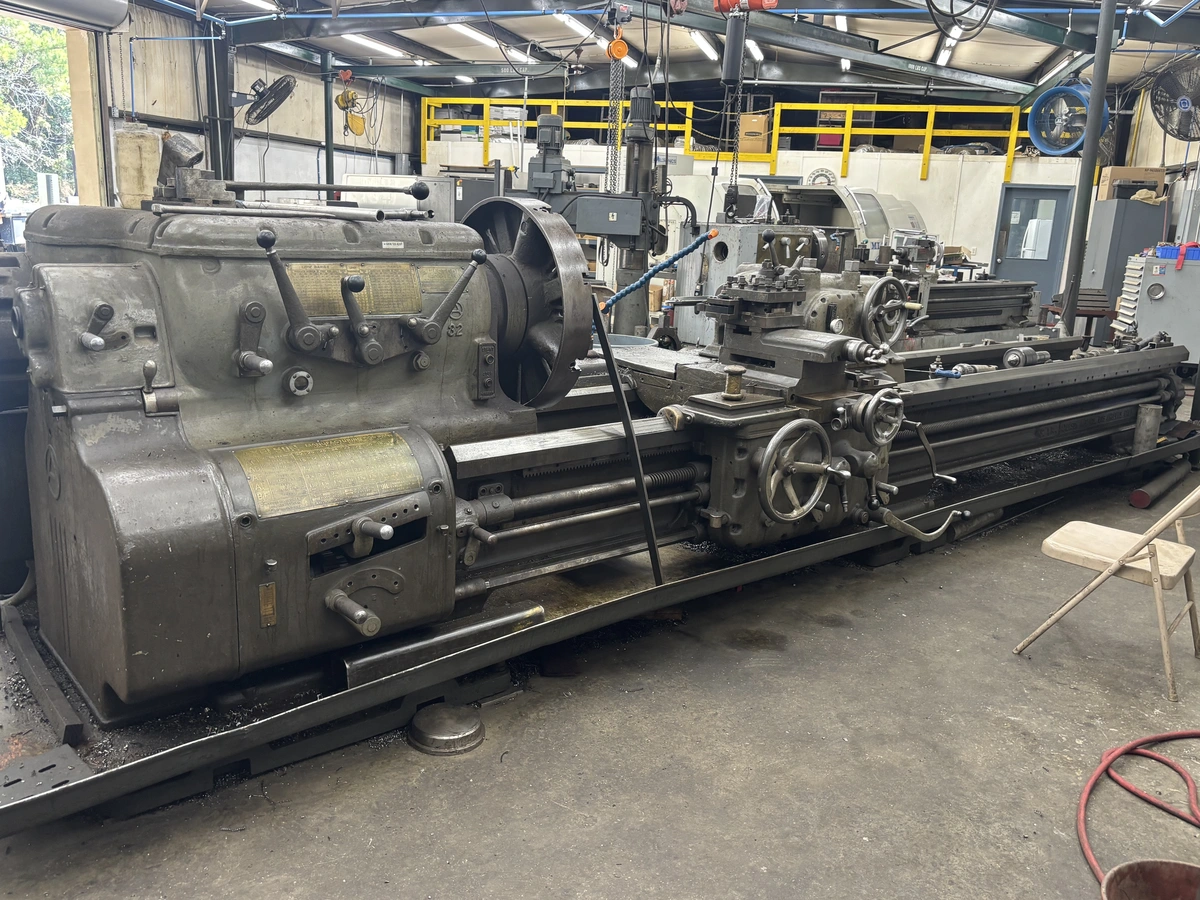

Used AXELSON 32 | Engine Lathes

MODEL ...................... 32
SWING OVER WAYS ............ 45-1/2"
SWING OVER CROSS ........... 31"
CENTERS .................... 144"
SPINDLE SPEEDS ............. (24) 6 TO 555 RPM
THREADS .................... (54) 1 TO 30 TPI
FEEDS ...................... (54) .0045 TO .300 IPR
TAILSTOCK TRAVEL ........... 9"
SPINDLE HOLE ............... 2-3/8"
TAPER ...................... YES
CHUCK ...................... 32" 4 JAW
RAPID TRAVERSE ............. HYDRAULIC
CHIP PANS .................. YES
MOTOR ...................... 25 HORSEPOWER

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
