2019 Hyundai Wia E160A
Have one to sell?
ConditionUsed
1 available

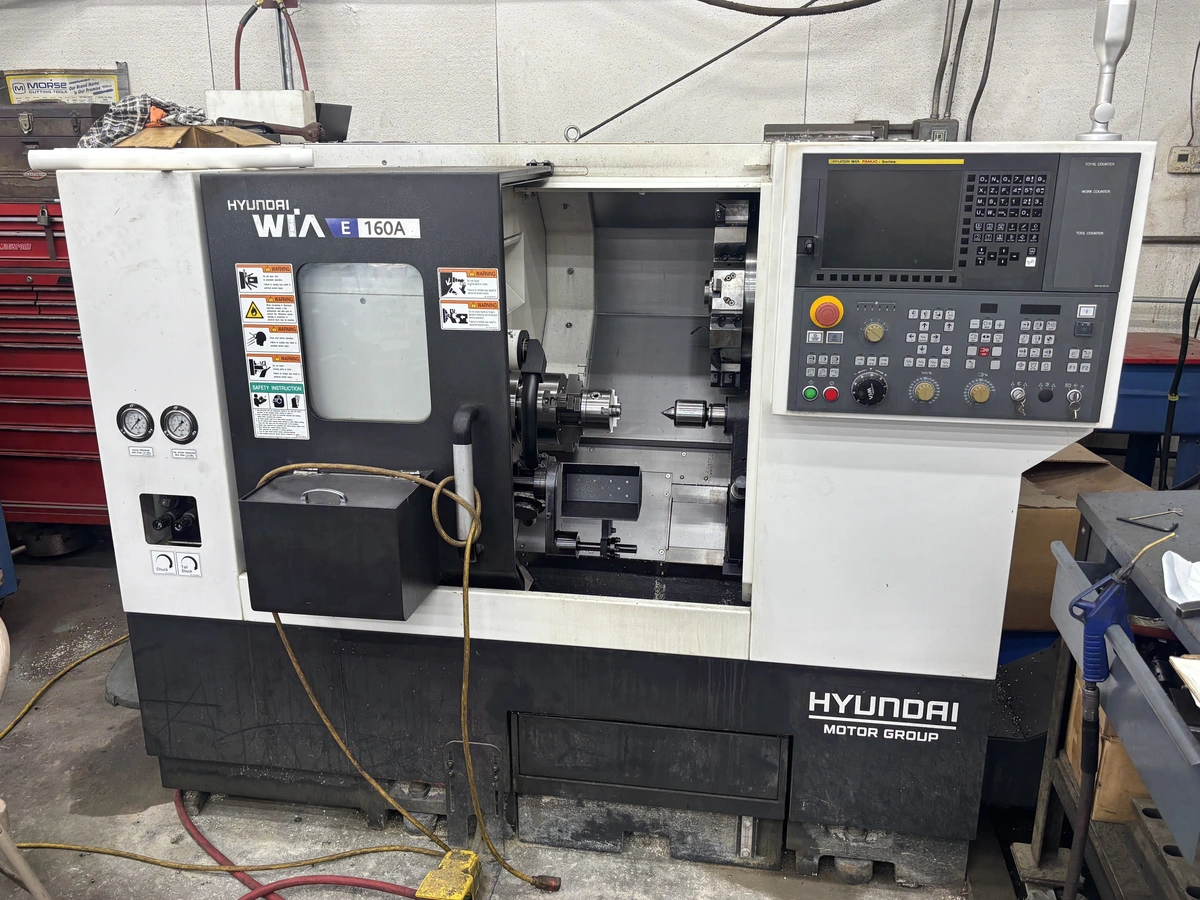

2019 Hyundai Wia E160A with Fanuc Control, 6" Chuck, Parts Catcher, Tool Presetter, Tailstock, and Chip Conveyor.
Maximum Swing.................18.9"
Maximum Turning Diameter......11"
Maximum Turning Length........11.8"
X-Axis Travel.................6.5"
Z-Axis Travel.................13"
Spindle Motor.................15 HP
Spindle Nose..................A2-5
Spindle Bore..................2.1"
Bar Capacity..................1.78"
Chuck Size....................6"
Spindle Speed.................6,000 RPM
Rapid Traverse Rates..........1,181 IPM
Number of Tools...............12 Station Turret
Electrics.....................220V/3PH/60HZ
Machine Weight................5,300 LBS

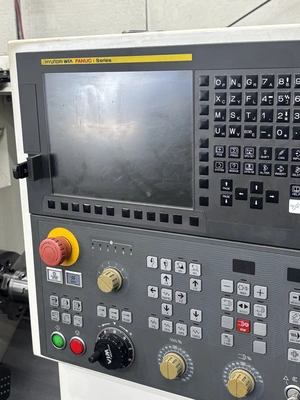

Fanuc I-Series CNC Control
6" 3-Jaw Chuck
Tool Presetter
Parts Catcher
Tail Stock
Rear Discharge Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2019 Hyundai Wia E160A with Fanuc Control, 6" Chuck, Parts Catcher, Tool Presetter, Tailstock, and Chip Conveyor.
Imperial
| Swing | 18.9" |
| Machining Length | 11.8" |
| # Axis | 2 |
| Chuck Size | 6" |
| Bar Capacity | 1.78" |
| Power | 15 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 11" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Fanuc i-Series) |
| Weight | 5,300 LBS |
Maximum Swing.................18.9"
Maximum Turning Diameter......11"
Maximum Turning Length........11.8"
X-Axis Travel.................6.5"
Z-Axis Travel.................13"
Spindle Motor.................15 HP
Spindle Nose..................A2-5
Spindle Bore..................2.1"
Bar Capacity..................1.78"
Chuck Size....................6"
Spindle Speed.................6,000 RPM
Rapid Traverse Rates..........1,181 IPM
Number of Tools...............12 Station Turret
Electrics.....................220V/3PH/60HZ
Machine Weight................5,300 LBS
Fanuc I-Series CNC Control
6" 3-Jaw Chuck
Tool Presetter
Parts Catcher
Tail Stock
Rear Discharge Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
