2019 Hyundai Wia F650/50
Have one to sell?
ConditionUsed
1 available

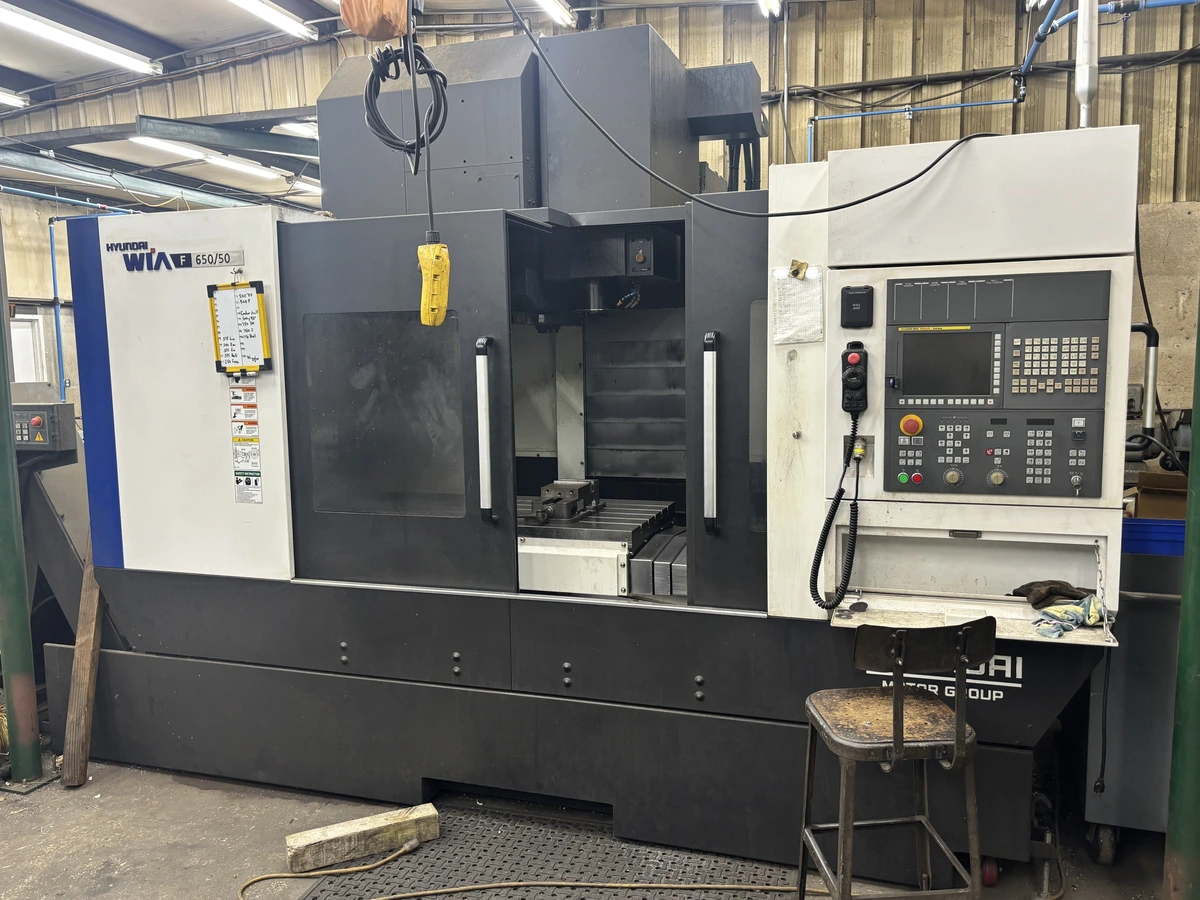

2019 Hyundai Wia F650/50 with Fanuc I-Series Control, 6,000 RPM, CAT-50 Spindle, 24 Station ATC, and Chip Conveyor

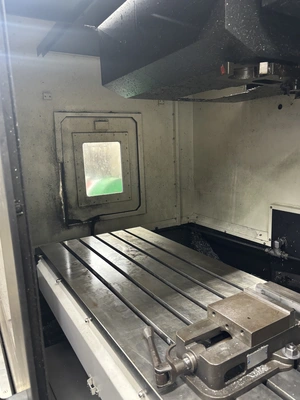

Table Size................62.9" × 25.9"
Maximum Table Load........2,866 Lbs
X-Axis Travel.............55.1"
Y-Axis Travel.............26"
Z-Axis Travel.............25"
Spindle Motor.............20 HP
Spindle Taper.............CAT-50
Spindle Speed.............6,000 RPM
Rapid Traverse Rates......36 / 36 / 30 m/min
Number of Tools...........24 ATC
Electrics.................220V/3PH/60HZ
Weight....................21,000 Lbs

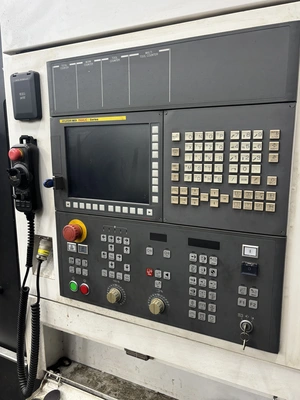

Fanuc i-Series CNC Control
RS-232C & LANport
Remote Pendant

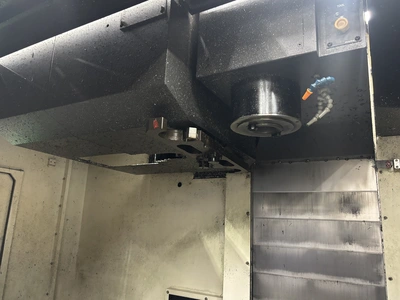

6,000 RPM, CAT-50 Spindle
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2019 Hyundai Wia F650/50 with Fanuc I-Series Control, 6,000 RPM, CAT-50 Spindle, 24 Station ATC, and Chip Conveyor
Imperial
| X | 55.1" |
| Y | 26" |
| Z | 25" |
| Power | 20 hp |
| RPM | 6,000 RPM |
| # ATC | 24 |
| Taper | CAT-50 |
| Table-W | 62.9" |
| Table-L | 25.9" |
| # Axis | 3 |
| Control | CNC (Fanuc i Series) |
| Weight | 21,000 LBS |
Table Size................62.9" × 25.9"
Maximum Table Load........2,866 Lbs
X-Axis Travel.............55.1"
Y-Axis Travel.............26"
Z-Axis Travel.............25"
Spindle Motor.............20 HP
Spindle Taper.............CAT-50
Spindle Speed.............6,000 RPM
Rapid Traverse Rates......36 / 36 / 30 m/min
Number of Tools...........24 ATC
Electrics.................220V/3PH/60HZ
Weight....................21,000 Lbs
Fanuc i-Series CNC Control
RS-232C & LANport
Remote Pendant
6,000 RPM, CAT-50 Spindle
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
