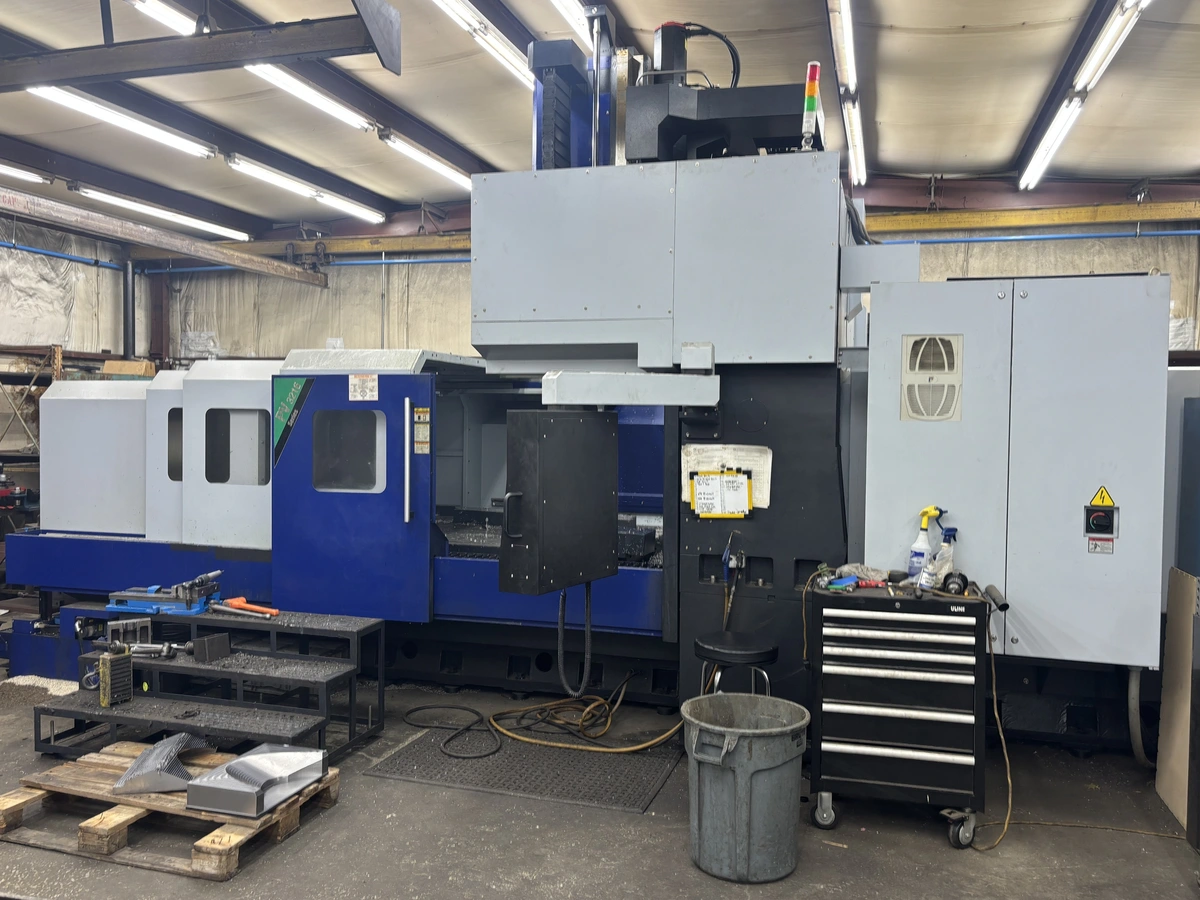

2023 Campro PV-3216 Double Column Machining Center

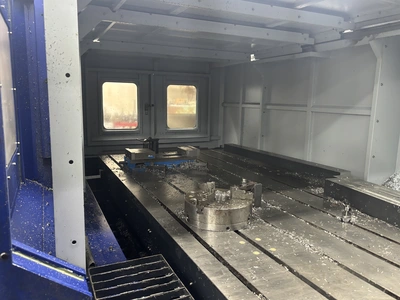

TABLE:
Table loading area......................129.91” x 57.08”
Allowable table load....................17,637 lbs.
T Slots, width x spacing x slots........0.86” X 8”

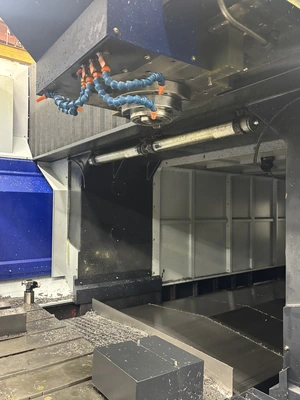

SPINDLE:
Spindle taper...........................CAT-50 Big Plus
Spindle RPM.............................6,000 RPM
Spindle Power Output....................35 HP
Spindle torque..........................621 ft. lbs.
Spindle Driving Method..................Gear Type
FEED:
X-Axis Travel...........................125.98”
Y-Axis Travel...........................62.98”
Z-Axis Travel...........................29.52”
Spindle Nose to Table Surface...........7.87” – 37.40”
Distance between Columns................68.89”
Rapid Traverse X and Y-Axis.............787 IPM
Rapid Traverse Z-Axis...................629.9 IPM
AUTOMATIC TOOL CHANGER:
Number of Tools.........................32 ATC
Tool Shank..............................CAT-50 Big Plus
Max. Tool Dia...........................4.92"
With adjacent pocket open...............8.46
Max. Tool Length........................13.7"
Max. Tool Weight........................44.1 LBS
Tool Selection..........................Method Random
TANK CAPACITY:
Coolant Tank............................53 Gallons
Lubricating Tank........................0.5 Gallons
Hydraulic Tank..........................30 Gallons
POWER SUPPLY:
Electric Power Supply Voltage / KVA.....220V 3 Phase (60HZ) / 40
Minimum Air Supply......................85 PSI (3/8 ID Supply Hose)
FEED AND ACCURACY:
Cutting Feed Rate.......................393 IPM
Least Command Increment.................0.001 MM
Positioning Accuracy....................+/- 0.00020" (full stroke)
Repeatability...........................+/- 0.00008"
MACHINE:
Floor Space Required (L X W)............259.8" x 188.9"
Height..................................155.51”
Machine Weight..........................59,524 lbs
