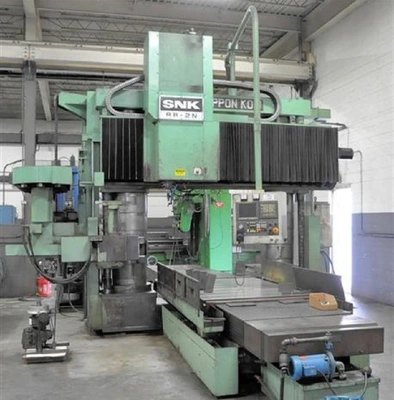

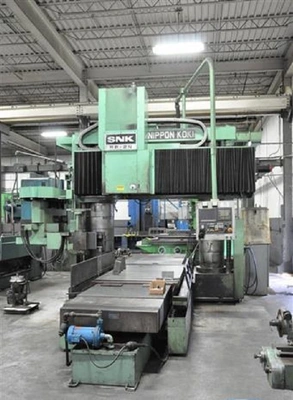

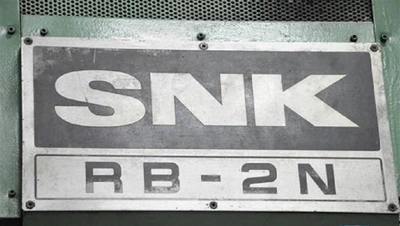

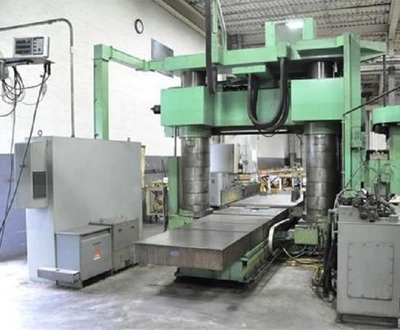

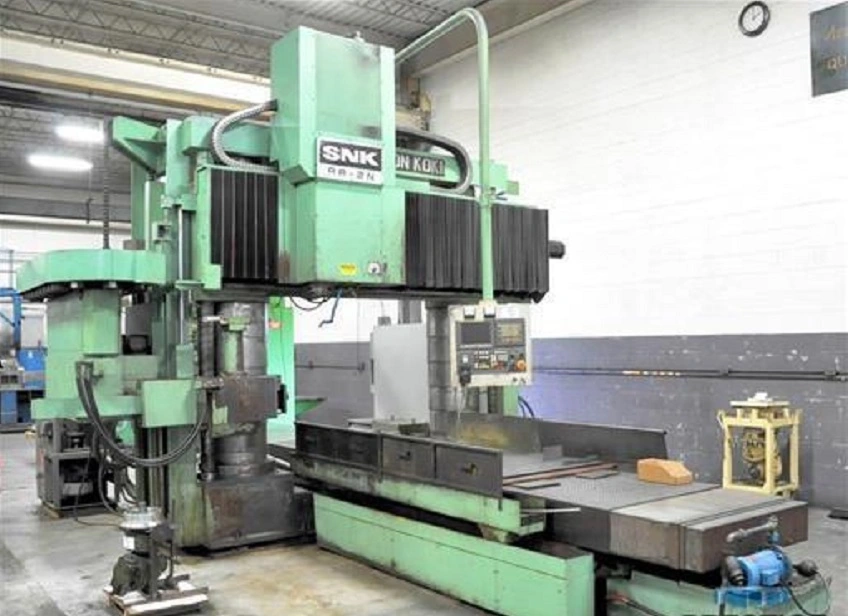

SNK RB-2N CNC Bridge Type Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
SNK RB-2N CNC Bridge Type Vertical Machining Center - Rebuilt 2010, Fanuc Oi Control, Adjustable Cross rail, 2,000 RPM, CAT-50 Spindle, 24 ATC.

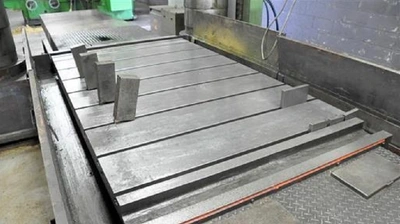

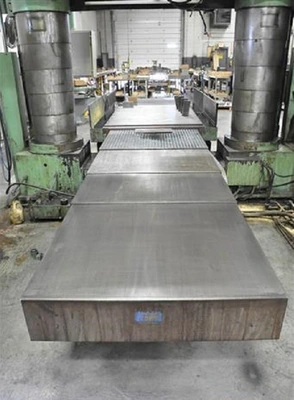

TABLE DIMENSIONS.......................47" X 84"
MAXIMUM TABLE LOAD.....................11,000 LBS
DISTANCE, TABLE TOP TO SPINDLE END.....51.18"
DISTANCE BETWEEN COLUMNS...............65"
X-AXIS, TABLE TRAVEL...................92"
Y-AXIS HEAD TRAVEL.....................66.9"
Z-AXIS SPINDLE QUILL TRAVEL............15.7"
CROSS RAIL ELEVATION...................39.37"
SPINDLE MOTOR..........................30 HP
SPINDLE TAPER..........................CAT-50
SPINDLE SPEED..........................2,000 RPM
RAPID FEED RATE, X/Y-AXES..............393 IPM
RAPID FEED RATE, Z-AXIS................188 IPM
CUTTING FEED RATE, ALL AXES............0.039 - 188 IPM
APPROXIMATE MACHINE WEIGHT.............48,500 LBS

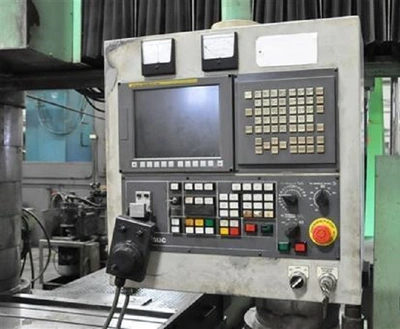

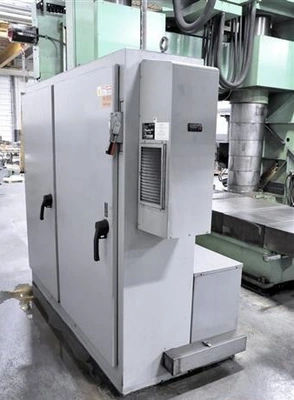

FANUC 0I CNC CONTROL
ADJUSTABLE CROSSRAIL

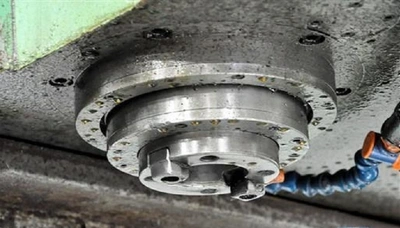

2,000 RPM, CAT-50 SPINDLE

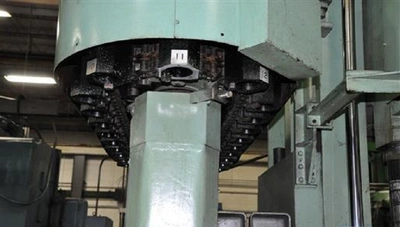

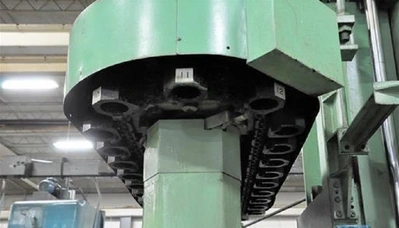

24-POSITION AUTOMATIC TOOL CHANGER

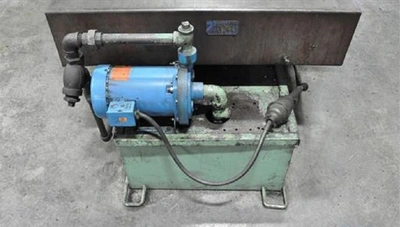

COOLANT TANK
CHIP SHIELDS
**MACHINE WAS REBUILT & RETROFIT IN 2010**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
SNK RB-2N CNC Bridge Type Vertical Machining Center - Rebuilt 2010, Fanuc Oi Control, Adjustable Cross rail, 2,000 RPM, CAT-50 Spindle, 24 ATC.
Imperial
| X | 92" |
| Y | 66.9" |
| Z | 15.7" |
| Power | 30 hp |
| RPM | 2,000 RPM |
| # ATC | 24 |
| Taper | CAT 50 |
| Table-W | 47" |
| Table-L | 84" |
| Control | CNC (Fanuc Oi) |
| Weight | 48,500 LBS |
TABLE DIMENSIONS.......................47" X 84"
MAXIMUM TABLE LOAD.....................11,000 LBS
DISTANCE, TABLE TOP TO SPINDLE END.....51.18"
DISTANCE BETWEEN COLUMNS...............65"
X-AXIS, TABLE TRAVEL...................92"
Y-AXIS HEAD TRAVEL.....................66.9"
Z-AXIS SPINDLE QUILL TRAVEL............15.7"
CROSS RAIL ELEVATION...................39.37"
SPINDLE MOTOR..........................30 HP
SPINDLE TAPER..........................CAT-50
SPINDLE SPEED..........................2,000 RPM
RAPID FEED RATE, X/Y-AXES..............393 IPM
RAPID FEED RATE, Z-AXIS................188 IPM
CUTTING FEED RATE, ALL AXES............0.039 - 188 IPM
APPROXIMATE MACHINE WEIGHT.............48,500 LBS
FANUC 0I CNC CONTROL
ADJUSTABLE CROSSRAIL
2,000 RPM, CAT-50 SPINDLE
24-POSITION AUTOMATIC TOOL CHANGER
COOLANT TANK
CHIP SHIELDS
**MACHINE WAS REBUILT & RETROFIT IN 2010**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
