2005 MORI SEIKI NL1500SMC/500
Have one to sell?
ConditionUsed
1 available

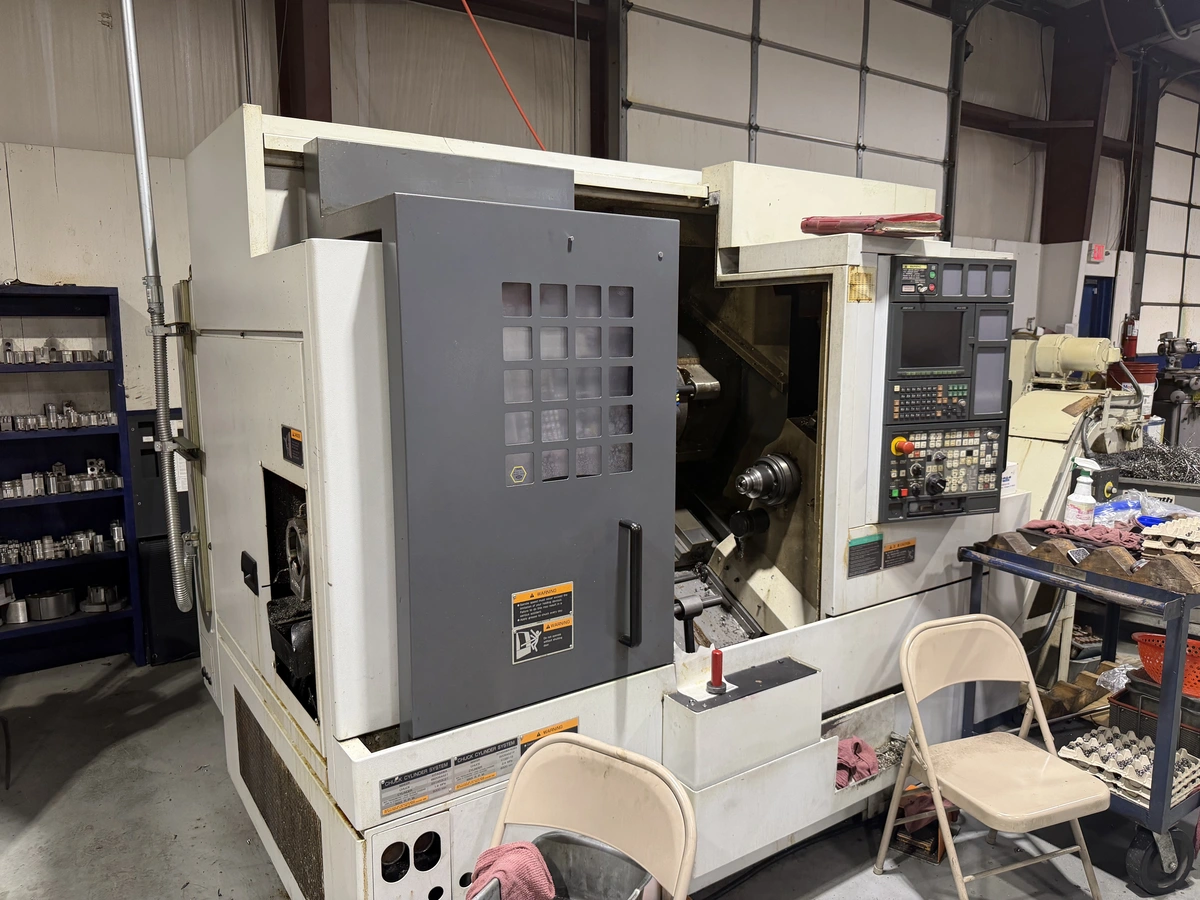

2005 Mori Seiki NL1500SMC/500 with Collet Chucks on both Spindles, Tool Setter, Parts Catcher, Sub-Spindle, Live Tooling, and Chip Conveyor
Maximum Swing over Bed...........25.6"
Maximum Turning Diameter.........14.02"
Maximum Turning Length...........20.28"
Spindle Bore.....................2.6"
Maximum Bar Capacity.............2.05"
X-Axis Travel....................11.02"
Z-Axis Travel....................19.29"
Spindle Motor....................15 HP
Spindle Speed....................6,000 RPM
Milling Spindle Motor............7.5 HP
Milling Speed....................6,000 RPM

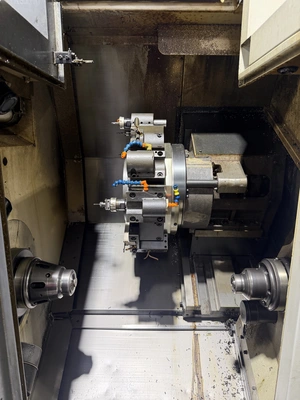

Number of Tools..................12 Station Turret
Sub-Spindle Motor................15 HP
Sub-Spindle Speed................6,000 RPM
Sub-Spindle Bore.................1.7"
Electrics........................220V/3PH/60HZ
Machine Weight...................12,125 LBS

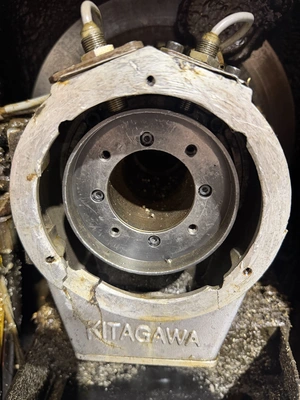

Collet Chucks Both Spindles
Tool Setter
Parts Catcher
Sub-Spindle
Live Tooling
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2005 Mori Seiki NL1500SMC/500 with Collet Chucks on both Spindles, Tool Setter, Parts Catcher, Sub-Spindle, Live Tooling, and Chip Conveyor
Imperial
| Swing | 25.6" |
| Machining Length | 20.2" |
| Chuck Size | 8" |
| Bar Capacity | 2.05" |
| Power | 15 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 14.02" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Weight | 12,125 LBS |
Maximum Swing over Bed...........25.6"
Maximum Turning Diameter.........14.02"
Maximum Turning Length...........20.28"
Spindle Bore.....................2.6"
Maximum Bar Capacity.............2.05"
X-Axis Travel....................11.02"
Z-Axis Travel....................19.29"
Spindle Motor....................15 HP
Spindle Speed....................6,000 RPM
Milling Spindle Motor............7.5 HP
Milling Speed....................6,000 RPM
Number of Tools..................12 Station Turret
Sub-Spindle Motor................15 HP
Sub-Spindle Speed................6,000 RPM
Sub-Spindle Bore.................1.7"
Electrics........................220V/3PH/60HZ
Machine Weight...................12,125 LBS
Collet Chucks Both Spindles
Tool Setter
Parts Catcher
Sub-Spindle
Live Tooling
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
