2014 OMAX 80X Waterjet
Have one to sell?
ConditionUsed
1 available

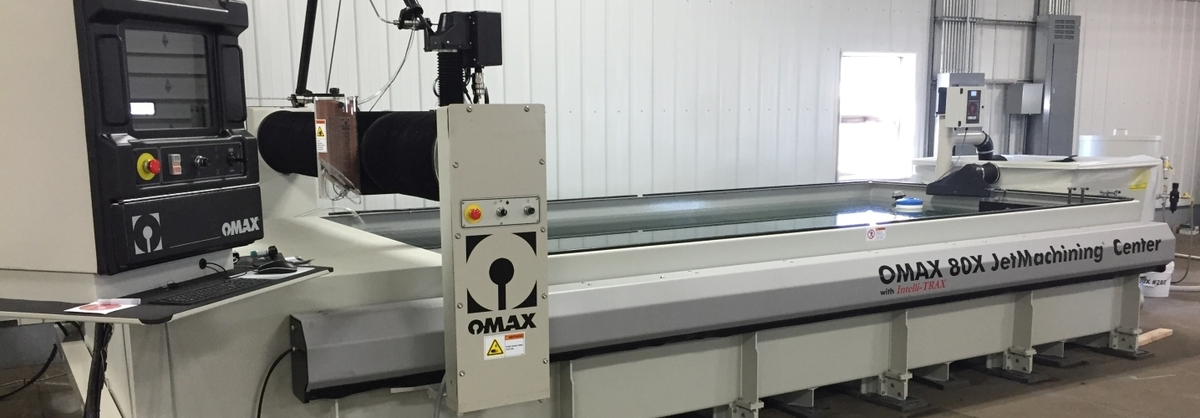

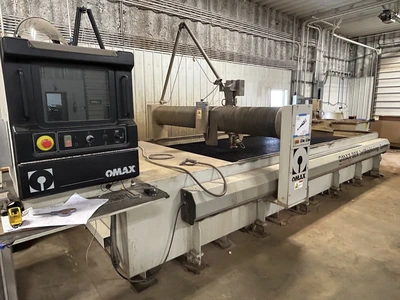

2014 OMAX 80X Waterjet with 50 HP, 60,000 PSI Pump, Tilting Head, Rotary Axis for Tube Cutting, Chiller, and Lots of Upgrades.
Table Size.....................180" x 89"
X-Axis Travel..................165"
Y-Axis Travel..................80"
Maximum Cutting Speed..........180 IPM
Material Supports Slats Size...4" x 1/8" Galvanized Steel
Weight (tank empty)............9,000 lbs
Height.........................144"
Operating Weight...............34,000 lbs
Floor Requirements.............4" Minimum Slab Thickness
Accuracy of Motion
Over one foot travel...........+/-0.003"
Repeatability..................+/-0.002"
Squareness.....................0.002" per foot
Straightness...................0.003" per foot
Backlash.......................0.0007" max

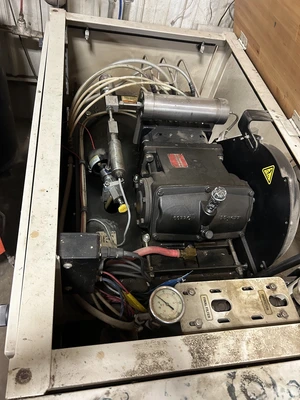

EnduroMAX P5060V 50-HP, 60,000 PSI Direct-Drive Waterjet Pump

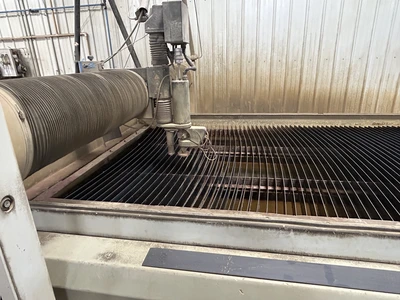

Tilting Head
MAXJET 5i Nozzle w/Fusible Mixing Tube .016"
600 lb. Abrasive Feed System
A-Jet
Chiller 24000 BTU/HR, 460V, 3 PH
Variable Speed Solids Removal System (VS-SRS)

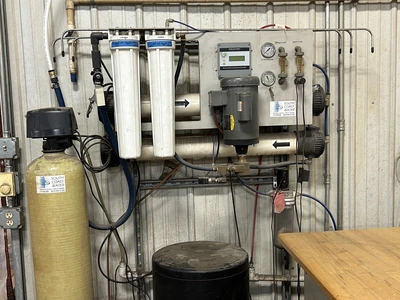

OMAX Reverse Osmosis System 110V
Terrain Follower for the A-Jet
EnduroMAX Major Pump Rebuild Kit
Nozzle Spares Kit, A-Jet
Rotary Axis for Cutting Tube
Rotary Axis - ER40 Collet Adapter Kit
Rotary Axis - Universal Adapter Flange Kit
Rotary Axis- Extension Cable Assembly
Rotary Axis Alignment Indicator and Case
Unlimited Seats of Software
Free Software Upgrades for the Life of Machine
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
