1966 MOORE-FOSDICK 44PG
Have one to sell?
ConditionUsed
1 available

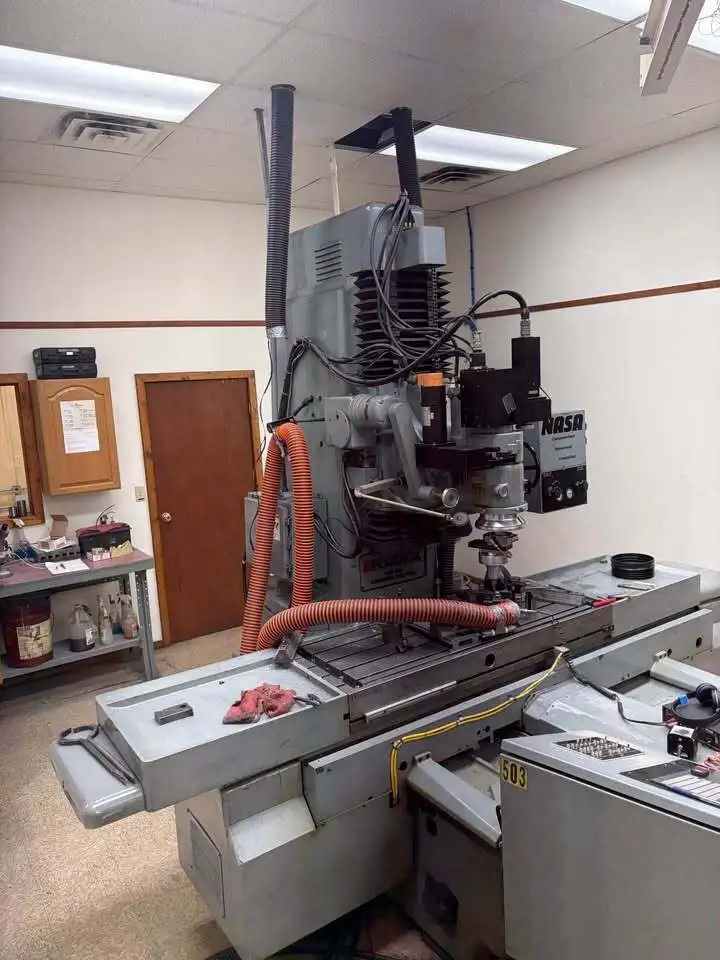

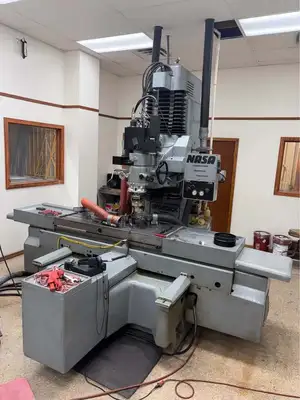

1966 MOORE-FOSDICK 44PG with 20" x 48" Table and NASA CNC Control. Lots of Tooling & Accessories Included.
***SPECS TAKEN FROM 1967 MOORE-FOSDICK 42G**
Working surface of table, 18"x42"
Longitudinal table travel, 36"
Cross table travel, 20"
Maximum distance spindle to table, 24-1/2"
Minimum distance spindle to table, 2"
Head travel on column, 19"
Variable spindle speeds, 40 to 250 RPM
Variable spindle feeds, 2 to 120 SPM
Grinding capacity, 3/16" to 5" diameter, 8" with adapter
Main spindle slide travel, 3-5/8"
Angular adjustment of spindle +/- 1-1/2 degrees
Floor space: 8'x9'x11'high
Weight approximately: 12,000 lbs.
