2012 MAKINO PS95
Have one to sell?
ConditionUsed
1 available

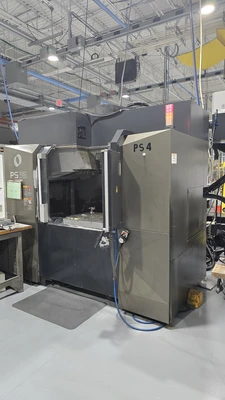

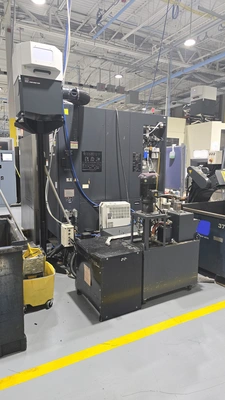

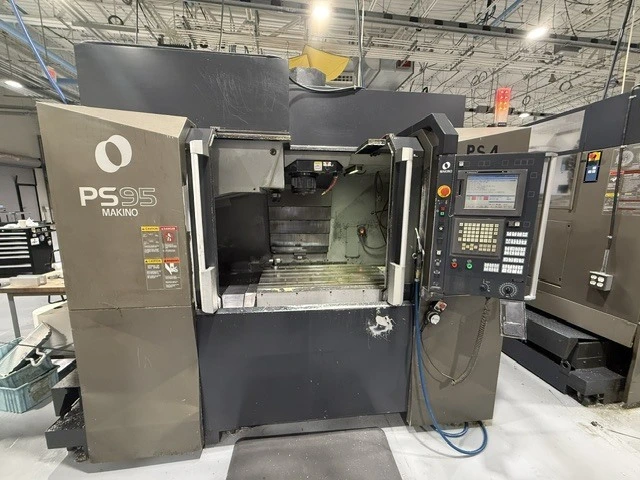

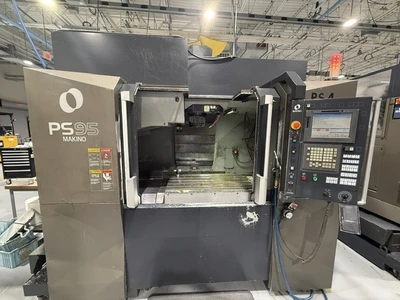

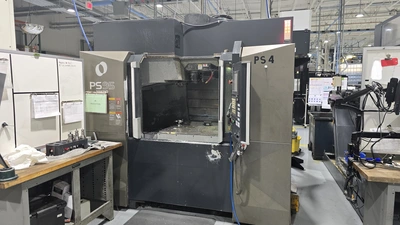

2012 Makino PS95 4-Axis CNC Vertical Machining Center with 1,000 PSI TSC, Pro P Control, 30 ATC, Tsudakoma RWE160 Rotary Table, Renishaw Part & Touch Probes.
Table Size.............................40" x 26"
Machine Travels (X/Y/Z)................36.2"/20"/18.1"
Spindle To Table Distance..............5.9" - 24"
Table Capacity.........................1763 LBS
Spindle Taper..........................CAT-40
Spindle Speeds.........................14,000 RPM
Rapid Traverse Rate (X/Y/Z)............1417/1417/1181 IPM
Maximum Cutting Feed Rate..............1181 IPM
Tool Changer Style.....................Side Mount Twin Arm
Tool Changer Capacity..................30
Tool Change Time.......................1.2 Seconds
Max Tool Length........................11.8"
Max Tool weight........................17.6 LBS
Spindle Drive..........................25 HP
Coolant System.........................43.00" Width: 34.00" Height: 54.00"
Chip Conveyor..........................140.00" Width: 45.00" Height: 73.00"
Chiller................................18.00" Width: 30.00" Height: 34.00"
Main Unit Dimensions...................98.00" Width: 92.00" Height: 95.00"
Machine Weight.........................19,000 LBS

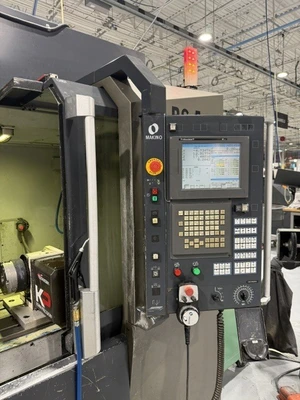

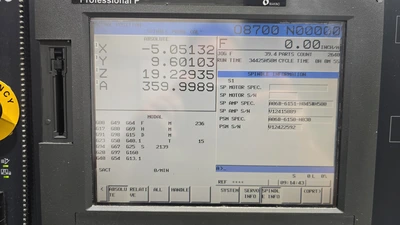

Makino Professional P CNC Control
14,000 RPM, CAT-40 Spindle
1000PSI Coolant Through Spindle
Tool Magazine Capacity 30 ATC
Chip Removal Chip Conveyor
4th axis ready
Tsudakoma RWE160 Rotary Table
Renishaw Part Probe
Renishaw Touch Probe
