2012 DOOSAN LYNX 220LC
Have one to sell?
ConditionUsed
1 available

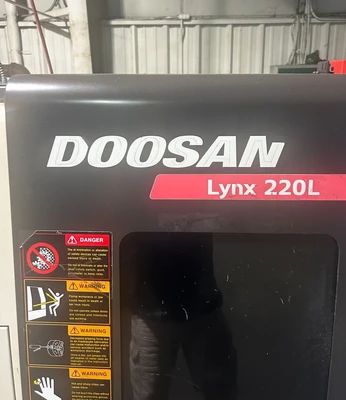

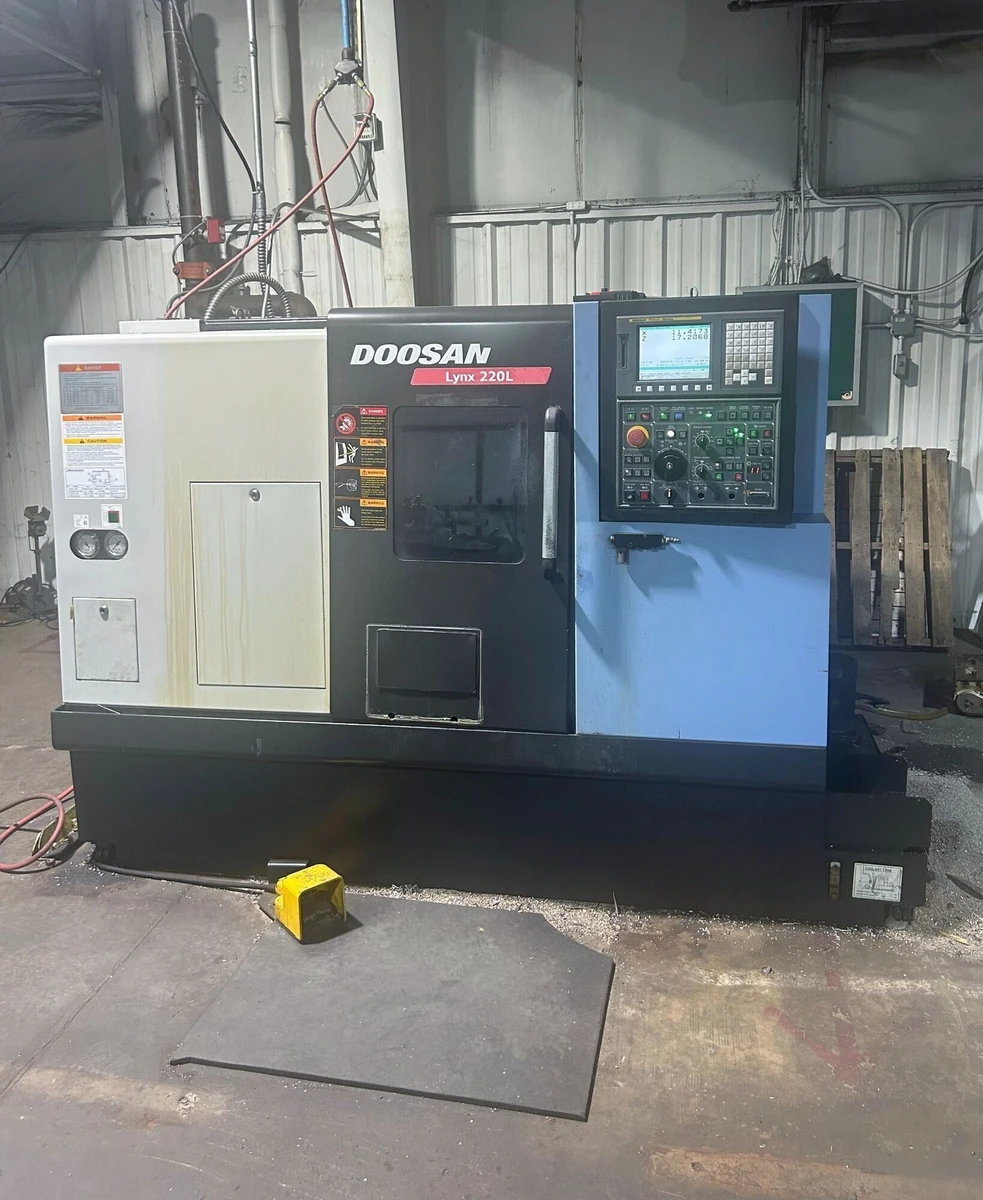

2012 Doosan Lynx 220LC CNC Turning Center with Fanuc Control, 8" Hydraulic Chuck, Tailstock, Tool Presetter, and Low Hours.
Swing Over Bed.................20"
Swing Over Carriage............11.4"
Max Turning Dia................12.7"
Max Cutting Length.............21"
X-Axis Travel..................7.5"
Z-Axis Travel..................11.8"
Spindle. Motor.................15 HP
Spindle Nose...................A2-5
Spindle Bar Capacity...........2.6"
Spindle Speed..................4,000 RPM
Rapid Traverse Rates...........1,400 IPM

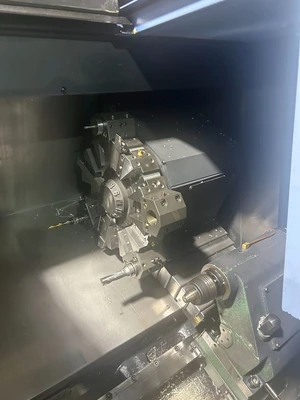

Turret Stations................12
Machine Weight.(approx)........7,190 LBS
Fanuc i-Series Control
21" Long Bed Cutting Length

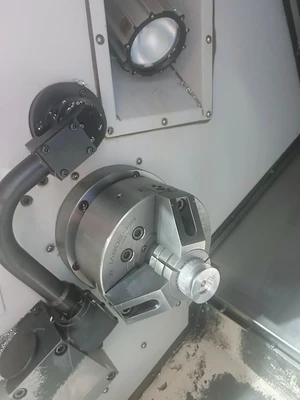

8" 3-Jaw Hydraulic Chuck
2.6" Bar Capacity
Tailstock
Tool Presetter
Chip Conveyor (NOT INSTALLED, NEEDS BELT REPAIR)

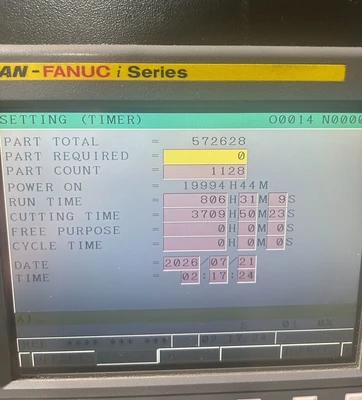

HOURS:
Power on Time........19,994
Run Time.............806
Cutting Time.........3,709
**MACHINE CUT PRIMARILY ALLOY STEEL (8620)**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
