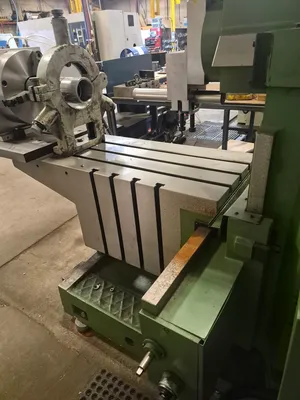

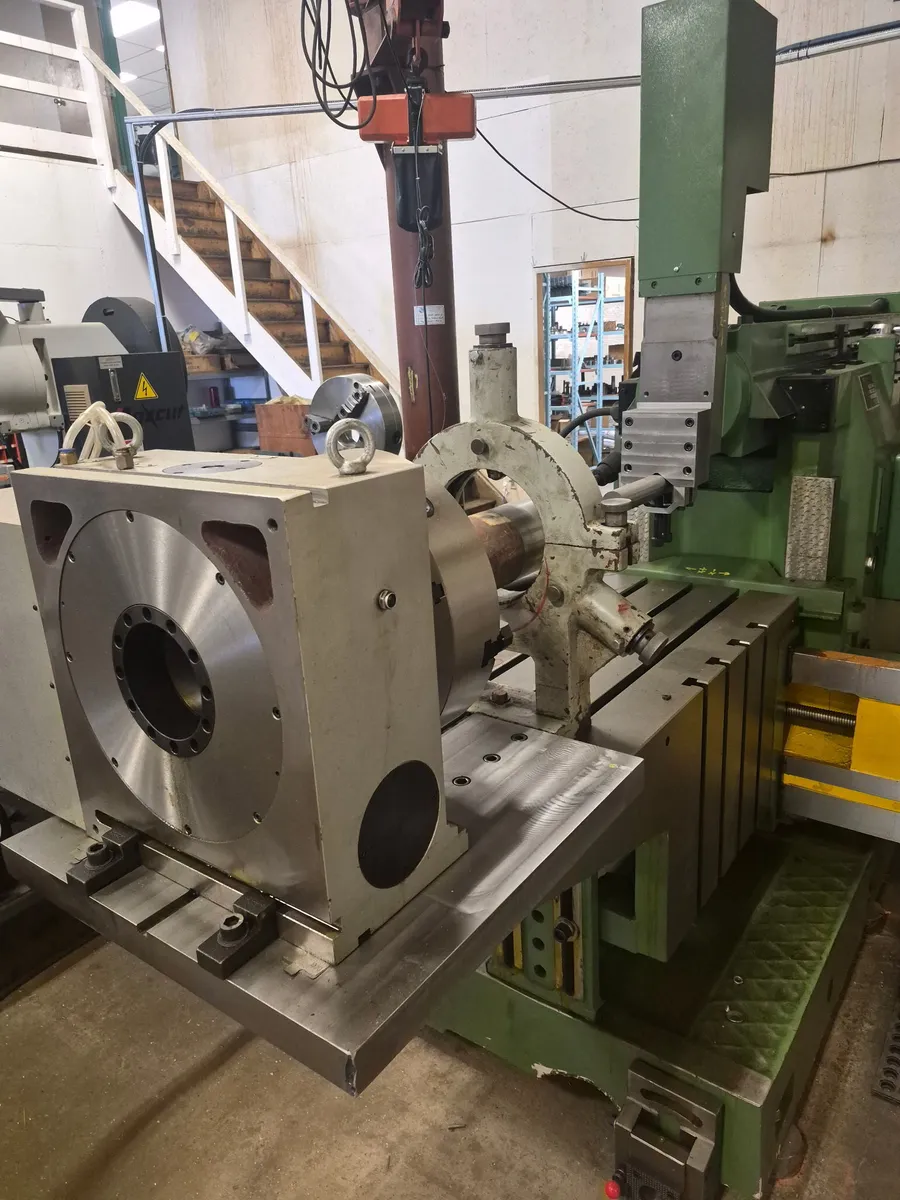

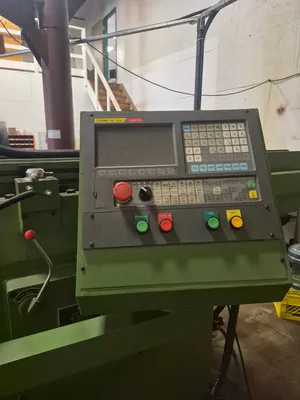

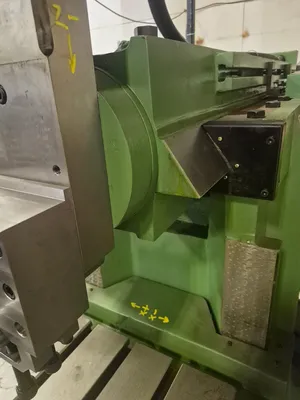

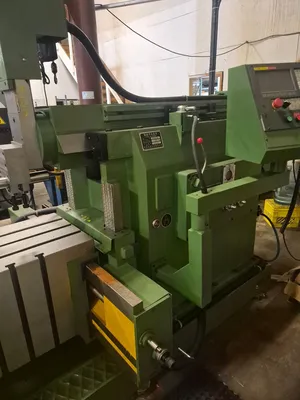

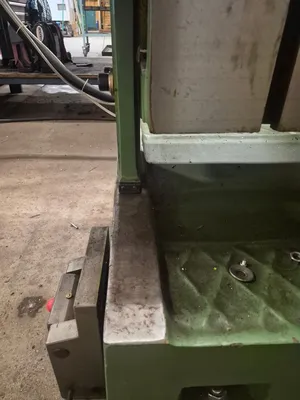

2020 SHANGDONG LUZHONG BK60125

Maximum Shaping Length....................................1250 mm
Maximum Table Cross Travel................................800 mm
Maximum Table Vertical Travel.............................380 mm
Bench Plane Size..........................................1250 x 500 mm
Ram from the Underside of Work Surface....................380 mm
Turret Maximum Working Stroke.............................160 mm
Turret Swivel Angle.......................................+/-60
Max Length of Planing Knife Holder Angle of Rotation......850 mm
Ram Working Speed.........................................3-38 M/Min
Ram Maximum Cutting Force.................................28 Kn
Lateral Speed of Table....................................0-6 M/Min
Vertical Direction Speed of Table.........................0-1.5 M/Min
On Work Surface Central T-Slot Width......................22 +0.052 mm
On Work Surface T-Slot Central Distance...................120 mm
Maximum Table Weight......................................500 KG
Maximum Size of the Planer................................30 x 45 mm
Main Motor................................................7.5 KW, 970 RPM
Overall Dimensions........................................4140 x 1550 x 1850 mm
Machine Weight............................................4500 KG
