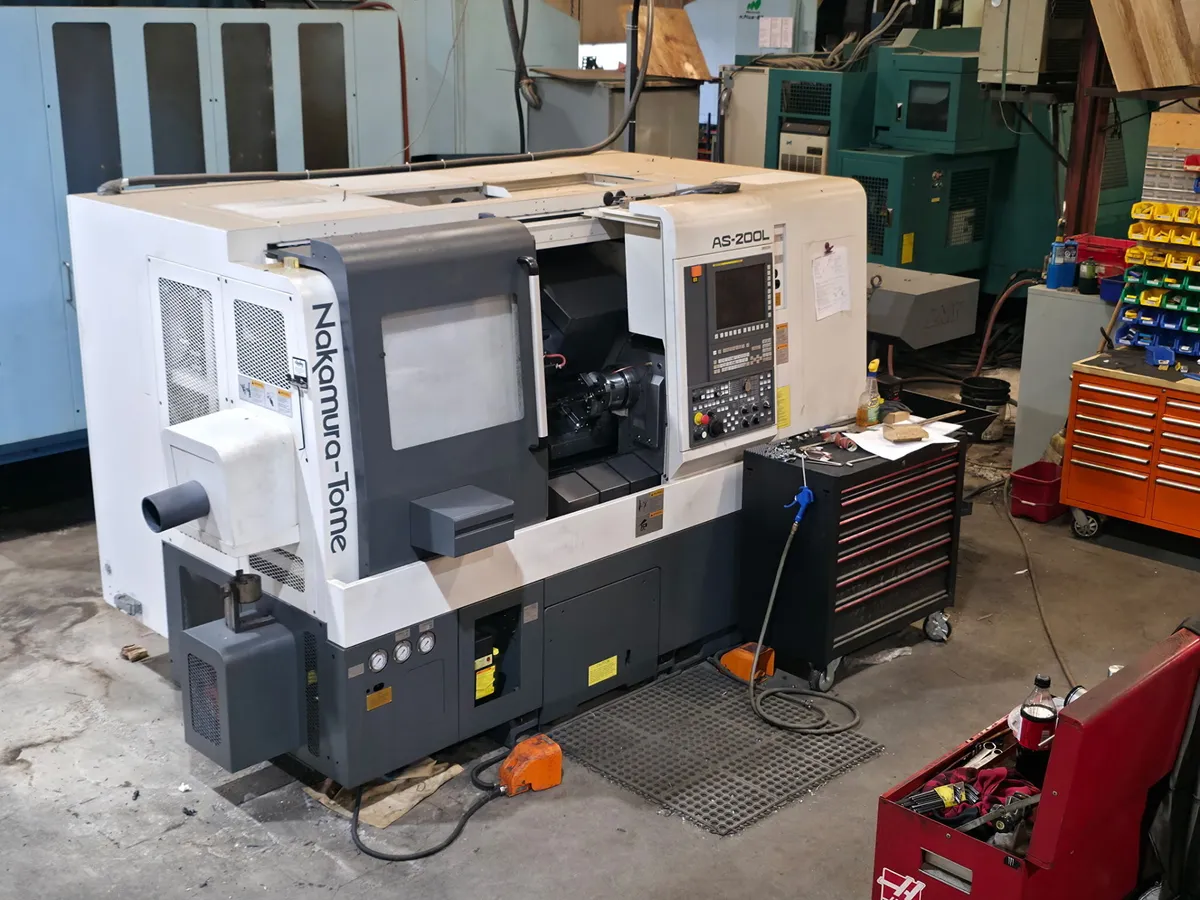

2023 NAKAMURA-TOME AS-200L
Have one to sell?
ConditionUsed
1 available

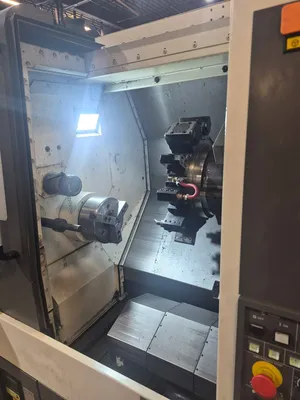

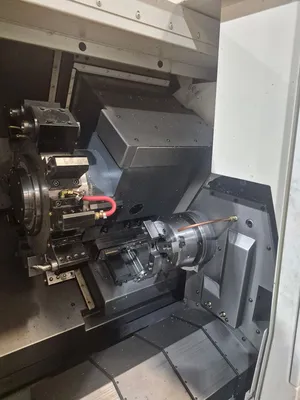

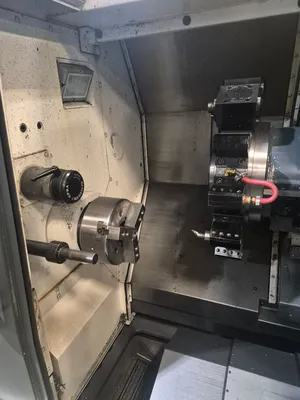

2023 NAKAMURA-TOME AS-200L with Fanuc Control, Live Tooling, Sub-Spindle, Y-Axis, Renishaw Tool Presetter, Parts Catcher, and Chip Conveyor.
Swing over Bed...............15.75"
Max Workpiece Swing Dia......12.6
Turning Diameter.............13.4"
Max Turning Length...........22.44"
Center Distance..............31.5"
Chuck Size...................8"
Bar Capacity.................2.55"
X-Axis Travel................8.95"
Y-Axis Travel................+/-1.61"
Z-Axis Travel................23.03"
C-Axis Index.................0.001°
Main Motor...................20 HP
Spindle Nose.................A2-6
Spindle Speed................4,500 RPM
Rapid Traverse (X/Y/Z).......944/236/1418 IPM
Sub-Spindle Motor............10 HP
Sub Spindle Chuck............6"
Sub-Spindle Bar Capacity.....1.7"
Turret Capacity..............12
Live Tooling Motor...........7.5 HP
Live Tooling Speed...........6,000 RPM
Machine Dimensions...........64" x 65" x 73"
Machine Weight...............13,300 LBS

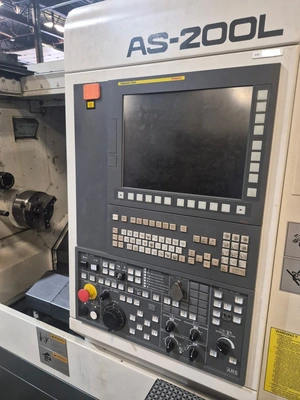

Fanuc CNC Control
Live Tooling
Sub-Spindle
Y-Axis
Renishaw HPRA Tool Presetter (High Precision Removable Arm)
Parts Catcher
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2023 NAKAMURA-TOME AS-200L with Fanuc Control, Live Tooling, Sub-Spindle, Y-Axis, Renishaw Tool Presetter, Parts Catcher, and Chip Conveyor.
Imperial
| Swing | 15.75" |
| Machining Length | 22.44" |
| Chuck Size | 8" |
| Bar Capacity | 2.55" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 13.38" |
| Tailstock | No |
| Live Tooling | Yes |
| Control | CNC (Fanuc CNC Control) |
| Dimensions | 64" x 65" x 73" |
| Weight | 13,300 LBS |
Swing over Bed...............15.75"
Max Workpiece Swing Dia......12.6
Turning Diameter.............13.4"
Max Turning Length...........22.44"
Center Distance..............31.5"
Chuck Size...................8"
Bar Capacity.................2.55"
X-Axis Travel................8.95"
Y-Axis Travel................+/-1.61"
Z-Axis Travel................23.03"
C-Axis Index.................0.001°
Main Motor...................20 HP
Spindle Nose.................A2-6
Spindle Speed................4,500 RPM
Rapid Traverse (X/Y/Z).......944/236/1418 IPM
Sub-Spindle Motor............10 HP
Sub Spindle Chuck............6"
Sub-Spindle Bar Capacity.....1.7"
Turret Capacity..............12
Live Tooling Motor...........7.5 HP
Live Tooling Speed...........6,000 RPM
Machine Dimensions...........64" x 65" x 73"
Machine Weight...............13,300 LBS
Fanuc CNC Control
Live Tooling
Sub-Spindle
Y-Axis
Renishaw HPRA Tool Presetter (High Precision Removable Arm)
Parts Catcher
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
