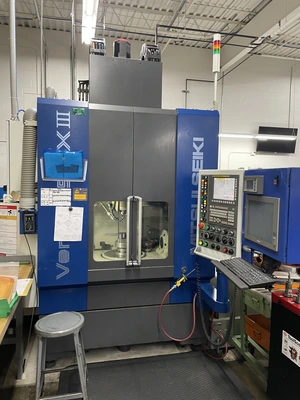

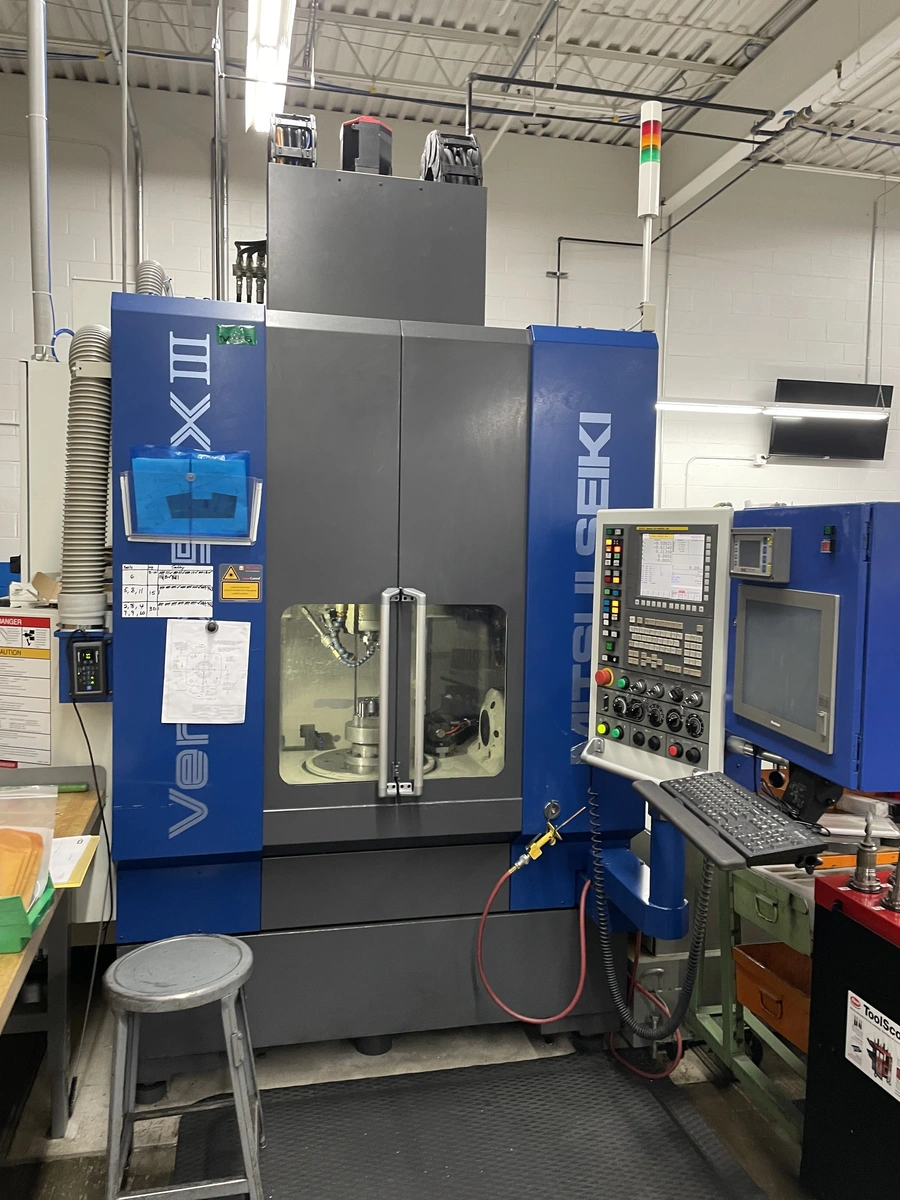

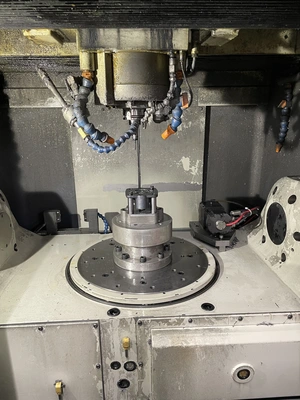

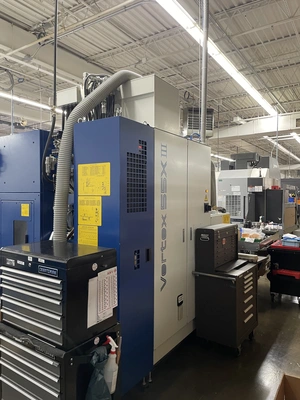

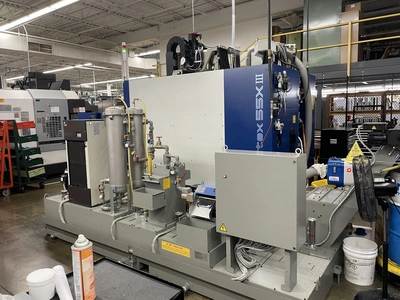

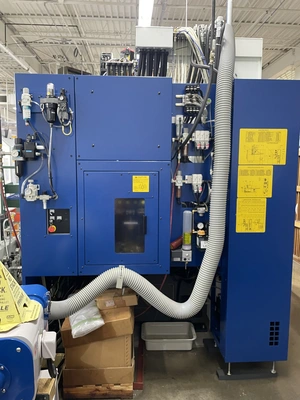

Mitsui Seiki Vertex 55X 5-Axis Vertical Machining & Grinding Center
Have one to sell?
ConditionUsed
1 available
2020 Mitsui Seiki Vertex 55X 5-Axis Vertical Machining & Grinding Center with 25,000 RPM, HSK-63A Spindle, Probes, 40 ATC, Three Air Powered Grinding Spindles, NSK Electric Spindle, Diamond Dresser, Renishaw Probe, Chiller, and More.
Working Surface.........................................15.74" Ø)
Maximum Work Size.......................................29.52" Ø x 20.66"
Maximum work piece swing (with max tool size)...........17.71" Ø X 12.79"
Max permissible load....................................770 lbs
Distance from table top to spindle nose.................3.93" ~ 23.62"
Height from floor to table top..........................35.43"
X-Axis longitudinal stroke (head traverse)..............21.65"
Y-Axis cross stroke (column traverse)...................23.62"
Z-Axis vertical stroke (spindle)........................19.68"
A-Axis (tilt)...........................................120 deg. (+15 ~ -105 degrees)
C-Axis (rotary).........................................Infinite 360,000 positions
Power (max.)............................................24 HP
Torque (max.)...........................................14 ft-lbs (30 min)/ 10 ft-lbs (cont
Spindle Taper...........................................HSK-A63
Maximum Spindle Speed...................................25,000 RPM
Rapid traverse X, Y and Z axis..........................1,890 IPM
Rapid traverse A axis (tilting).........................30 RPM
Rapid traverse C axis (rotary)..........................50 RPM
Cutting feed X, Y and Z axis............................0.004 ~ 1,890 IPM
Cutting feed A-Axis (tilting)...........................18,000 deg. /min (50 RPM) 0 ~ 30 RPM
Cutting feed C-Axis (rotary)............................36,000 deg. /min (100 RPM) 0 ~ 50 RPM
X, Y, and Z axis Positioning Accuracy (JIS).............+/- 001mm/full travel (+/- 00004"/full travel)
A and C axis Positioning Accuracy (JIS).................± 2 arc sec.
Repeating accuracy (JIS) X, Y and Z axis................+/- 001mm/full travel (+/- 00004"/full travel)
Repeating accuracy (JIS) A and C axis...................± 1.5 arc sec.
X, Y, Z Axis Position Feedback..........................Absolute Linear Glass Scale
A and C Axis Position Feedback..........................Absolute Rotary Inductosyn Scale
Tool Changer Capacity...................................40 ATC
Maximum tool length.....................................11.81"
Maximum diameter of tool................................3.54"
Maximum tool weight.....................................22 lbs
Maximum diameter of tool w/o adjacent tool
and work diameter less than (16.92")....................4.92"
Max. Tool Weight total in Magazine......................441 lbs
Electrics...............................................220V/3PH/60HZ
Machine Dimensions......................................138" x 79" x 123"
Machine Weight..........................................21,000 lbs
Fanuc 31i-B5 CNC Control
25,000 RPM HSK-63A Spindle
40 Station ATC
Grinding Capabilities
Three Air Powered Grinding Spindles (80,000, 60,000, 40,000 RPM)
NSK Electric Spindle
Diamond Dresser
Renishaw Spindle Probe

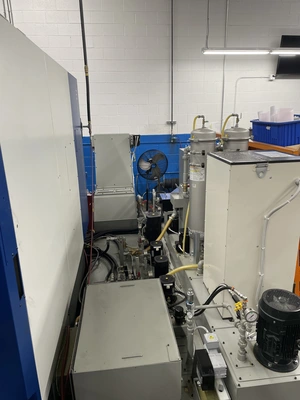

Coolant Chiller
Chip air blow system through spindle with spindle rotation
Mist Collector (Extraction) System
Spindle through coolant preparation (1,000 psi)
High Pressure Flood Coolant
Tool Laser
HOURS:
Power on Time...............30,434
Running Time................9,701
Spindle on Hours............12,825
Cutting Time................10,213
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
