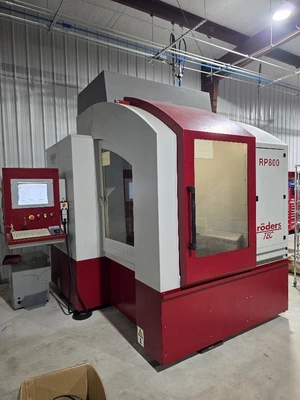

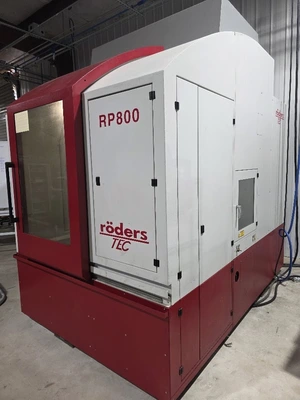

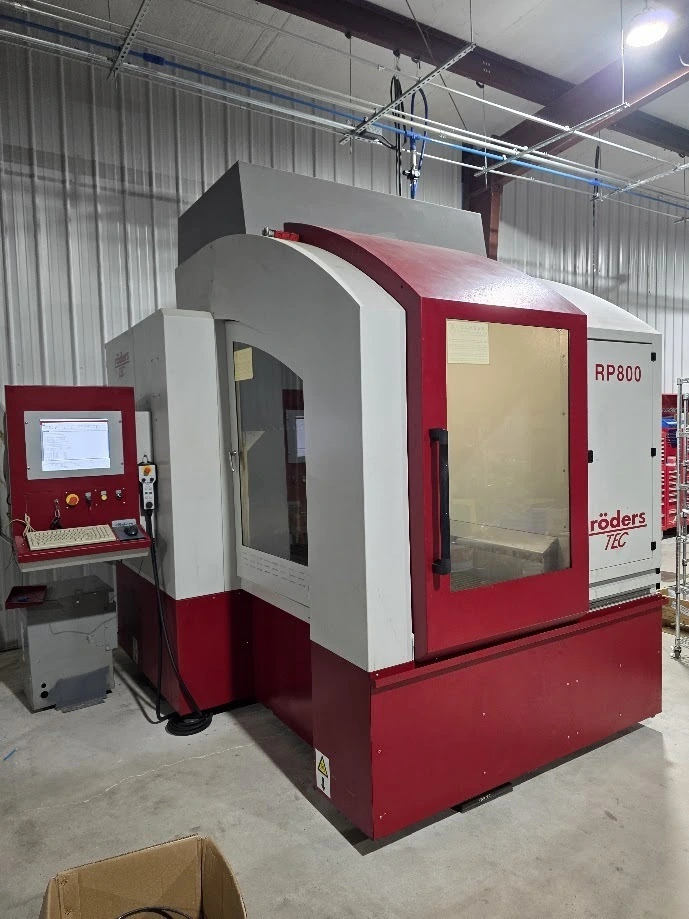

Roders RP800 High Speed Molding Machining Center
Have one to sell?
ConditionUsed
1 available
Roders RP800 High Speed Molding Machining Center - Rebuilt by Roders, 36,000 RPM Spindle, HSK E50, 30 ATC, Laser Tool Length Measure, and More.
Table Size......................35.4" x 27.6"
Max. Workpiece Weight...........1,760 LBS
X-Axis Travel...................31.5"
Y-Axis Travel...................23.6"
Z-Axis Travel...................15.7"
Spindle Motor...................23 HP
Spindle Speed...................36,000 RPM
Feedrates.......................2,362 IPM
Maximum Tool Diameter...........0.750"
Spindle Taper...................HSK E50
Number of Tools.................30 ATC
Dimensions......................118" x 118" x 126"
Machine Weight..................28,600 LBS
Roders Intel CNC Control
10 MBPS Ethernet
CD-ROM Drive
NC Milling Simulation Program
3D Touching Probe
Fischer 36,000 RPM Spindle
Laser Tool Length Measuring Device
Automatic Tool Cleaning Station
Telephone Link
Recutting Software
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Roders RP800 High Speed Molding Machining Center - Rebuilt by Roders, 36,000 RPM Spindle, HSK E50, 30 ATC, Laser Tool Length Measure, and More.
Imperial
| X | 31.5" |
| Y | 23.6" |
| Z | 15.7" |
| Power | 23 hp |
| RPM | 36,000 RPM |
| # ATC | 30 |
| Taper | HSK-E50 |
| Table-W | 27.6" |
| Table-L | 35.4" |
| # Axis | 3 |
| Control | CNC (Roders) |
| Dimensions | 118" x 118" x 126" |
| Weight | 28,600 |
Table Size......................35.4" x 27.6"
Max. Workpiece Weight...........1,760 LBS
X-Axis Travel...................31.5"
Y-Axis Travel...................23.6"
Z-Axis Travel...................15.7"
Spindle Motor...................23 HP
Spindle Speed...................36,000 RPM
Feedrates.......................2,362 IPM
Maximum Tool Diameter...........0.750"
Spindle Taper...................HSK E50
Number of Tools.................30 ATC
Dimensions......................118" x 118" x 126"
Machine Weight..................28,600 LBS
Roders Intel CNC Control
10 MBPS Ethernet
CD-ROM Drive
NC Milling Simulation Program
3D Touching Probe
Fischer 36,000 RPM Spindle
Laser Tool Length Measuring Device
Automatic Tool Cleaning Station
Telephone Link
Recutting Software
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
