Haas DM-1 with 4" Extended Z-Axis Clearance, and TRT160 5th Axis Trunnion Table
Have one to sell?
ConditionUsed
1 available

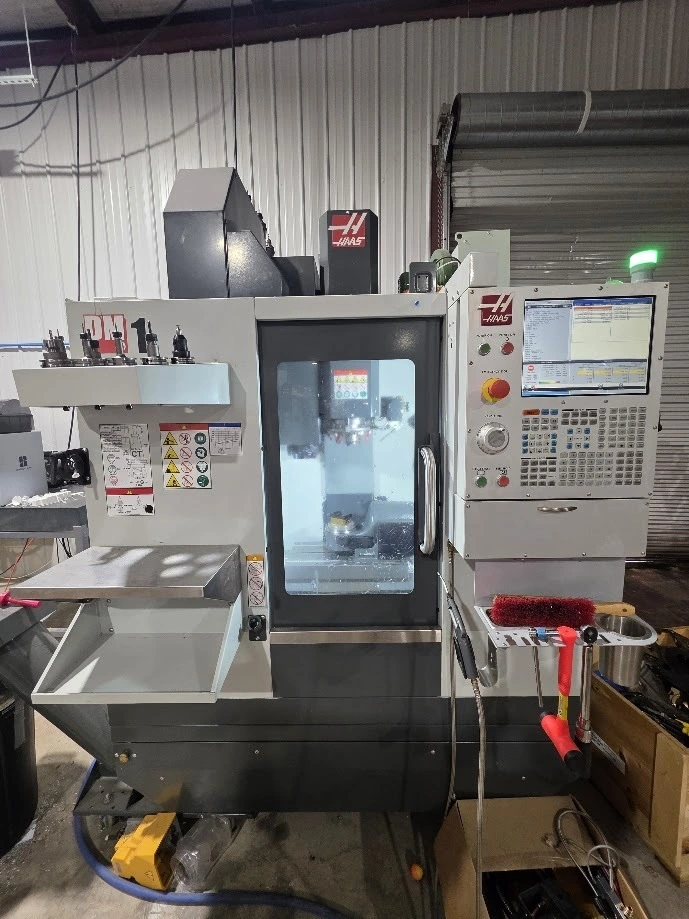

2022 Haas DM-1 with 4" Extended Z-Axis Clearance, and TRT160 5th Axis Trunnion Table, 15,000 RPM, Through Spindle Coolant, Auto Door, WIPS, High Speed Machining & More.
Table Size...............26" x 15"
Max Weight on Table......250 LBS
Spindle Nose to Table....6" - 21.5"
X-Axis Travel............20"
Y-Axis Travel............16"
Z-Axis Travel............19.5" (15.5" Standard) Has 4" Clearance Option
Spindle Motor............15 HP
Spindle Taper............CAT-40
Spindle Speed............15,000 RPM
Number of Tools..........18 ATC
Rapids...................2,400 IPM
Feed Rate................1,200 IPM
Max Tapping Speed........5,000 RPM
Dimensions...............80" x 100" x 98"
Weight...................5,150 LBS

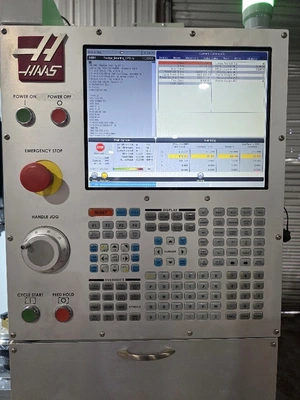

Haas CNC Control
15,000 RPM Spindle
Through-Spindle Coolant
4th Axis Drive and Wiring
5th Axis Drive and Wiring

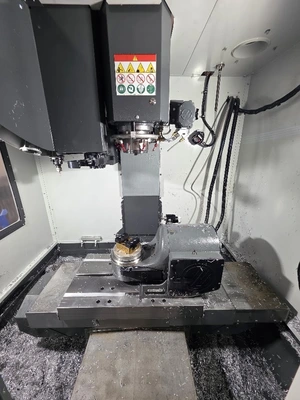

Haas TRT160 5th Axis
Wireless Intuitive Probing System
Auto Door for Mills
4" Extended Z-Axis Clearance
Part Hole Blaster
Coolant Mist Condenser
Programmable Coolant Nozzle
Programmable Air
Through-Tool Air Blast
Dynamic Work Offsets and Tool Center Point Control
High-Speed Machining
LOW-VOLT Included
Chip Auger

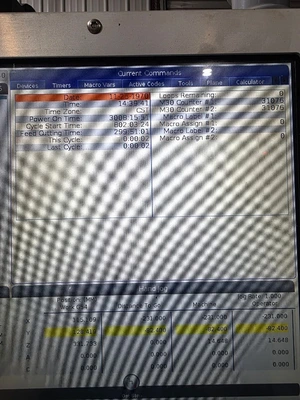

HOURS:
Power on Time........3,008
Cycle Start Time.....802
Feed Cutting Time....299
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
