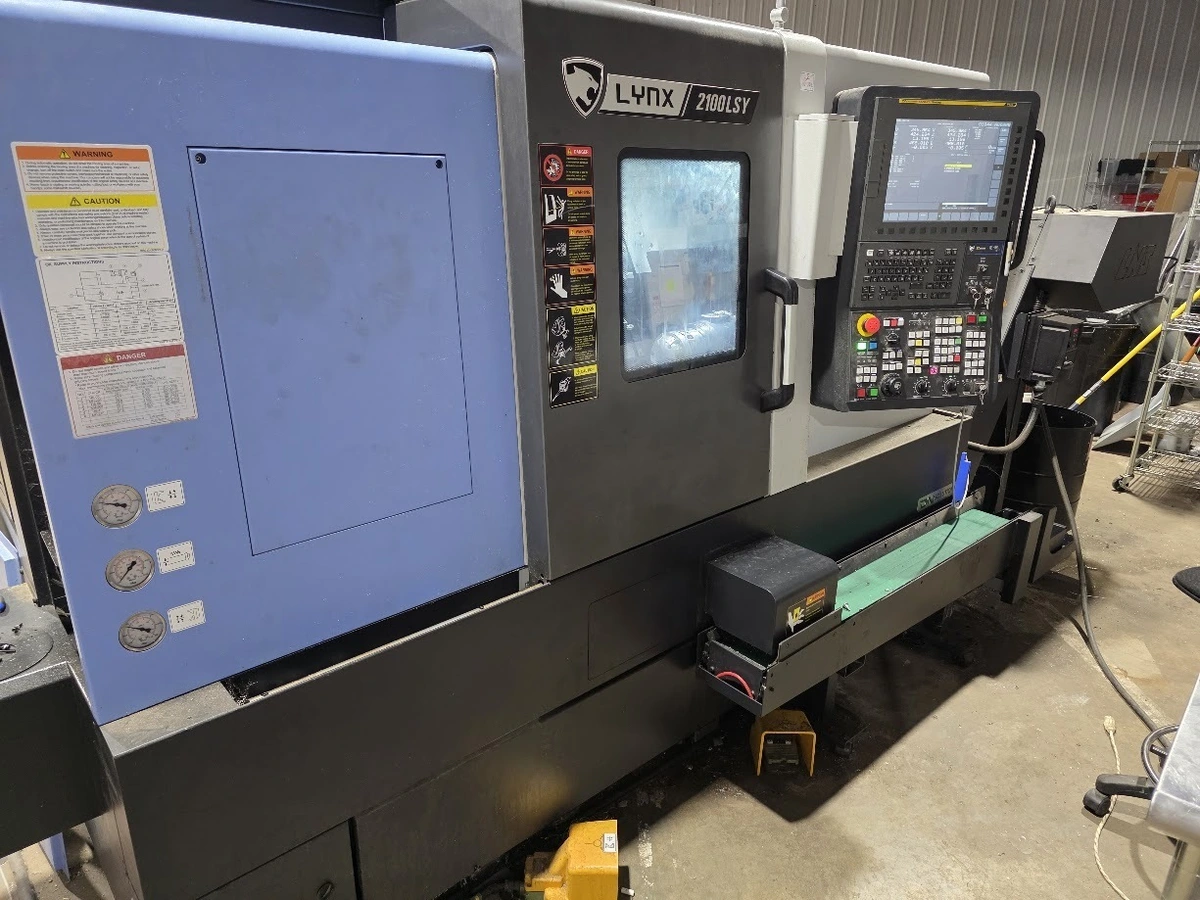

2023 DOOSAN LYNX 2100LSYB

Max Swing...............................23.6"
Max Turning Diameter....................11.8"
Max Turning Length......................20"
Bar Capacity............................2.6"
X-Axis Travel...........................8.07"
Z-Axis Travel...........................22"
Spindle Motor...........................20 HP
Spindle Speed...........................4,500 RPM
Rapid Rate Z Axis.......................1,417 IPM
Rapid Rate X Axis.......................1,417 IPM
C-AXIS:
Minimum programmable angle (degrees)....0.001
Rapid traverse rate (RPM)...............200
C-axis contouring torque (63Nm).........46.4 ft-lbs
C-axis braking torque (511Nm)...........376 ft-lbs
C-axis repeatability....................+/- 0.006 deg.
C-axis positioning accuracy.............0.0167 deg.
ROTATING TOOLS:
Rotating tool RPM.......................6,000 RPM
Rotating tool spindle motor.............(10 min. rating) 5 HP
Rotating tool torque....................(10 min. rating 17.3 lbs.
Rotating tool collet type...............ER 20
Milling collet capacity.................0.78" to .5"
Y-AXIS:
Y-axis travel...........................4.13" (±2.065”)
Y-axis rapid traverse rate..............394 IPM
SUB-SPINDLE:
B axis travel (sub spindle).............22.0”
Sub spindle guideway span...............8.93”
Spindle speed...........................6,000 RPM
Spindle motor (30 min. rating)..........7.3 HP
Maximum torque (30 min. rating).........34 ft-lbs.
Spindle nose............................110mm flat nose
Spindle bore............................1.69"
Draw tube ID............................1.375"
Rapid traverse rate (30 m/min)..........1181 IPM
Minimum programmable angle..............0.001 degree (full C axis)
Dimensions..............................112" x 67" x 81"
Weight..................................8,800 LBS
