2022 DOOSAN DNM 5700S
Have one to sell?
ConditionUsed
1 available

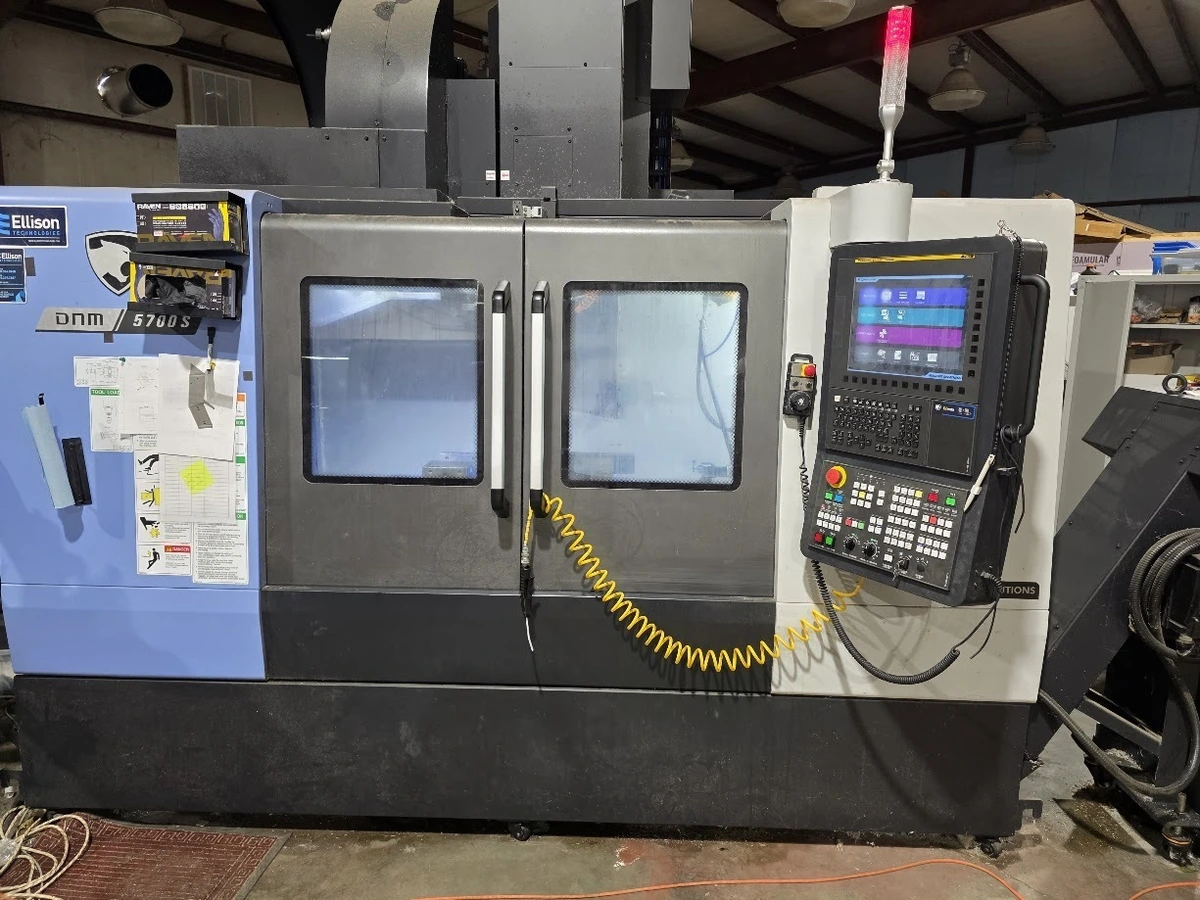

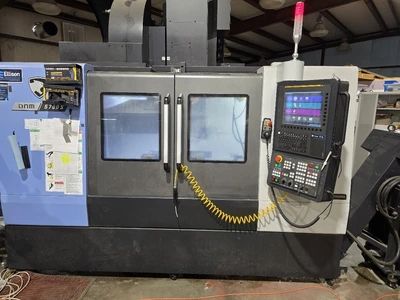

Doosan DNM 5700S Vertical Machining Center with Fanuc Control, 15,000 RPM Spindle, Through Spindle Coolant, Probe, 40 ATC, and Under 2,000 Hours.
Table Size.....................51.2" x 22.4"
Table Load (Max)...............2,205 LBS
X-Axis Travel..................41.3"
Y-Axis Travel..................22.4"
Z-Axis Travel..................20"
Spindle Motor..................25 HP
Spindle Taper..................CAT-40
Spindle Speed..................15,000 RPM
Rapids Rate (X, Y, Z)..........1,653, 1,653, 1,417 IPM
Tool Changer...................40 ATC
Max Tool Weight................17.6 LBS
Max Tool Diameter..............3.1" - 4.9"
Max Tool Length................11.81"
Tool Changing Time.............1.2 Seconds
Power Requirement..............220V / 3PH
Approx. Shipping Dimensions....123.8" L x 95" W x 117.5" H
Approx. Shipping Weight........14,330 LBS

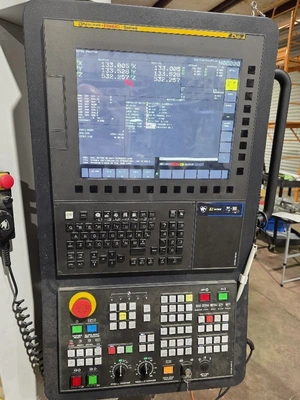

Fanuc i-Series CNC Control
15,000 RPM, CAT-40 Spindle
Through Spindle Coolant/Air
Probing
Spindle Chiller
Thermal Comp.
40 Station ATC
Double Augers
Chip Conveyor
**MACHINE HAS UNDER 2,000 HOURS AND CUT MOSTLY ALUMINUM & PLASTIC**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
