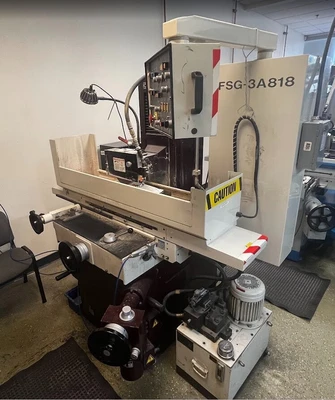

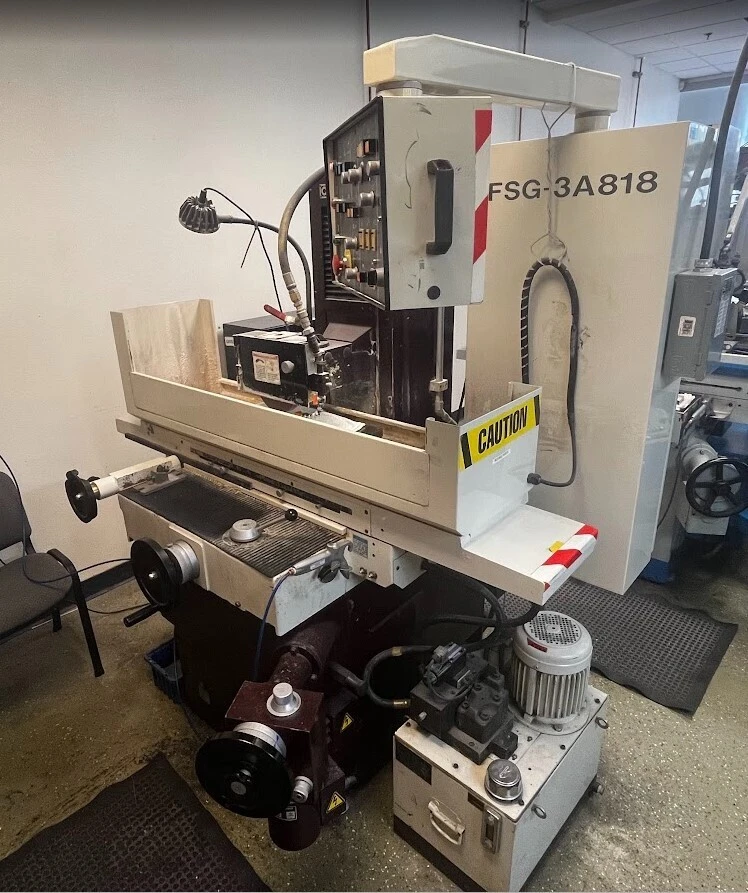

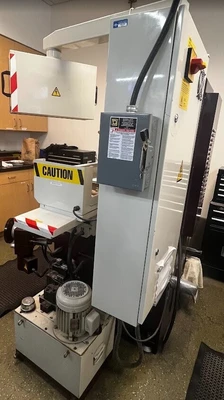

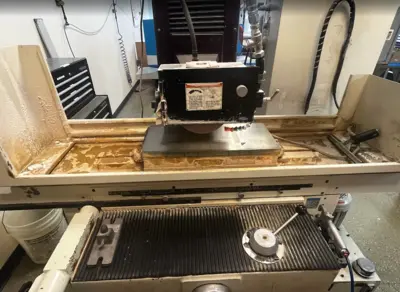

Chevalier FSG-3A818 3-Axis Automatic Surface Grinder

Grinding length................................18.0"
Grinding width.................................8.0"
Distance table to centerline of wheel..........17.7"
Max. table load................................551 lbs
Table size.....................................8.0" x 18.0"
Max. table travel..............................20.9"
Table speed (varible)..........................16 ~ 82 FPM
Traverse movement (Z) Feed.....................37 IPM
Auto traverse movement.........................0.02" ~ 0.24"
Max. manual travel.............................9.4"
Spindle speed..................................3,450 RPM (60 Hz)/ 2,850 RPM (50 Hz)
Spindle motor..................................2 HP
Wheel dimension (OD x Width x Bore)............8" × 0.5" × 1.3"
Approx Machine dimensions (W x D x H)..........88.6" x 70.5" x 74.8"
Approx weight..................................2,910 lbs

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
