Motoman EA1900N Robotic Welding System
Have one to sell?
ConditionUsed
1 available

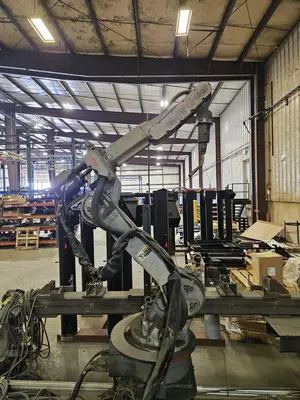

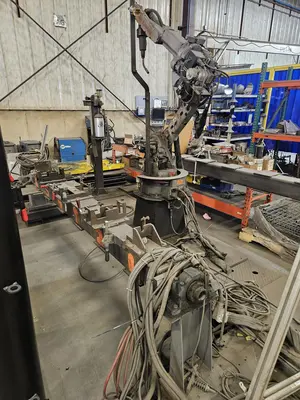

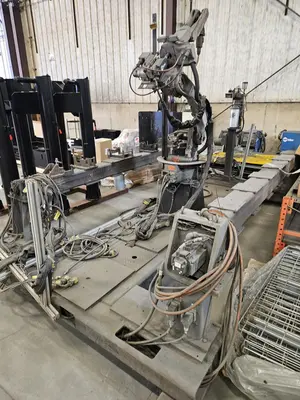

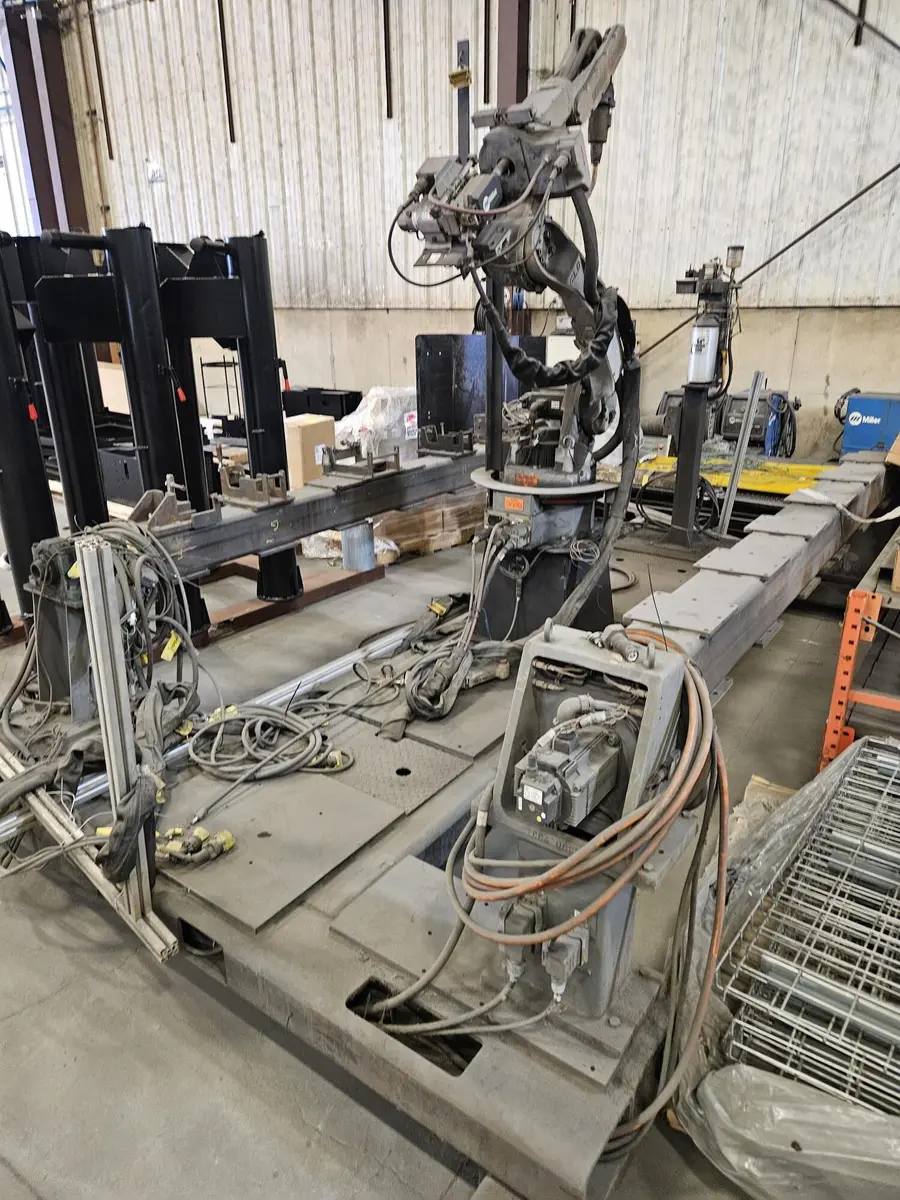

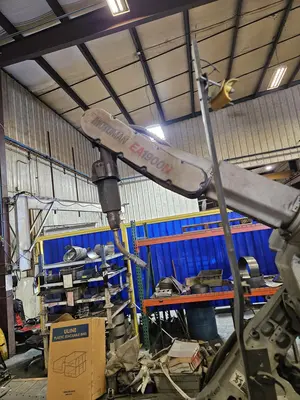

Motoman EA1900N Robotic Welding System with dual Tables
Payload...............3 KG
Reach.................1904 mm
Axes..................6
Repeatability.........0.08 mm
Mass..................280 KG
Structure.............Articulated
Motion Speed J1.......170 °/s (2.97 rad/s)
Motion Speed J2.......170 °/s (2.97 rad/s)
Motion Speed J3.......175 °/s (3.05 rad/s)
Motion Speed J4.......340 °/s (5.93 rad/s)
Motion Speed J5.......340 °/s (5.93 rad/s)
Motion Speed J6.......520 °/s (9.08 rad/s)
Motion Range J1.......±180°
Motion Range J2.......+155° - 110°
Motion Range J3.......+255° - 165°
Motion Range J4.......±150°
Motion Range J5.......+180° - 45°
Motion Range J6.......±200°
2 Manually Loaded Tables
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Motoman EA1900N Robotic Welding System with dual Tables
Imperial
| # Axis | 6 |
| Payload | 3 kg |
| Horizontal Reach | 1,904 mm |
| Vertical Reach | 1,904 mm |
| Weight | 280 KG |
Payload...............3 KG
Reach.................1904 mm
Axes..................6
Repeatability.........0.08 mm
Mass..................280 KG
Structure.............Articulated
Motion Speed J1.......170 °/s (2.97 rad/s)
Motion Speed J2.......170 °/s (2.97 rad/s)
Motion Speed J3.......175 °/s (3.05 rad/s)
Motion Speed J4.......340 °/s (5.93 rad/s)
Motion Speed J5.......340 °/s (5.93 rad/s)
Motion Speed J6.......520 °/s (9.08 rad/s)
Motion Range J1.......±180°
Motion Range J2.......+155° - 110°
Motion Range J3.......+255° - 165°
Motion Range J4.......±150°
Motion Range J5.......+180° - 45°
Motion Range J6.......±200°
2 Manually Loaded Tables
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
