Cincinnati 90CB-10 Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available

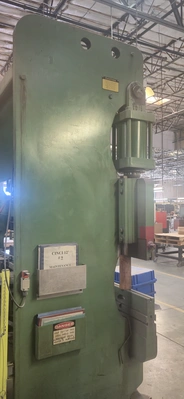

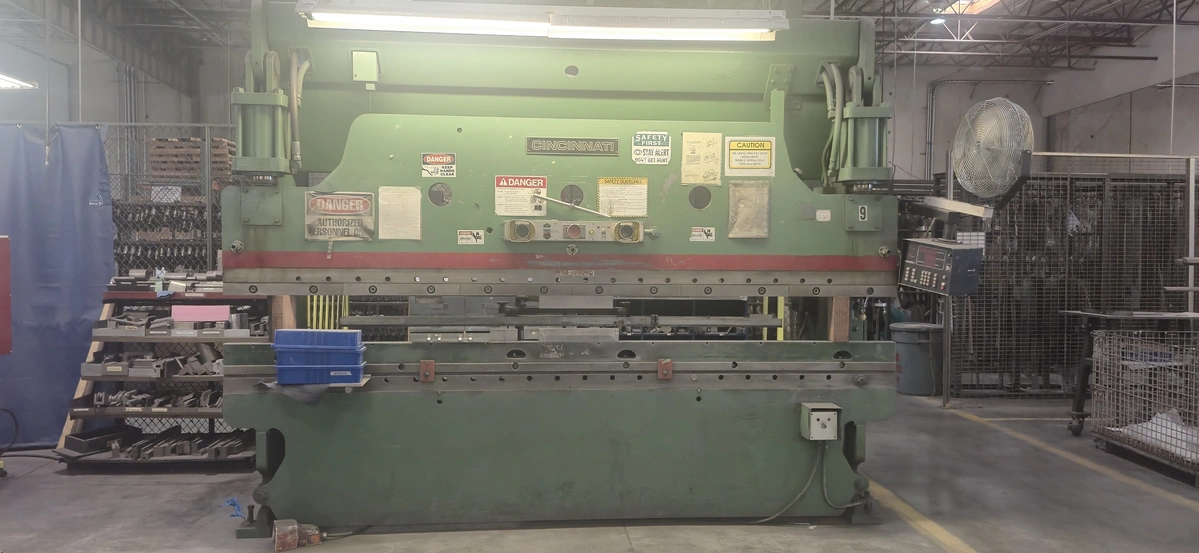

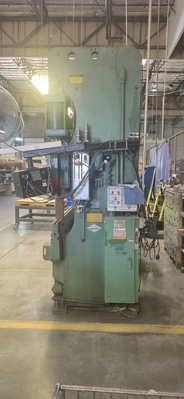

1987 Cincinnati 90CB-10 Hydraulic Press Brake with Dynabend I Control, 90 Ton x 12" Press Brake
Max Capacity.................90 Tons
Overall Bed Length...........12'
Distance Between Housings....10'6"
Main Motor...................15 HP
Width at Top of Bed..........3-1/2"
Max Stroke...................8"
Throat Depth.................7"
Open Height..................15"
Closed Height................7"
Approach Speed...............260 IPM
Form Speed...................10-20-80 IPM
Return Speed.................280 IPM
Electrics....................460 Volts
Approx. Dimensions...........12'6.5" x 50" x 110"
Approx. Machine Weight.......20,000 LBS

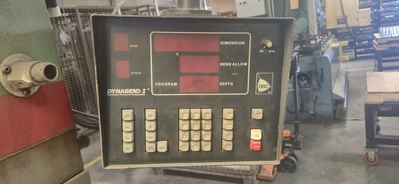

Dynabend I Control

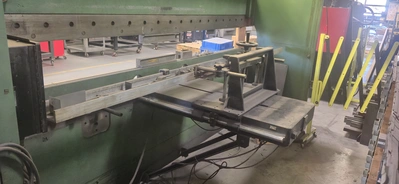

Backgauge
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
