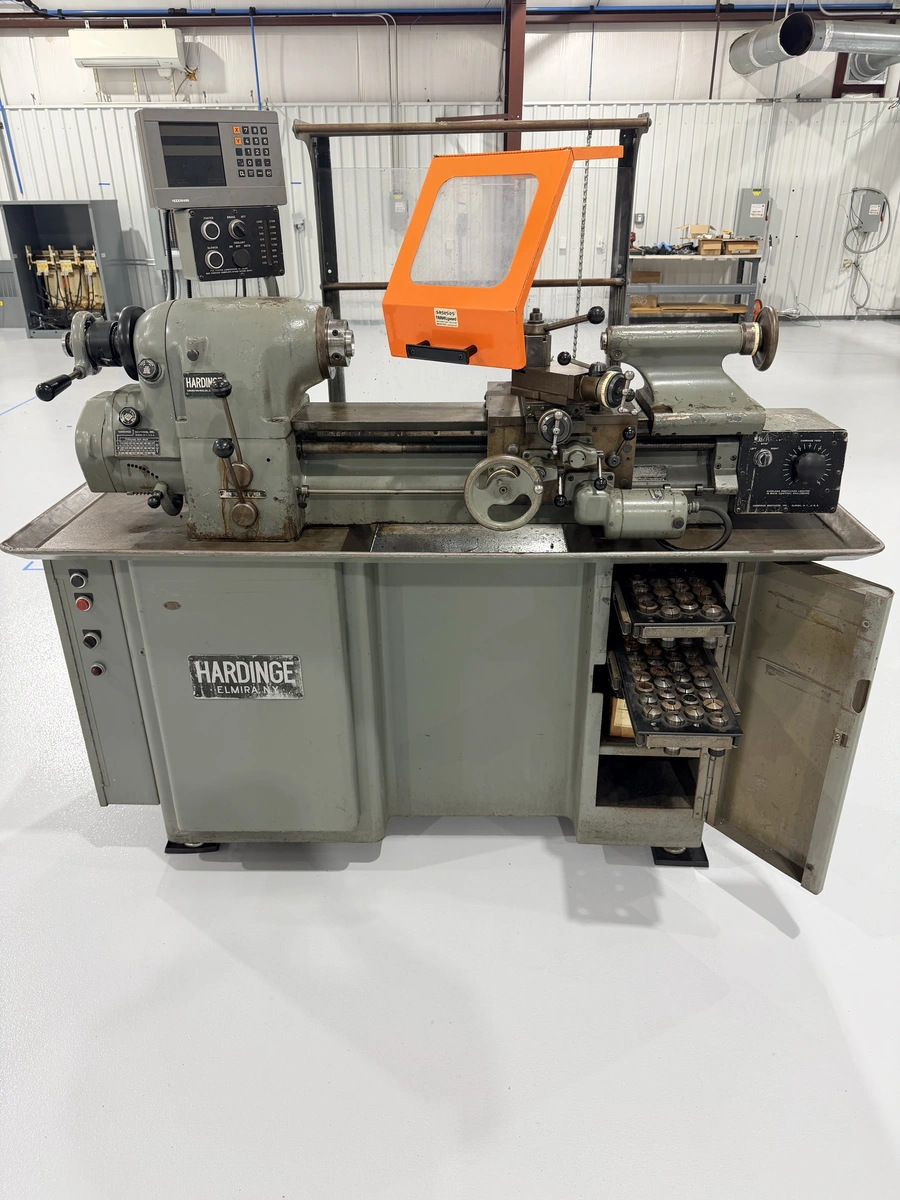

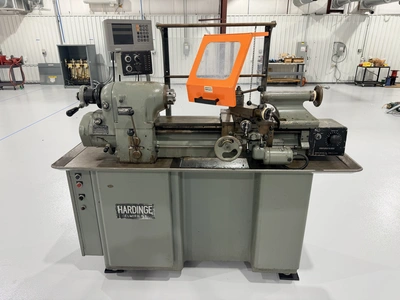

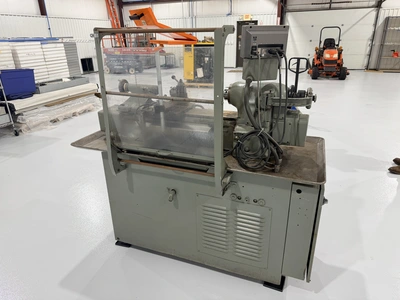

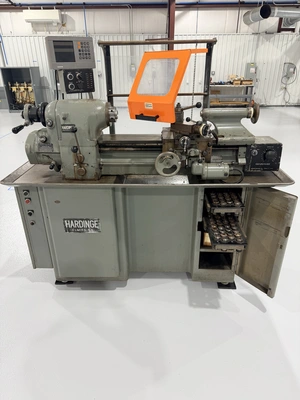

Hardinge HLV-H Precision Tool Room Lathe

Spindle Capacity with Round 5C Collets......1-1/16"
Spindle Capacity with Step Chucks...........1-1/16" to 6"
Variable Spindle Speeds.....................125 - 3000 RPM
Swing Over Bed..............................11"
Swing Over Carriage.........................9"
Swing Over Cross Slide......................6"
Distance Between Centers....................18"
Hole Through Spindle........................1-1/4"
Compound Slide Travel.......................3"
Carriage Power Feed Range...................5/16" to 7" per minute
Cross Slide Power Feed Range................3/16" to 4" per minute
Tailstock Spindle Diameter..................1-3/8"
Tailstock Spindle Travel....................3-3/4"
Tailstock Spindle Taper.....................No. 2 Morse
Steady Rest Opening.........................3"
Lead Screw Diameter.........................1" -- 8 Thread
Range of Threads in Gear Box................11 to 108
Number of Thread Changes in Gear Box........27
Dimensions..................................65" x 28"
Machine Weight..............................2000 LBS
