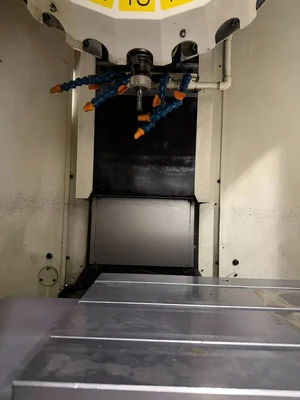

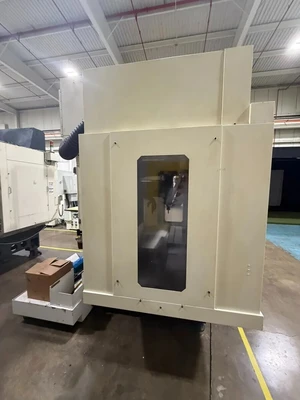

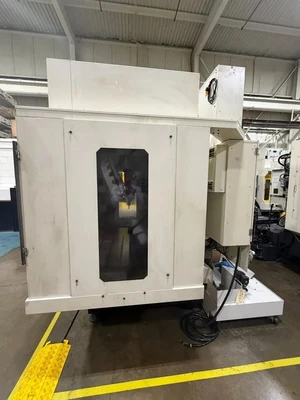

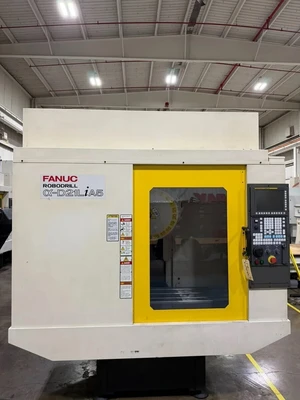

Fanuc Robodrill A-D21LiA5 CNC 3-Axis Drill Tap Center

Table Size....................25.59" x 15.74"
Max Table Load................661 LBS
X-Axis Travel.................27.6"
Y-Axis Travel.................15.7"
Z-Axis Travel.................13.0"
A-Axis Range..................-120° to +30° (DDR direct-drive)
C-Axis Range..................360° continuous (DDR direct-drive)
Ddr Table Diameter............11.8"
Ddr Table Load................30 kg (66 LBS)
Max Spindle Speed.............10,000 RPM
Spindle Taper.................BT30
Spindle Motor Power...........11 kW (15 hp) continuous

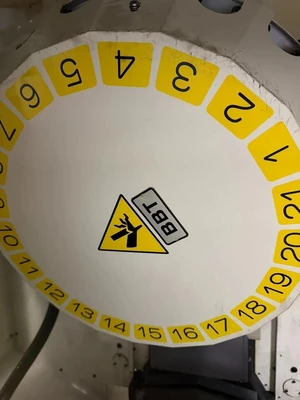

Tool Capacity.................21-position turret
Tool To Tool..................0.7 sec
Chip To Chip..................1.3 sec
Rapid Traverse Rate...........2,126 IPM
Positioning Accuracy..........±0.003 mm
Repeatability.................±0.002 mm
Machine Weight................5,000 LBS
