Haas VF-8/50 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

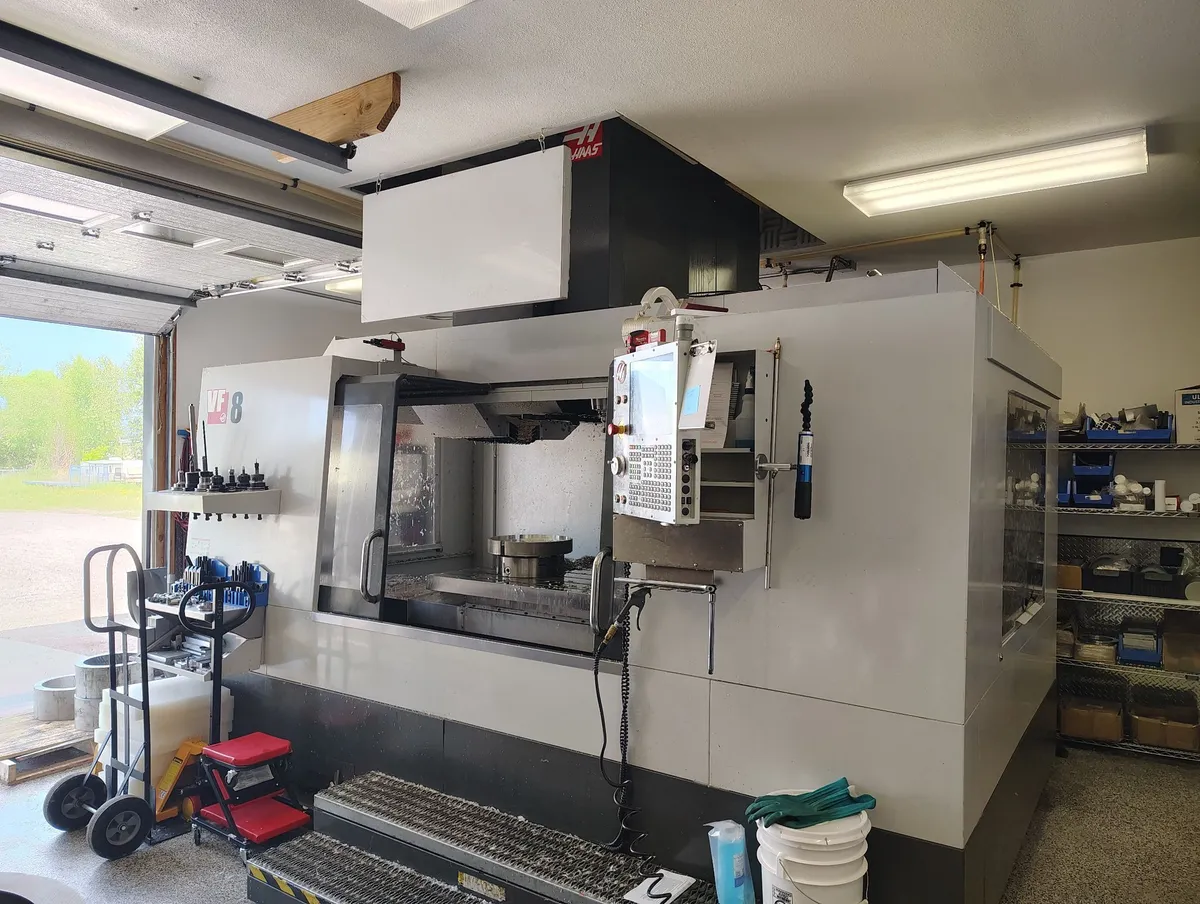

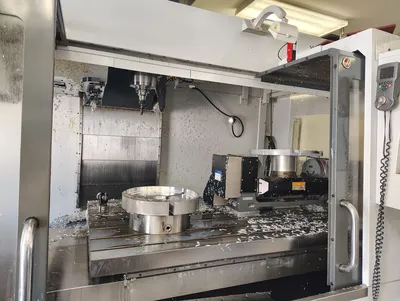

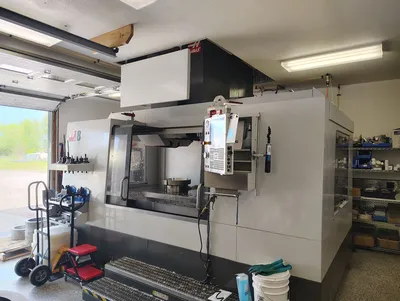

2013 Haas VF-8/50 5-Axis Vertical Machining Center with 5th Axis Trunnion Table, Renishaw WIPS, Through Spindle Coolant, High Speed Machining, and Expanded Memory.
Table Size.....................64" x 36"
Max Table Load.................4,000 LBS
Spindle Nose to Table..........5" - 35"
X-Axis Travel..................64"
Y-Axis Travel..................40"
Z-Axis Travel..................30"
Spindle Motor..................30 HP
Spindle Taper..................CAT-50
Spindle Speed..................7,500 RPM
Max Cutting....................500 IPM
Rapid Traverse Rate............600 IPM
Tool Changer...................30 ATC
Max Tool Diameter..............4"
Max Tool Diameter..............10"
Max Tool Length................16"
Max Tool Weight................30 LBS
Dimensions.....................193" x 120" x 132"
Weight.........................29,000 LBS
Haas CNC Control
7,500 RPM, CAT-50 Spindle
Expanded Memory
High Speed Machining
Renishaw WIPS
Through Spindle Coolant
30 Position ATC
Haas TR-160 5th Axis Trunnion Table
HOURS:
Power on Time..........61,630
Motion Time............4,691
Spindle Time...........4,776
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
