2007 MORI SEIKI NH-5000 DCG 3-Pallet
Have one to sell?
ConditionUsed
1 available

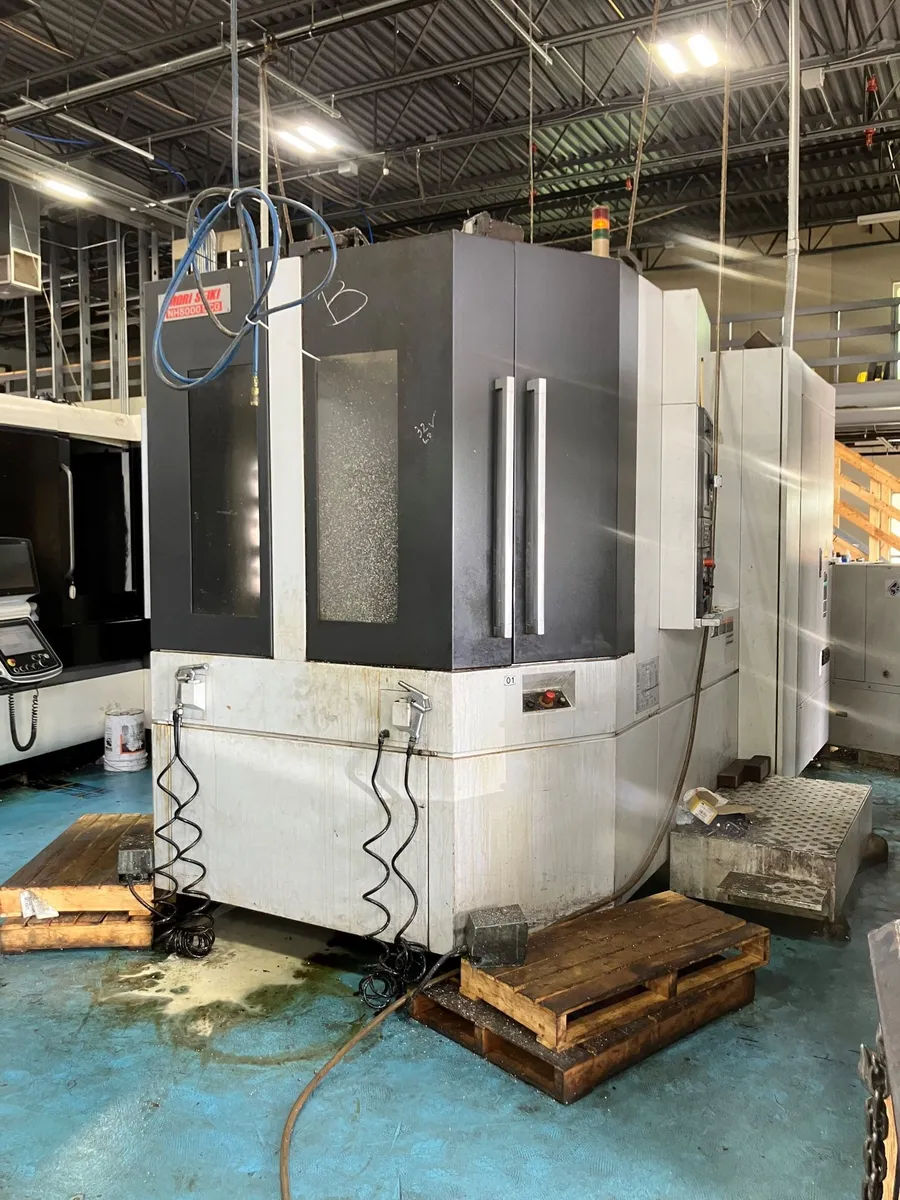

Mori Seiki NH-5000DCG 3-Pallet Horizontal Machining Center with Fanuc Control, 3 Station Pallet Changer, 120 ATC, 1 Degree 4th Axis, and Fanuc Data Server with Extra Memory
PALLET SIZE...............................19.7" X 19.7"
PALLET LOAD CAPACITY......................1,100 LBS
PALLET SURFACE TO SPINDLE CENTER..........3.9" - 32.7"
PALLET CENTER TO SPINDLE GAUGE PLANE......3.9" - 37.4"
NUMBER OF PALLET STATIONS.................3
PALLET INDEXING...........................1 DEGREE
X-AXIS TRAVEL.............................28.7"
Y-AXIS TRAVEL.............................28.7"
Z-AXIS TRAVEL.............................33.5"
SPINDLE DRIVE.............................50/30 HP
SPINDLE TAPER.............................CAT-40
SPINDLE SPEEDS............................14,000 RPM
CUTTING FEEDRATE..........................1968.5 IPM
POWER RAPID TRAVERSE......................1968.5 IPM
TOOLCHANGER CAPACITY......................120 STATIONS
APPROXIMATE FLOOR SPACE...................107.3" x 181.5" x 123.5"
APPROXIMATE WEIGHT........................28,380 LBS
FANUC CONTROL
14,000 RPM
3 PALLET CHANGER
120 TOOL MAGAZINE
1 DEGREE INDEX
FANUC DATA SERVER EXTRA MEMORY
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Mori Seiki NH-5000DCG 3-Pallet Horizontal Machining Center with Fanuc Control, 3 Station Pallet Changer, 120 ATC, 1 Degree 4th Axis, and Fanuc Data Server with Extra Memory
Imperial
| X | 28.7" |
| Y | 28.7" |
| Z | 33.5" |
| Power | 50 hp |
| RPM | 14,000 RPM |
| # ATC | 120 |
| Taper | CAT-40 |
| Pallet-W | 19.7" |
| Pallet-L | 19.7" |
| # Axis | 4 |
| Control | CNC (FANUC) |
| Weight | 28,380 LBS |
PALLET SIZE...............................19.7" X 19.7"
PALLET LOAD CAPACITY......................1,100 LBS
PALLET SURFACE TO SPINDLE CENTER..........3.9" - 32.7"
PALLET CENTER TO SPINDLE GAUGE PLANE......3.9" - 37.4"
NUMBER OF PALLET STATIONS.................3
PALLET INDEXING...........................1 DEGREE
X-AXIS TRAVEL.............................28.7"
Y-AXIS TRAVEL.............................28.7"
Z-AXIS TRAVEL.............................33.5"
SPINDLE DRIVE.............................50/30 HP
SPINDLE TAPER.............................CAT-40
SPINDLE SPEEDS............................14,000 RPM
CUTTING FEEDRATE..........................1968.5 IPM
POWER RAPID TRAVERSE......................1968.5 IPM
TOOLCHANGER CAPACITY......................120 STATIONS
APPROXIMATE FLOOR SPACE...................107.3" x 181.5" x 123.5"
APPROXIMATE WEIGHT........................28,380 LBS
FANUC CONTROL
14,000 RPM
3 PALLET CHANGER
120 TOOL MAGAZINE
1 DEGREE INDEX
FANUC DATA SERVER EXTRA MEMORY
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
