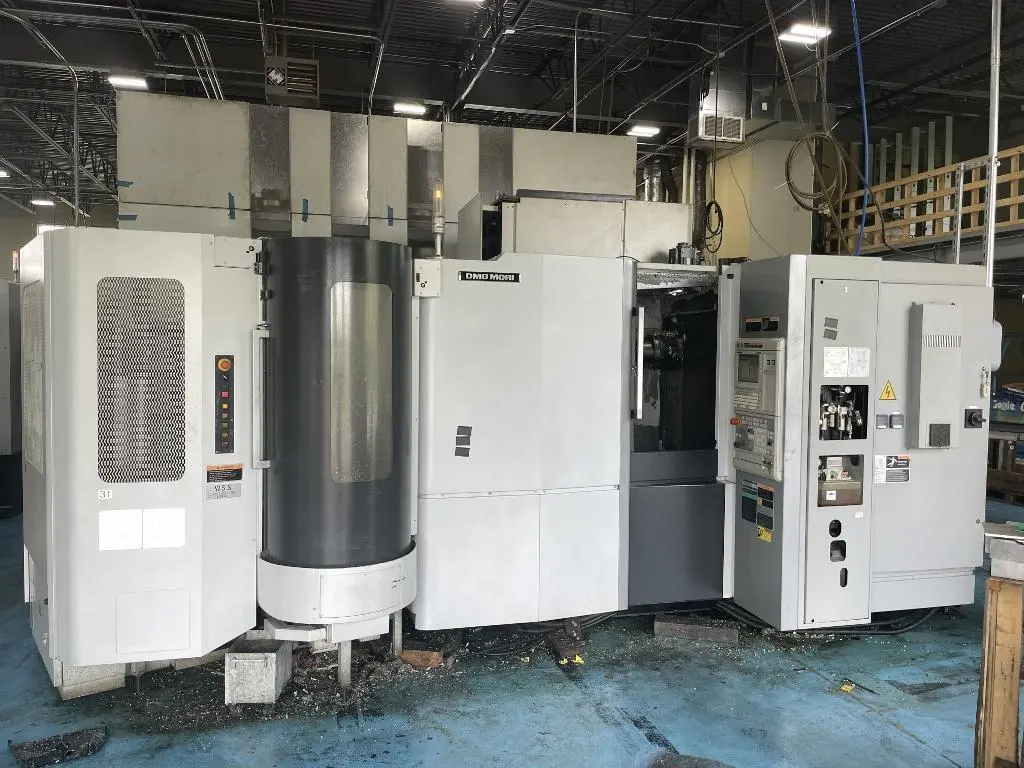

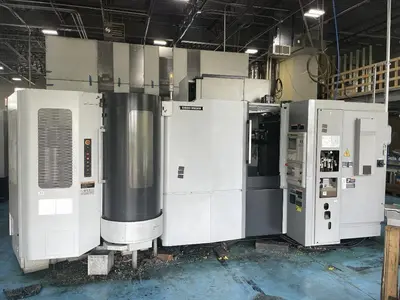

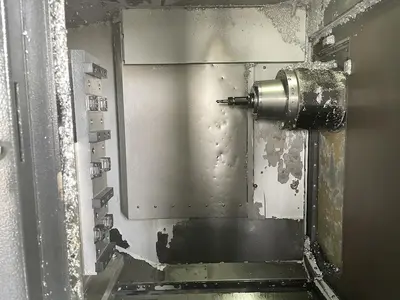

DMG Mori NHX4000 with 5-RPP Pallet Changer
Have one to sell?
ConditionUsed
1 available
2014 DMG Mori NHX4000 with 5-RPP Pallet Changer with Mitsubishi M730BM Control, 5-Station Pallet Pool, 120 ATC, and Full 4th Axis.
Pallet Dimensions.................................... 15.75" x 15.75"
Maximum Pallet Load.................................. 800 LBS
Number of Pallets.................................... 5
Number of Index Positions............................ 360,000
Spindle Nose to Pallet Center Minimum................ 2.8"
Spindle Nose to Pallet Center Maximum................ 28.7"
Longitudinal Table Travel (X-Axis)................... 22"
Vertical Travel (Y-Axis)............................. 22"
Head Cross Travel (Z-Axis)........................... 26"
High Output Spindle Motor............................ 40/25 HP
Spindle Taper........................................ CAT-40
Max Spindle Speed.................................... 12,000 RPM
Number of Tool Positions............................. 120 ATC
Rapid Traverse, All Axes............................. 2362 IPM
Approximate Machine Dimensions....................... 236" x 132"
Approximate Machine Height........................... 110"
Approximate Machine Weight........................... 21,000 LBS

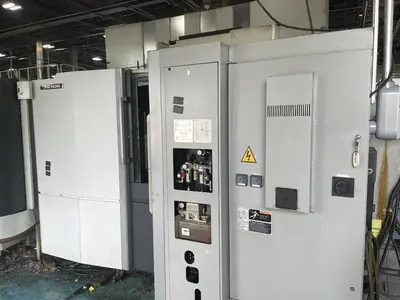

Mitsubishi M730BM CNC Control
MAPPS-IV Programming

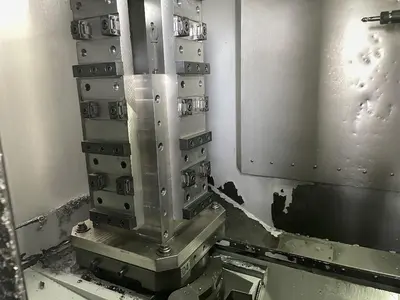

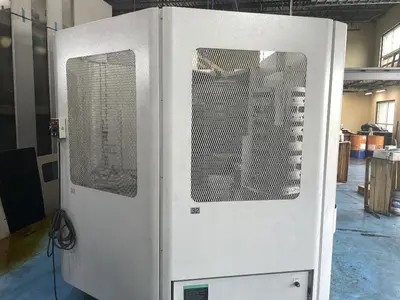

5 Station Rotary Pallet Pool

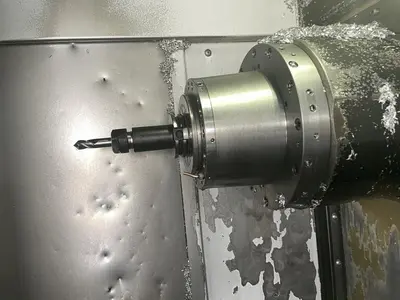

12,000 RPM High Output Spindle

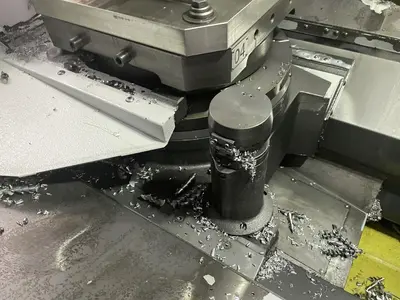

Full 4th Axis (360,000 Positions)
120 Station ATC
Toolsetter
Rear Discharge Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
