Mori Seiki NH5000DCG/40 CNC Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2006 Mori Seiki NH5000DCG/40 CNC Horizontal Machining Center with MSX-701 III Control, 14,000 RPM, CAT-40 Spindle, 1,000 PSI Chip Blaster Through Spindle Coolant, and 60 ATC.
Pallet Size...................19.7" x 19.7"
Pallet Weight Capacity........1100 lbs
Pallet Indexing...............NEEDS VERIFICATION
X-Axis Travel.................28.7"
Y-Axis Travel.................28.7"
Z-Axis Travel.................33.5"
Spindle Motor.................25 HP
Spindle Taper.................CAT-40
Spindle Speed.................14,000 RPM
Rapid Traverse Rates..........1,969 IPM

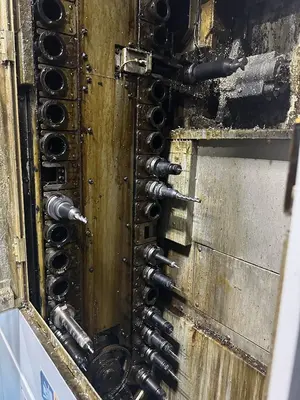

Number of Tools...............60 ATC
Electrics.....................220V
Machine Dimensions............195" x 95"x 115"
Machine Weight................28,000 lbs

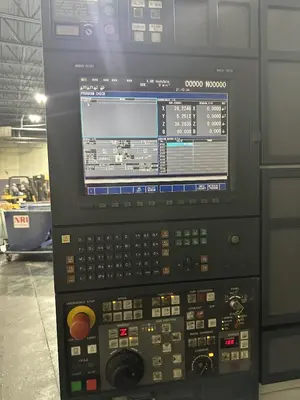

MSX-701 III Control
14,000RPM, CAT-40 Spindle
60 ATC
Fanuc On Board Data Server
Renishaw System (Missing Probe)

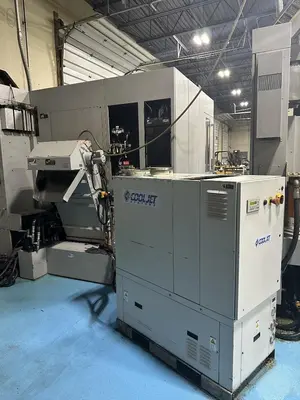

Chip Blaster 1000 PSI High Pressure System
Through Spindle Coolant
Rear Discharge Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2006 Mori Seiki NH5000DCG/40 CNC Horizontal Machining Center with MSX-701 III Control, 14,000 RPM, CAT-40 Spindle, 1,000 PSI Chip Blaster Through Spindle Coolant, and 60 ATC.
Imperial
| X | 28.7" |
| Y | 28.7" |
| Z | 33.5" |
| Power | 25 hp |
| RPM | 14,000 RPM |
| # ATC | 60 |
| Taper | CAT-40 |
| Pallet-W | 19.7" |
| Pallet-L | 19.7" |
| # Axis | 4 |
| Control | CNC (MSX-701 III) |
| Dimensions | 195" x 95"x 115" |
| Weight | 28,000 lbs |
Pallet Size...................19.7" x 19.7"
Pallet Weight Capacity........1100 lbs
Pallet Indexing...............NEEDS VERIFICATION
X-Axis Travel.................28.7"
Y-Axis Travel.................28.7"
Z-Axis Travel.................33.5"
Spindle Motor.................25 HP
Spindle Taper.................CAT-40
Spindle Speed.................14,000 RPM
Rapid Traverse Rates..........1,969 IPM
Number of Tools...............60 ATC
Electrics.....................220V
Machine Dimensions............195" x 95"x 115"
Machine Weight................28,000 lbs
MSX-701 III Control
14,000RPM, CAT-40 Spindle
60 ATC
Fanuc On Board Data Server
Renishaw System (Missing Probe)
Chip Blaster 1000 PSI High Pressure System
Through Spindle Coolant
Rear Discharge Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
