Mazak QT-20N Universal Turning Center
Have one to sell?
ConditionUsed
1 available

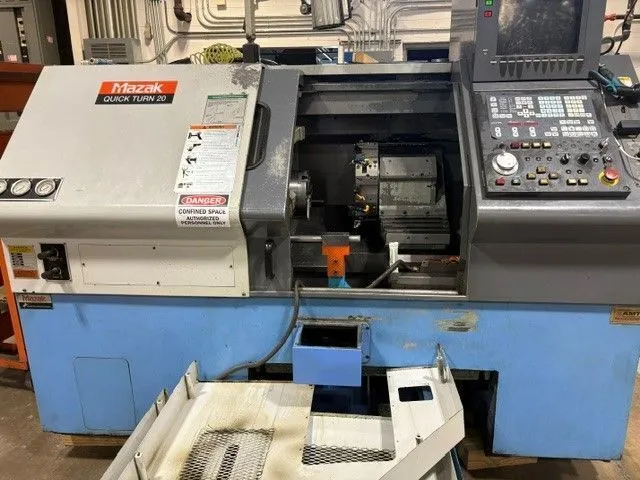

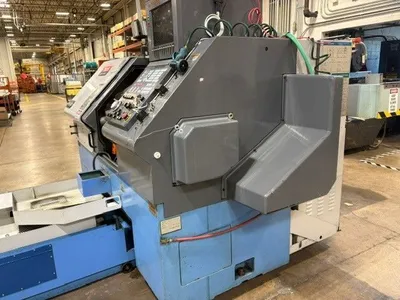

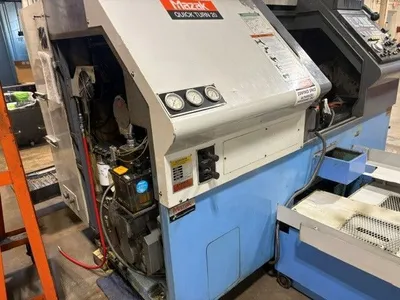

1998 Mazak QT-20N Universal Turning Center with 8" Chuck, Tool Setter, Parts Catcher, Tailstock, and Chip Conveyor.
Swing Over Bed.......................17.32"
Swing Over Carriage..................10.00"
Max. Turning Diameter................11.81"
Distance Between Centers.............20.08"
X-Axis Travel........................7.09"
Z-Axis Travel........................20.08"
Spindle Bore Diameter................2.44"
Bar Capacity.........................2.00"
Chuck Size...........................8"
Spindle Nose.........................A2-6
Spindle Speed........................5000 RPM
Turret Configuration.................8 Position
Machine Weight.......................9,260 LBS
Mazatrol T-Plus CNC Control

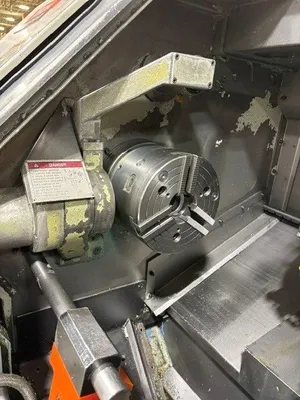

8" Chuck
Tool Setter
Tailstock
Parts Catcher

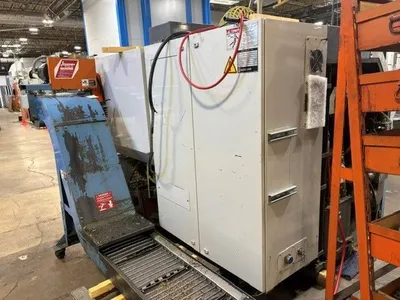

Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
1998 Mazak QT-20N Universal Turning Center with 8" Chuck, Tool Setter, Parts Catcher, Tailstock, and Chip Conveyor.
Imperial
| Swing | 17.32" |
| Machining Length | 19.8" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 11.81" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (MAZATROL T-PLUS) |
| Weight | 9,260 LBS |
Swing Over Bed.......................17.32"
Swing Over Carriage..................10.00"
Max. Turning Diameter................11.81"
Distance Between Centers.............20.08"
X-Axis Travel........................7.09"
Z-Axis Travel........................20.08"
Spindle Bore Diameter................2.44"
Bar Capacity.........................2.00"
Chuck Size...........................8"
Spindle Nose.........................A2-6
Spindle Speed........................5000 RPM
Turret Configuration.................8 Position
Machine Weight.......................9,260 LBS
Mazatrol T-Plus CNC Control
8" Chuck
Tool Setter
Tailstock
Parts Catcher
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
