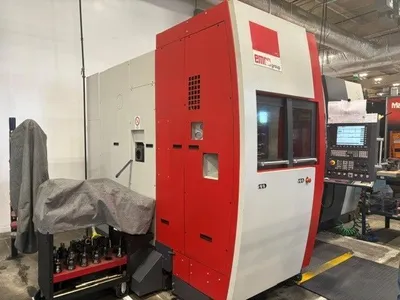

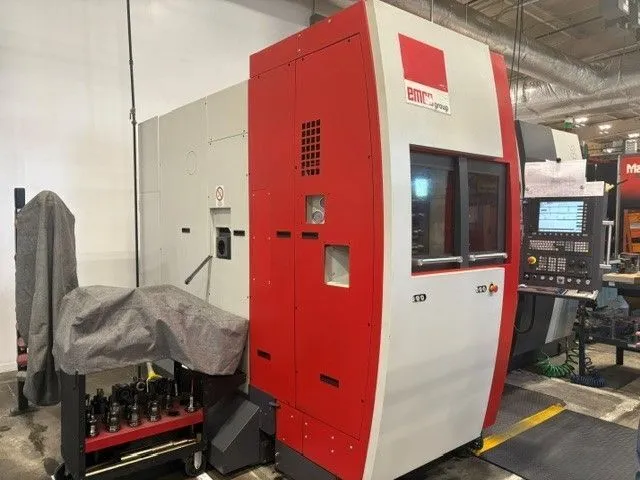

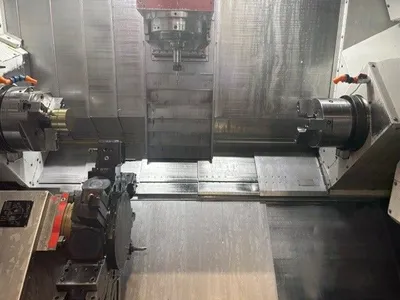

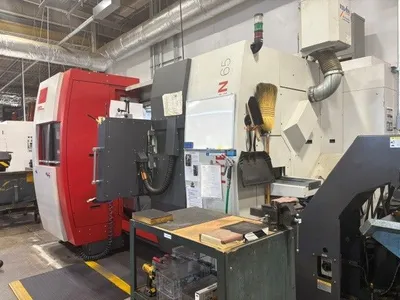

Emco Hyperturn 65 Multi Axis Mill/Turn Center

Capacities:
Swing Over Bed..........................................................19.68"
Distance between spindle noses for counter spindle version..............51.18"
Max Turning Diameter....................................................19.68"
Max Turning Length......................................................40.94"
Max Work piece size for counter spindle.................................7.87" x 7.87"
Max Bar Work Diameter...................................................2.55"

Travels:
Travel in X1/X2.........................................................15.94" / 10.23"
Travel in Z1/Z2.........................................................41.33" / 41.33"
Travel in Y1/Y2.........................................................8.66" / 3.93"
Travel Z3 (counter spindle).............................................40.55"
C-Axes Resolution.......................................................0.001°

Main Spindle:
Max Power...............................................................28/38 HP
Speed Range.............................................................5,000 RPM
Main Spindle Nose.......................................................A2-6
Main Spindle Bearing Inner Diameter.....................................4.13"
Main Spindle Bore Diameter..............................................2.87"
Main Spindle Through-Hole...............................................2.55"
Max Chuck Size..........................................................10"

Counter Spindle:
Max Power...............................................................28/38
Speed Range.............................................................5,000 RPM
Spindle Nose............................................................A2-6
Spindle bearing inner diameter..........................................4.13"
Spindle bore diameter...................................................2.87"
Max Rapid Motion Speed Z3...............................................1181.1"/min
Solid Clamping Cylinder w/ draw-tube f. chuck work......................7.87"
Max Chuck Size..........................................................9.84"

Tool System 1 (Milling Spindle with Tool Magazine):
B Axis Swivel Range- stepless (resolution 0,001°).......................220°
B-axis positioning accuracy of clamping (res. 0,001°)...................+/-9°
Milling Spindle Max Power...............................................38 HP / 29 HP
Milling Spindle Speed...................................................12,000 RPM
Milling spindle – clamping increments for turning op....................0.001°
Tool Storage Capacity...................................................36
Type of Tool shank......................................................HSK-T63

Tool system 2 (Radial Style Tool Turret with Bi-Directional Logic):
Quick-change tool shank VDI 30 acc. DIN 69880...........................12 Positions
Number of Driven Tool Stations..........................................12 Positions
Turret Indexing Time....................................................0.7 Seconds
Speed Range.............................................................0-5,000 RPM

Machine Floor Space.....................................................118.11" x 159.45" x 108.27"
Machine Weight..........................................................25,000 LBS
