Murata Muratec MS50G Single Spindle CNC Turning Center with Gantry
Have one to sell?
ConditionUsed
1 available

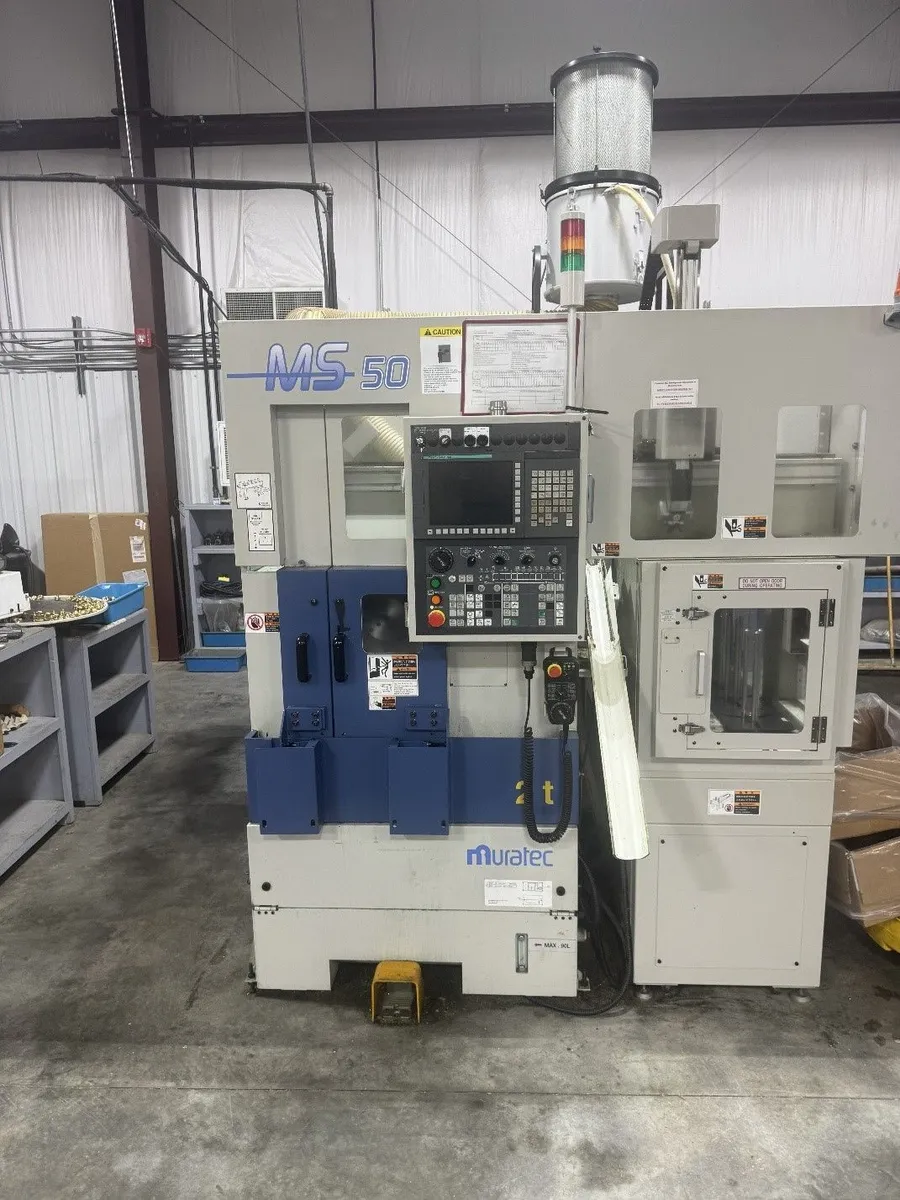

2021 Murata Muratec MS50G Single Spindle CNC Turning Center with Gantry. Fanuc 31i Control, 6" Chuck, 8 Station Turret, and 10 Station Work Feeder Table.
Maximum Chuck Size........................6" / ø 165 mm
Number of Turret Stations.................8
Specification of Cutting Axes.............X-axis 130mm 24 m/min / Z-axis 110mm 24 m/min
Gantry Workpiece Capacity Size / Weight...ø 80 mm × 60 mm / 0.7 kg × 2
Maximum Spindle Speed.....................4,500 RPM
Spindle Drive Motor.......................5.5 kW/30min
Spindle Nose Size.........................JIS A2-5
Max. Stacking Height......................17.7"
Part OD Range.............................1.18" - 6.29"
Max. Weight per Pallet....................77 lbs
Electrics.................................220V
Fanuc 31i CNC Control
Machine Prepped for Air & Coolant Mixing Blow Through Spindle
10 Station Small Work Feeder Table
Rigid Tapping
Multiple Repetitive Canned Cycles for Drilling
Chip Conveyor, Hinge Type, Rear Discharge
LOSMA Darwin 1200 Mist Collection
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
