Matsuura MAM-72-3VS
Have one to sell?
ConditionUsed
1 available

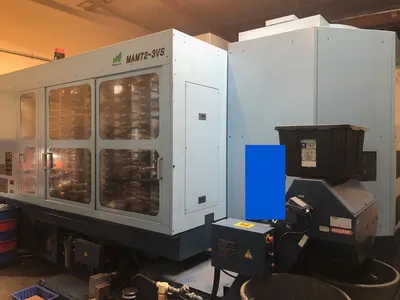

2001 Matsuura MAM-72-3VS with Fanuc 16i-M Control, 15,000 RPM, BT-40 Spindle, 40 Station Pallet Pool, 240 ATC, Tool Setter, Hydraulic Programmable Tailstock, Chip Conveyor.
Pallet Working Surface.....................5.12"
Pallet Surface Configuration...............M12 tapped holex4
From Pallet Surface To Indle Gauge Line....-3.34" - 21.25"
Pallet Center To Spindle Gauge Line........2.36" - 29.96"
Max. Work Size.............................11.81" x 9.84"
Max. Work Weight...........................132 LBS
X-Axis Travel..............................26.77"
Y-Axis Travel..............................15.74"
Z-Axis Travel..............................24.6"
B-Axis Travel..............................+65 - -110 Degree
C-Axis Travel..............................360 Degree
Spindle Speed..............................15,000 RPM
Spindle Taper..............................BT-40
Spindle Motor..............................30 HP

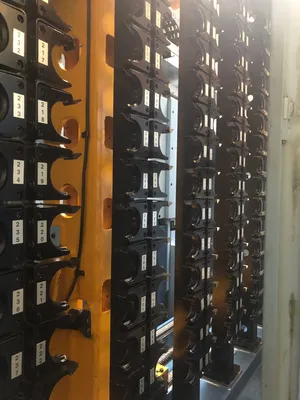

Magazine Capacity..........................240 ATC
Acceptable Cutting Torque (B/C)............760 / 760 N・m
Breaking Torque (B/C)......................2,450 / 1,470 N・m
Pallet Indexing Accuracy (B/C).............5 sec.
Pallet Indexing Repeatability..............± 2 sec.
Indexing Angle (B/C).......................0.001 deg
Pallet Indexing Time (B)...................1.46 sec./90º
without clamping/unclamping time...........0.68 sec./90º
Pallet Indexing Time (C)...................1.47 sec./180º
without clamping/unclamping time...........0.69 sec./180º
Machine Weight.............................33,000 LBS

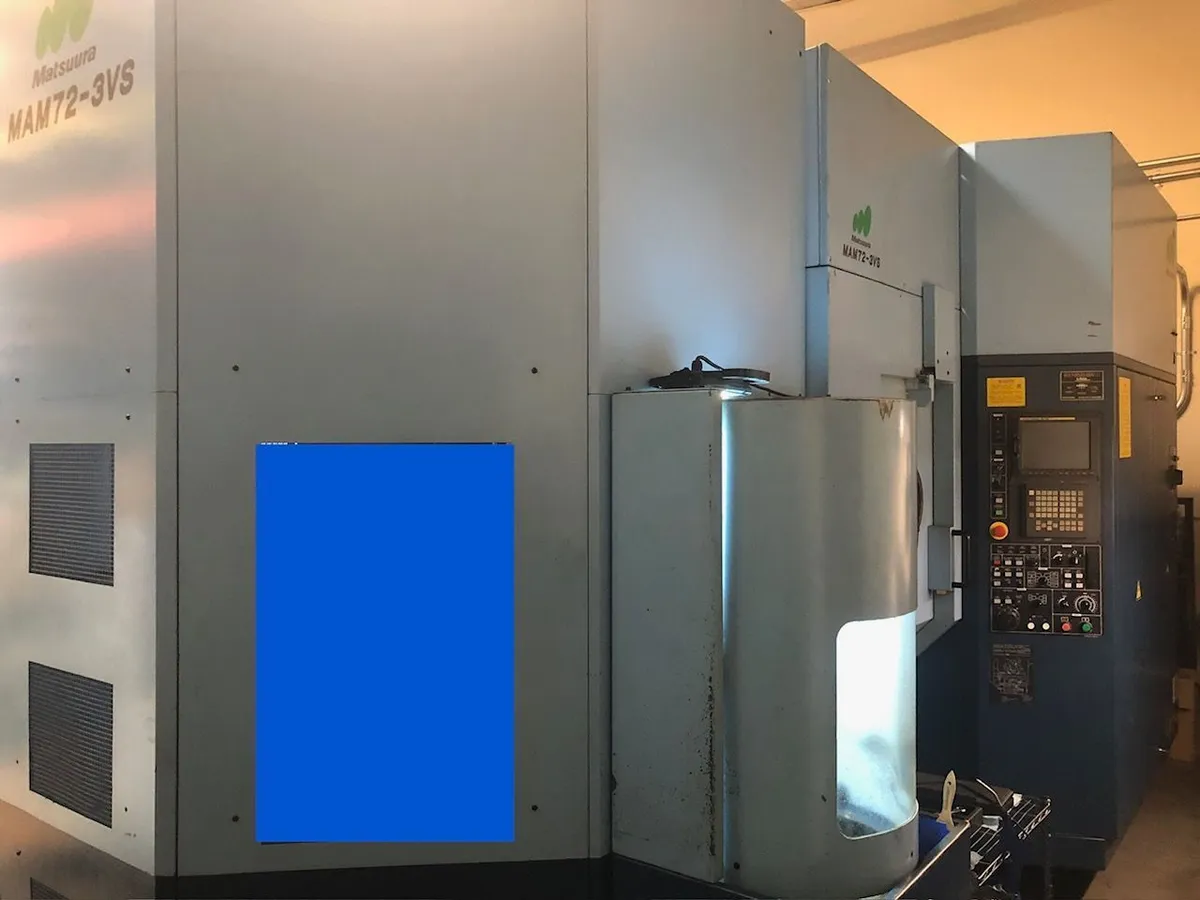

Fanuc 16i-M CNC Control
15,000 RPM, BT-40 Spindle

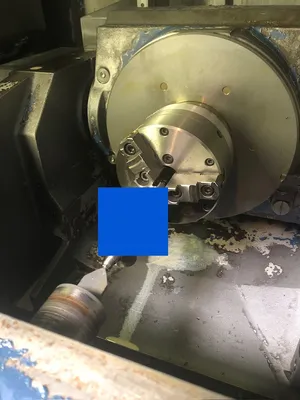

5th Axis Trunnion Table
Tool Setter
40 Pallets
240 ATC

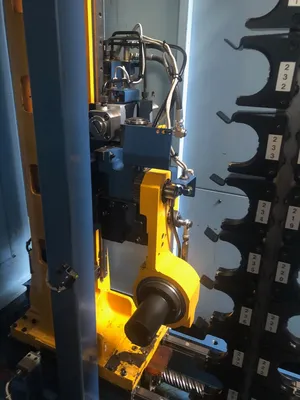

Hydraulic Programmable Tailstock
Mosnic Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
