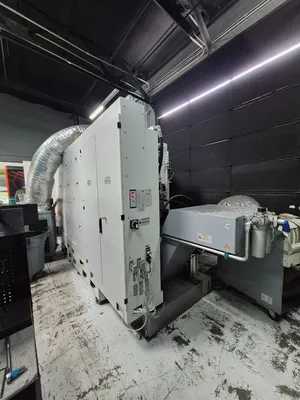

EMAG VL4 Vertical Turning Center
Have one to sell?
ConditionUsed
1 available

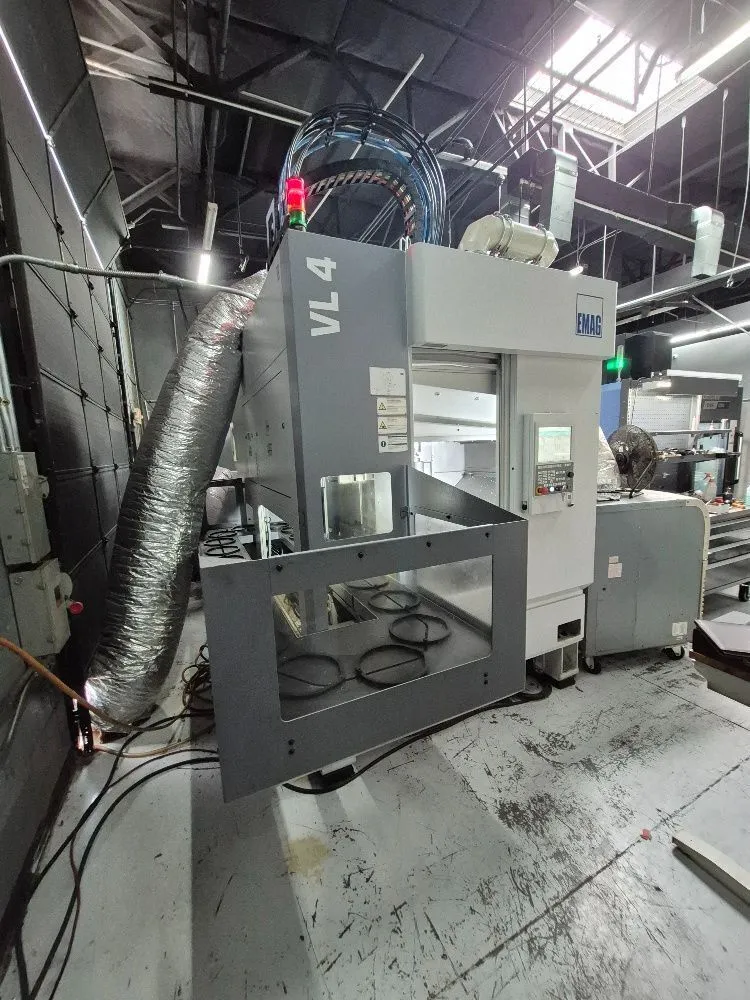

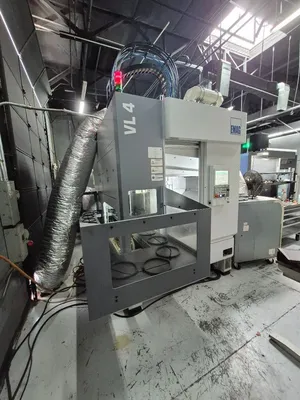

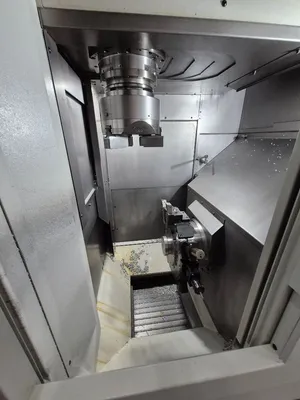

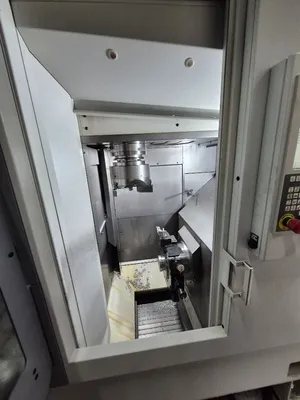

2020 EMAG VL4 Vertical Turning Center with Fanuc 32iB Control, 10" Chuck, 12 Station Turret Live Tooling, 20 Station Work Conveyor, Chip Conveyor.
Swing over bed.................11"
Max. Workpiece Diameter........8"
Machining Length...............8"
X-Axis Travel..................29"
Z-Axis Travel..................15.5"
Rapid Traverse X Axis..........2,363 IPM
Rapid Traverse Z Axis..........1,181 IPM
Spindle Motor..................34 HP
Spindle Torque.................207 Ft-Lbs.
Chuck Size.....................10"
Spindle Speed..................4,500 RPM

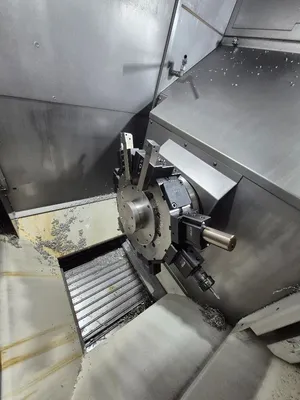

Number of Tools................12 Station Turret
Machine Weight.................20,000 LBS
Fanuc 32iB control
10" Schunk ROTA THW3 265-81 Chuck
High Pressure Coolant

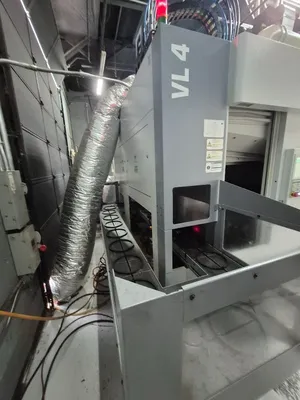

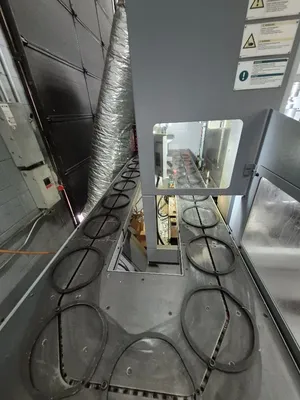

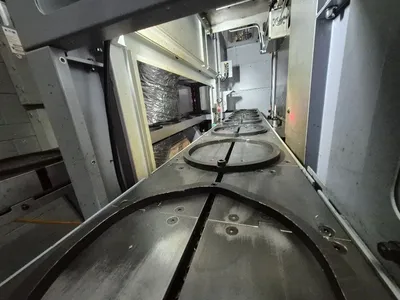

Component storage and transport conveyor – U-Type (GU 636)
Swarf conveyor

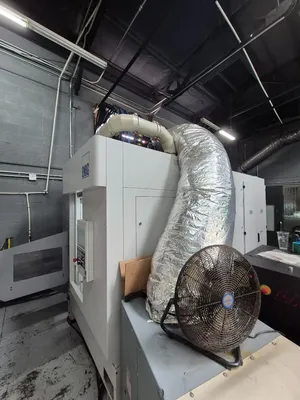

Coolant mist extractor unit
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
