Mazak Variaxis 500-5X 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

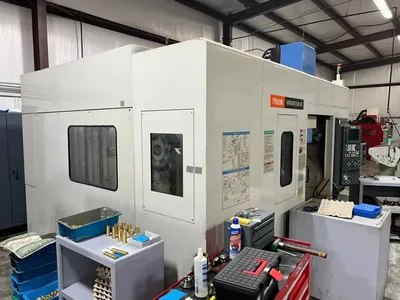

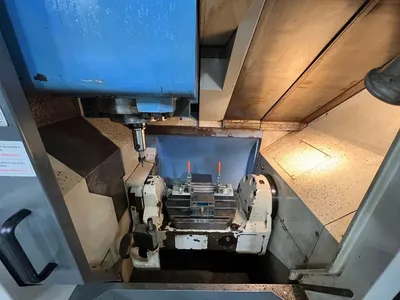

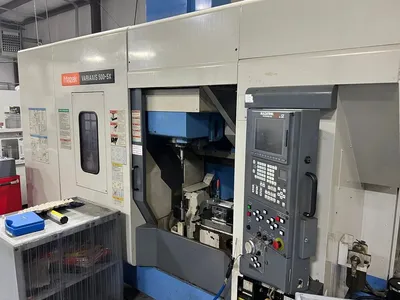

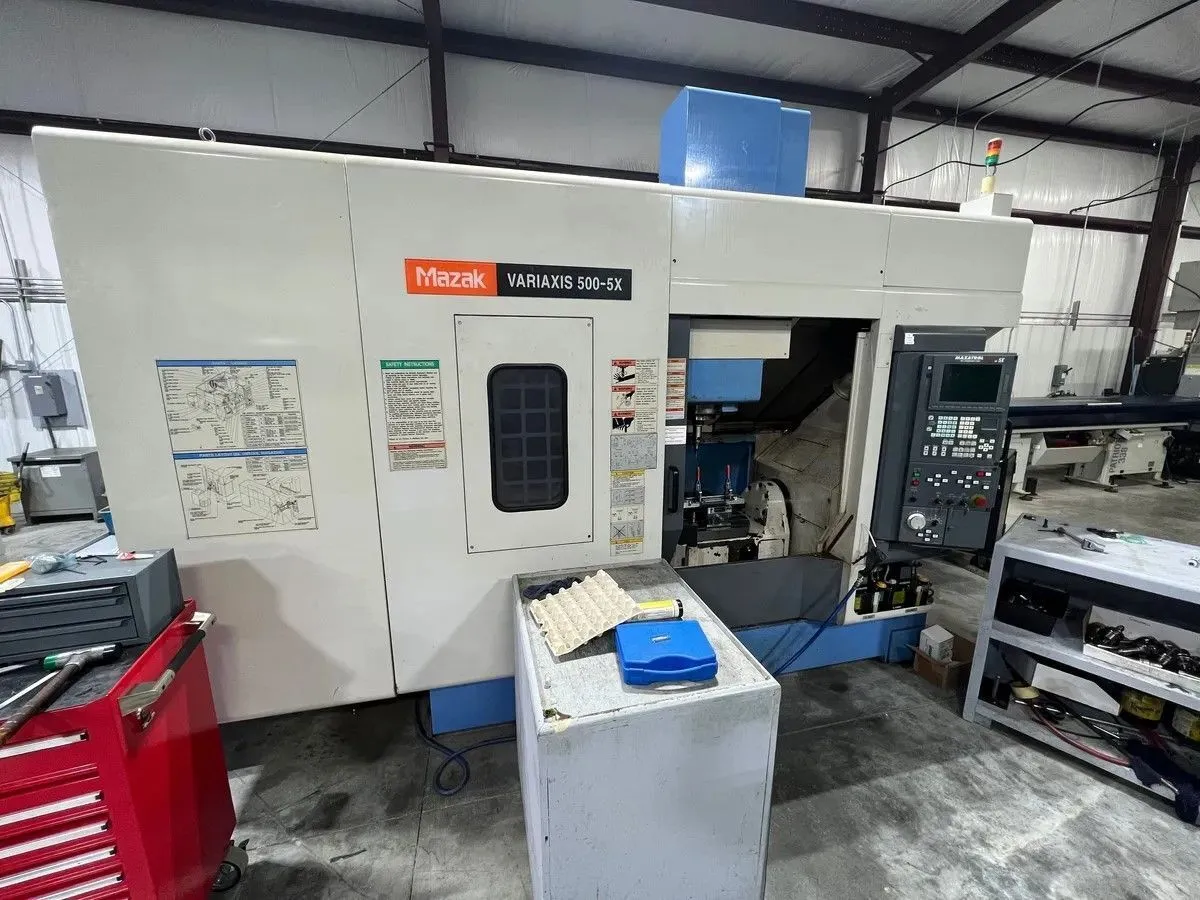

2002 Mazak Variaxis 500-5X 5-Axis Vertical Machining Center with 12,000 RPM, HSK Spindle, 120 ATC, Super Flow High Pressure Thru-Spindle Coolant, and Fusion 640M-5X Control.
Table Size....................19.69" x 15.75"
Max Table Load................661 LBS
Max Workpiece Size............19.5" x 15.95" x 15.95"
Table Top to Spindle Nose.....7.48" x 25.59"
X Axis Travel.................20.08"
Y Axis Travel.................20.08"
Z Axis Travel.................18.11"
A Axis Travel.................-120 to +30 degrees
C Axis Travel.................360,000 degrees
Spindle Motor.................30 HP
Spindle Speed.................12,000 RPM
Spindle Taper.................HSK
Tool Changer..................120 ATC
Rapid Rate....................1,969 IPM

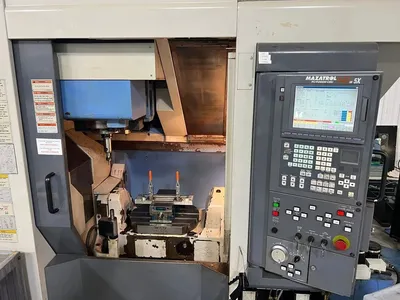

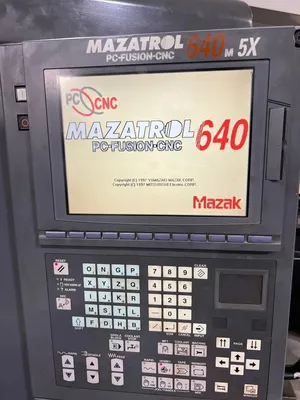

Fusion 640M-5X CNC Control
Cybertec CNC Option Package
Inch/Metric Conversion
Network Interface (For LAN & Modem)
12,000 RPM HSK Spindle
Through Spindle Coolant
Prep for MMS-B Optical Type MP10
Flood Coolant 64PSI, 8 Gal

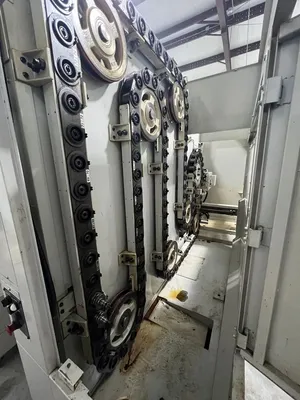

120 Station ATC
Nurbs Interpolation

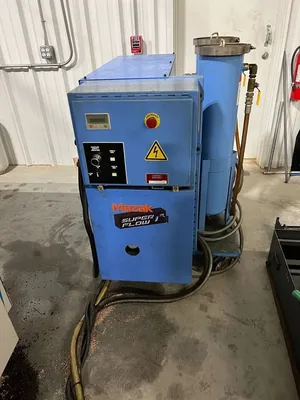

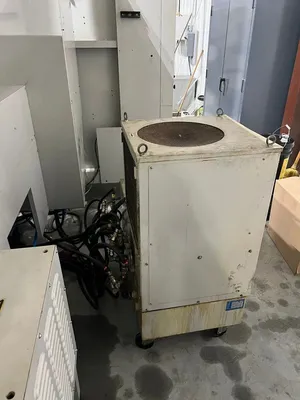

Mazak Super Flow High Pressure
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
