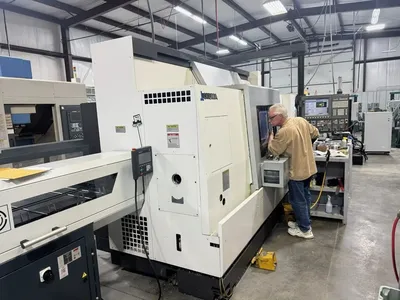

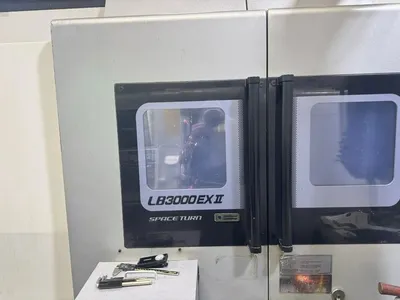

Okuma LB3000EXII-MYW

SWING OVER BED.....................22.83"
SWING OVER CROSS SLIDE.............18.5"
MAX CUTTING DIAMETER...............13.39"
MAX CUTTING LENGTH.................31.5"
DISTANCE BETWEEN CENTERS...........42.72"
X-AXIS TRAVEL......................10.24"
Y-AXIS TRAVEL......................4.53" (+2.76" / -1.77")
Z-AXIS TRAVEL......................39.76"
C-AXIS INDEX.......................0.001 Degree
SPINDLE MOTOR......................40 HP
SPINDLE NOSE.......................A2-8
SPINDLE BORE.......................3.59"
BAR CAPACITY.......................3.18"
SPINDLE SPEED......................4,200 RPM
SUB SPINDLE CHUCK SIZE (INCHES)....6"
SUB SPINDLE BORE...................2.44"
SUB SPINDLE MOTOR..................15 HP
SUB SPINDLE SPEED..................6,000 RPM

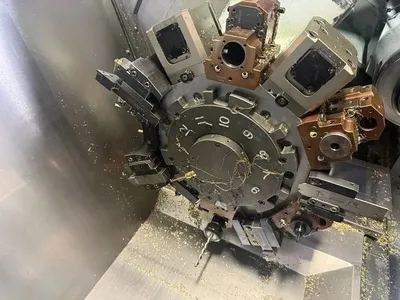

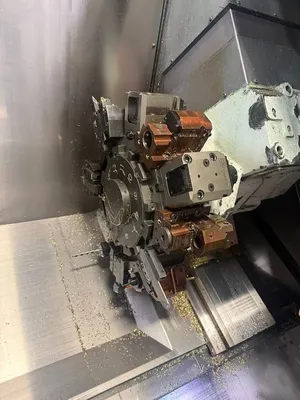

TURRET CAPACITY....................12
LIVE MILLING.......................6,000 RPM
MACHINE DIMENSIONS.................137" x 82" x 98"
MACHINE WEIGHT.....................14,520 Lbs
