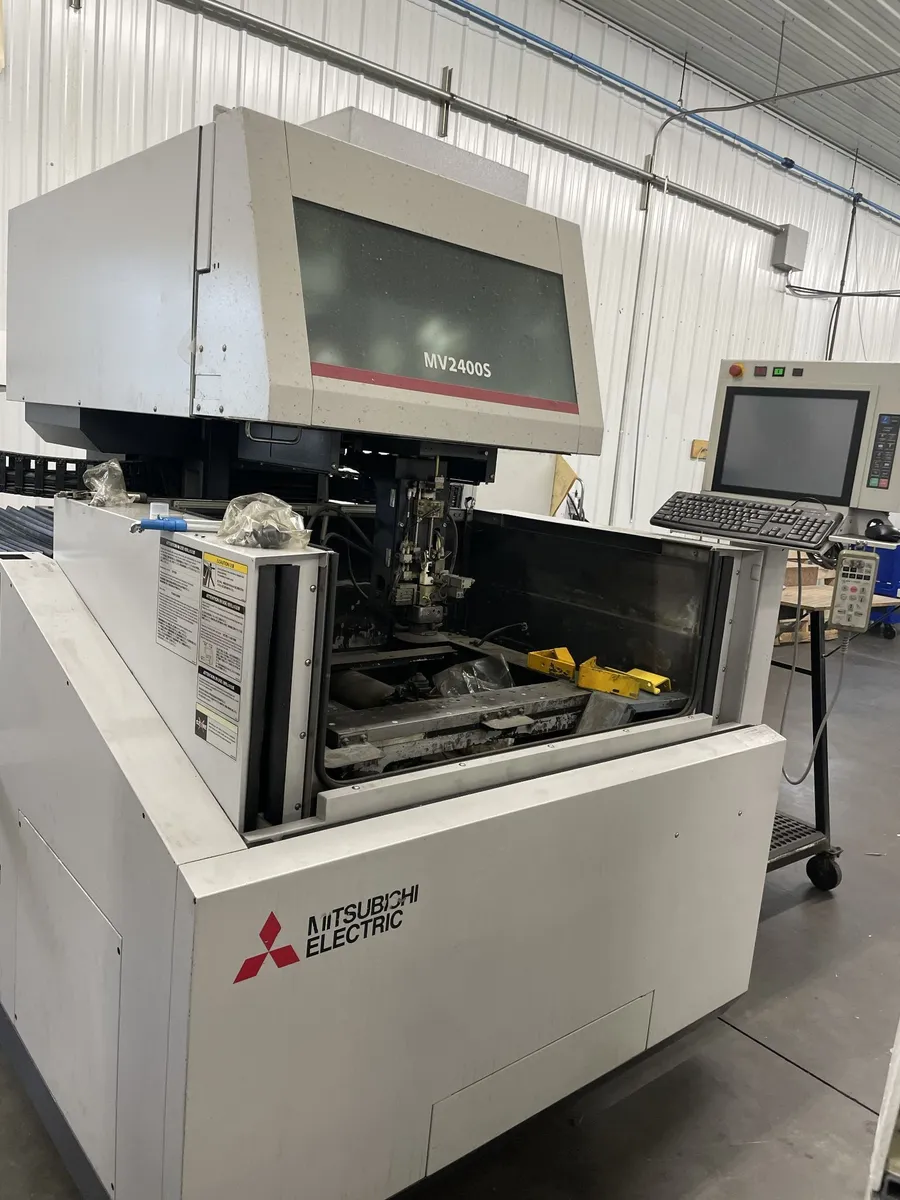

Mitsubishi MV2400S CNC Wire EDM

Max Workpiece Size..............41.3" x 32.3" x 12"
Travels (X,Y,Z).................23.6" x 15.7" x 12.2"
UV Travels......................+/- 3" x +/-3"
Taper Angle.....................15 Degrees at 10.2" Thickness / Max 45 Degree Angle at 2.4" Thickness (w Optional Guides)
Max Workpiece Weight............3,307 Lbs
Wire Diameter...................0.004 - 0.012"
Power Supply Amps...............V350-V
Dielectric Fluid Capacity.......227 Gallons
Table Rapid Traverse Rate.......51.2 IPM
Minimum Start Hole Diameter.....0.02"
Table Dimensions................33" x 25.2"
Minimum Drive Unit Resolution...0.000002"
Main Unit Dimensions............79" x 104" x 85"
Main Unit Approx Weight.........7,716 lbs

Components:

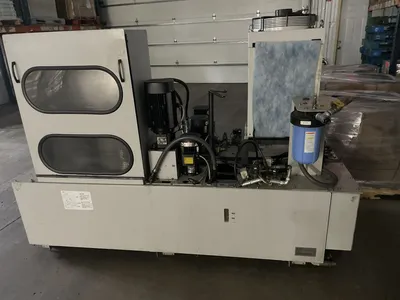

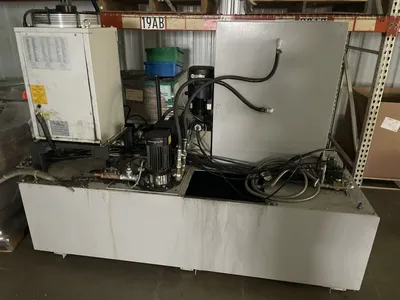

Dielectric Fluid System....35" x 92" x 60"
Control Cabinet............28" x 26" x 72"
Transformer................24" x 21" x 25"
